6.3 - Structure of the menu pages
When switched on, some presentation pages are displayed showing the
name of the product and the logo, after which the main menu appears.
The name of each menu, whichever it may be, is always at the top of the
display.
The following always appear on the main page:
Status: operating status (e.g. standby, go, Fault, input functions)
Revs per minute: value in [rpm]
Pressure: value in [bar] or [psi] depending on the set unit of measure.
Power: value in [kW] of the power absorbed by the device.
If the case occurs the following may appear:
Fault indications

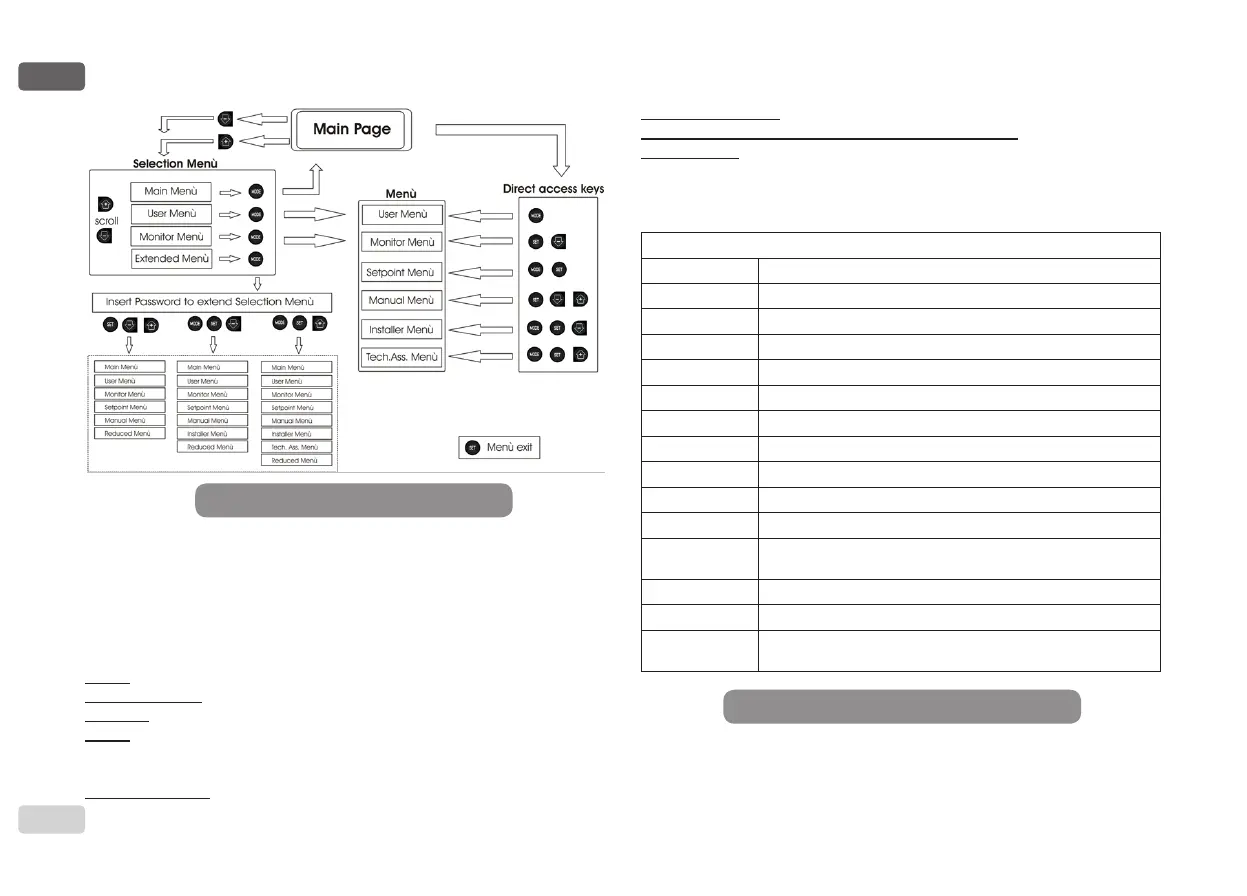

Figure 14: Diagram of possible menu accesses
Warning indications
Indications of the functions associated with the inputs
Specic icons
The error conditions are indicated in Table 2, page 76. The other displays
are indicated in Table 9.
Error or status conditions shown on the main page
Identifying code Description
GO Motor running
SB Motor stopped
DIS Motor status manually disabled
F1 Float function status / alarm
F3 System disable function status / alarm
F4 Low pressure signal function status / alarm
P1 Operating status with auxiliary setpoint 1
P2 Operating status with auxiliary setpoint 2
P3 Operating status with auxiliary setpoint 3
P4 Operating status with auxiliary setpoint 4
Com. icon with
number
Operating status in multi-pump communication with the address
indicated
Com. icon with E Error status of communication in the multi-pump system
EE Writing and reading the factory settings on EEprom
WARN.
Low voltage Warning due to lack of supply voltage
Table 9: Status and error messages on the main page
