Starter System
17-6

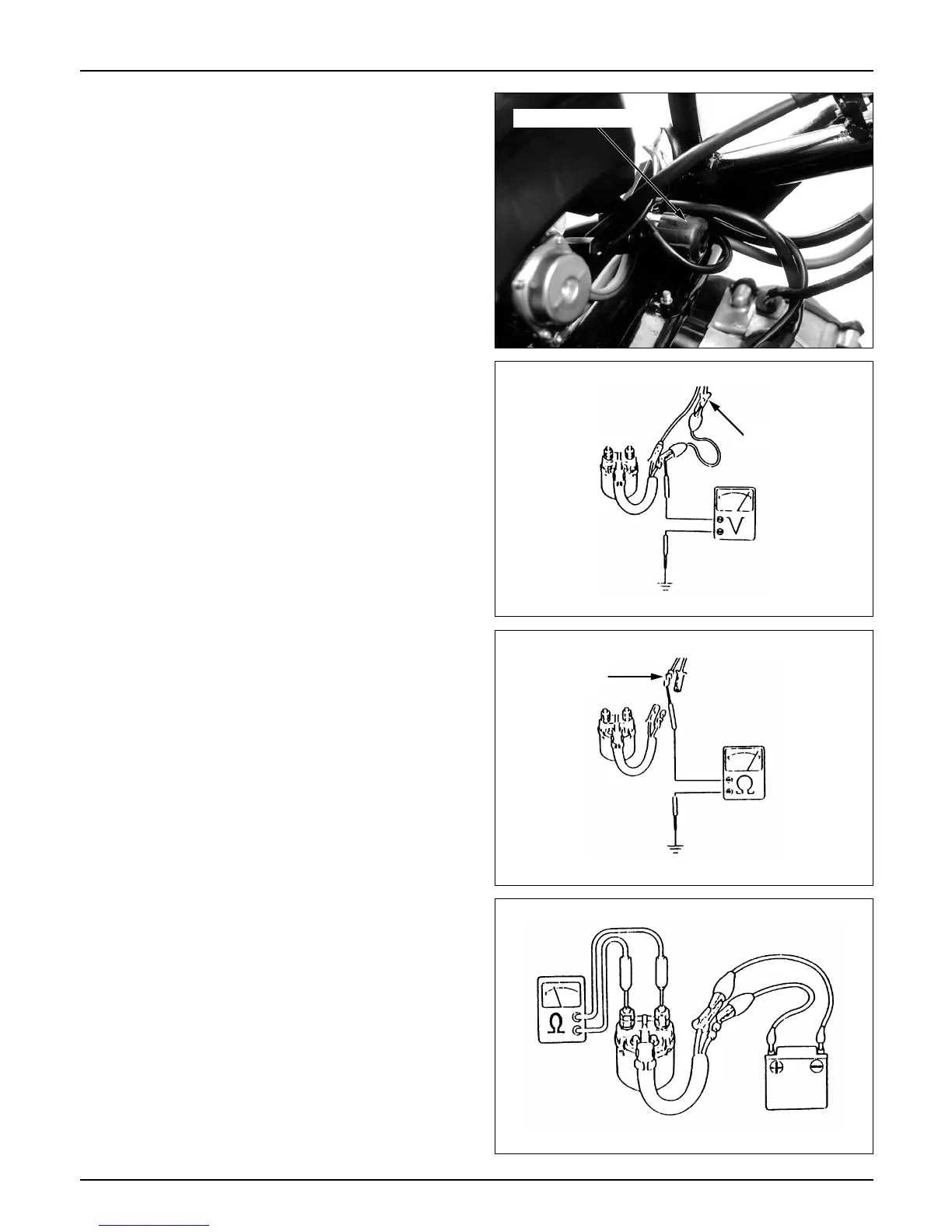

Starter Magnetic Switch
Inspection
● Turn on the main switch, and press the starter
button. If the starter magnet switch generates
operation signal tone at this time, it indicates
satisfactory condition.
Voltage Check
● Measure the voltage between the yellow/red
wire (+) of the starter magnetic switch and the
vehicle earth.
● Turn main switch on and press the starter switch.
If there is battery voltage displayed, it indicates
operation condition is satisfactory.
Earth Circuit Inspection
● Disconnect the green/yellow wire connector of
the starter magnetic switch. If power is
connected between the harness terminal and the
vehicle earth, it indicates satisfactory condition.
Operation Inspection
● Disconnect the magnetic switch wire connector.
If power is connected between terminals, as
shown in the figure, when the yellow/red wire is
connected to the positive (+) battery terminal and
the green/yellow wire to the negative (-) battery
terminal, it indicates the switch is functioning
satisfactorily.
Starter magnetic switch
Yellow/red wire
Green/red wire
To Next Page
