Fuel System
5-4

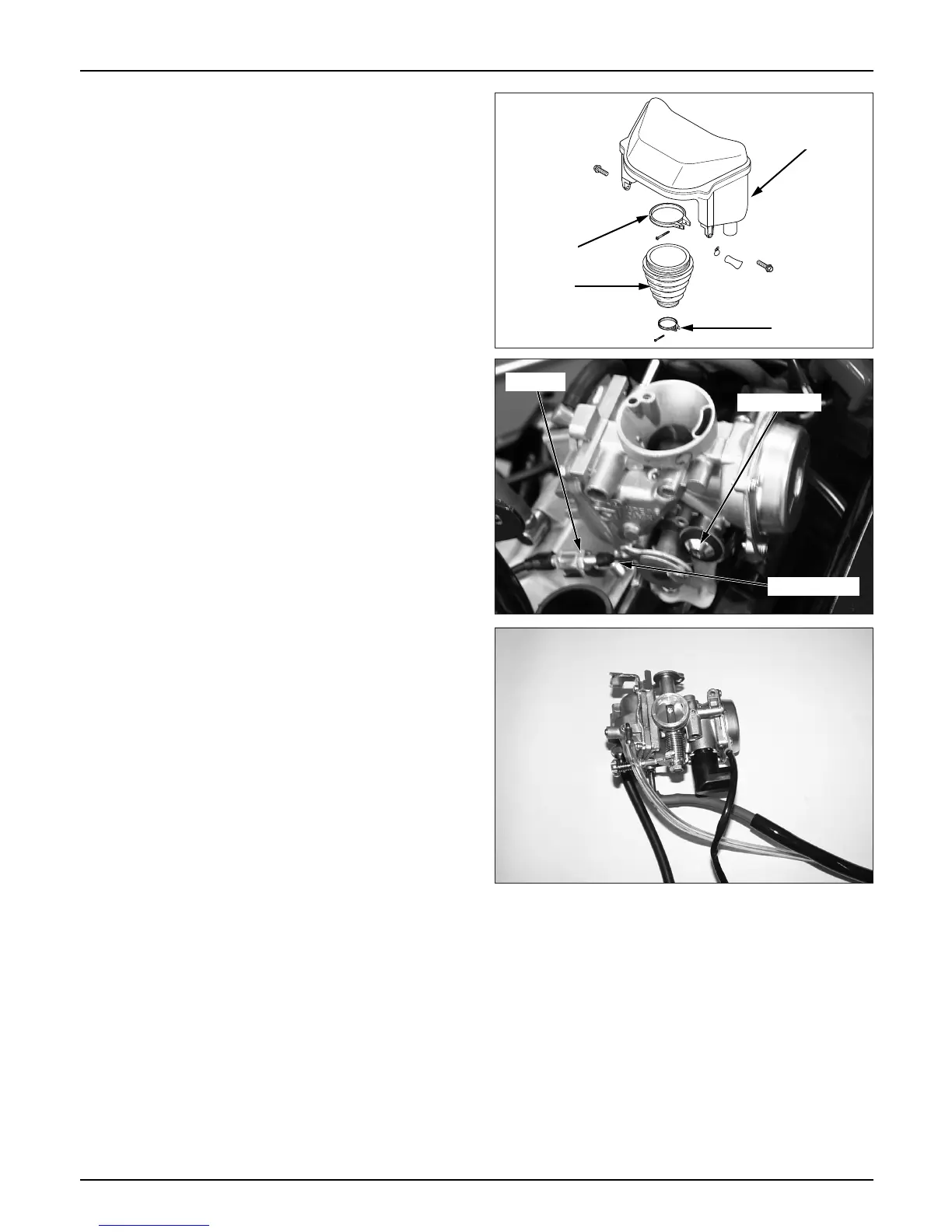

Air Cleaner Removal
● Remove the luggage box. (⇨ 4-5)
● Loosen the 2 R/L bolts attached to the frame body.
●
Loosen the band attached to the lower part(carburetor)
of the intake coupling and remove the air cleaner.
● Install in the reverse order of removal.
Carburetor
Remove
● Remove the air cleaner. (⇨ 5-4)
● Loosen the throttle cable lock nut, and remove
the throttle cable from the carburetor.
● Remove the auto cock cord.
● Loosen the set plate setting screw.
● Loosen the chamber connecting band and the
carburetor insulator band.
● Remove the carburetor.
Vacuum Chamber Removal
● Remove the fuel tube and drain tube.
Air cleaner
Band
Intake
coupling
Band
Lock nut
Setting screw
Throttle cable
To Next Page
