Fuel System
5-8

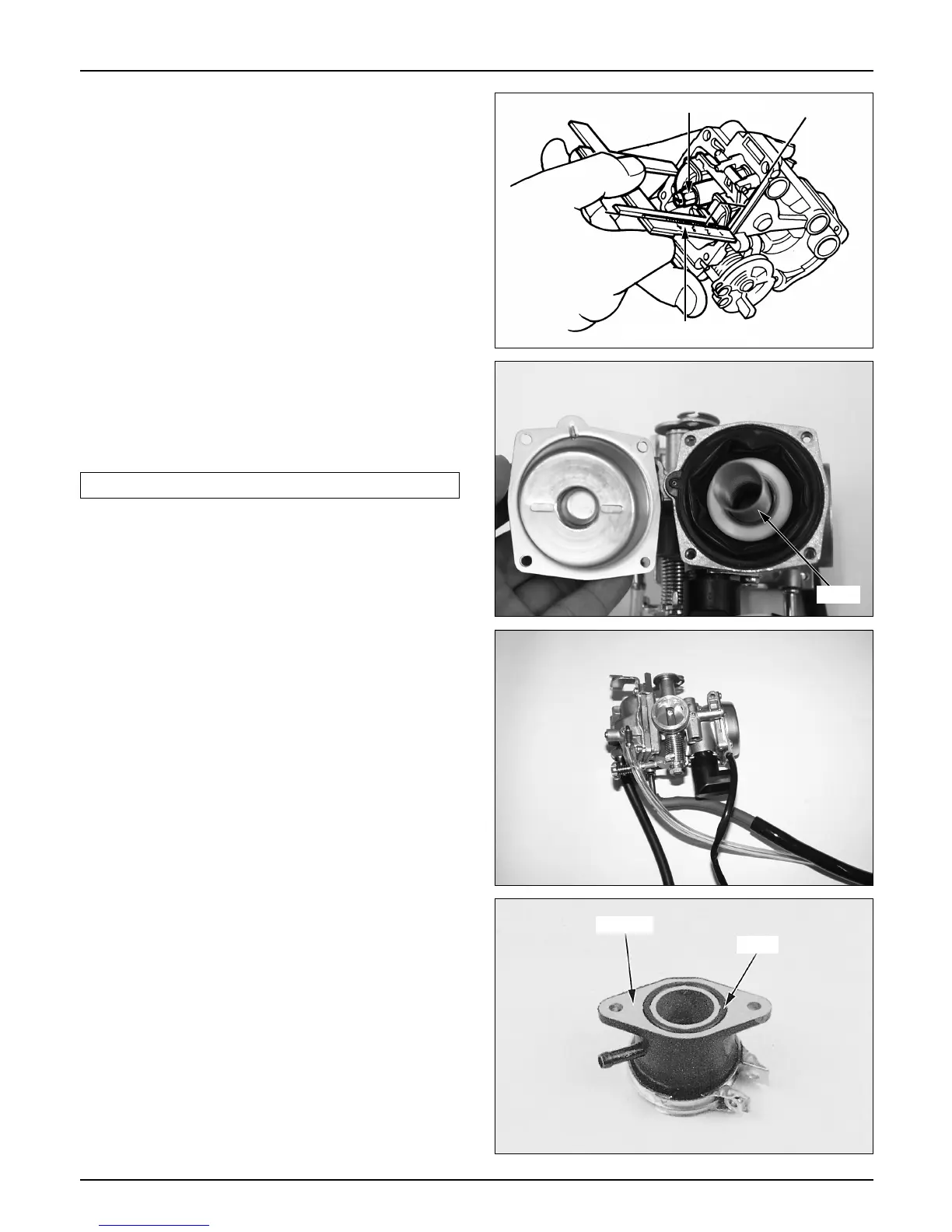

Float Level
● Install the float valves, and float pins.
● Check the float valve level.
Float level: 13mm
● Assemble the float chamber.
Vacuum Chamber Assembly
● Insert the jet needle and spring to the piston, and
install the holder.
NOTE
● Install the compression spring and vacuum
chamber.
Carburetor Installation
● Assemble the air vent, fuel tubes, and drain tubes
to the carburetor.
Match the diaphragm with the body notch.
● Check the insulator O-ring for wear or damage,
and install the insulator.
Insulator
O-ring
Main jet
Float level gauge
Spring
To Next Page
