L. Crank Case Cover/Kick Starter/Continuously Variable Transmission

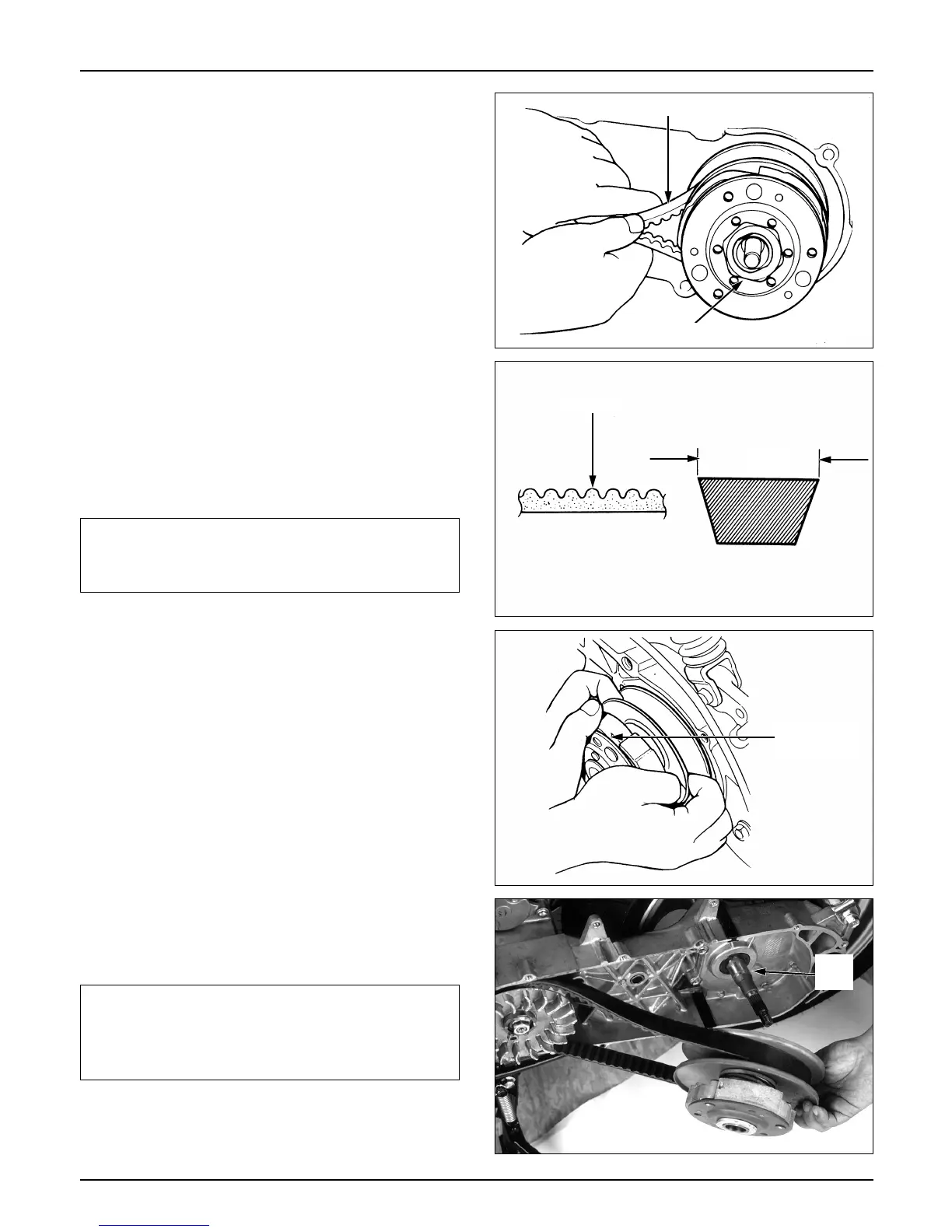

Drive Belt Inspection
● Check the drive belt for cracks, deterioratect and
abnormal wear. Replace the defective drive belt.
● Check the drive belt width.
Service limit: 20.5mm (0.8071in)
NOTE
● Remove the drive belt from the clutch / driven
pulley, as shown in the figure.
Drive Belt Assembly
● Temporarily assemble the clutch / driven pulley
to the drive shaft.
● As shown in the right side figure, turn the
movable driven face clockwise, and assemble the
drive belt to the driven pulley while widening
the driven pulley belt contact part.
● Assemble the clutch / driven pulley to the drive
shaft.
NOTE
7-8
Make sure that the movable drive face do not
return to the original position until the
clutch/driven pulley are completely assembled
to the drive shaft.
Use Daelim genuine parts.
Be careful not to apply oil to the belt pulley
contact.
Drive
shaft
Drive belt
Clutch/driven pulley
Width
Movable
driven face
Teeth type
