Service manual CP-785A
- 25 -
4-5 TDA6107Q
The TDA6107Q includes three video output amplifiers in one plastic DIL-Bent-SIL 9-pin medium
power package, using high voltage DMOS technology, and is intended to drive the three cathodes of a
colour CRT directly. To obtain maximum performance, the amplifier should be used with black-current
control.
Features
- Typical bandwidth of 5.5 MHz for an output signal of 60 Vpp
- High slew rate of 900V/ms
- No external components required
- Very simple application
- Single supply voltage of 200V
- Internal reference voltage of 2.5 V
- Fixed gain of 50.
- Black-current stabilisation (BCS) circuit
- Thermal protection

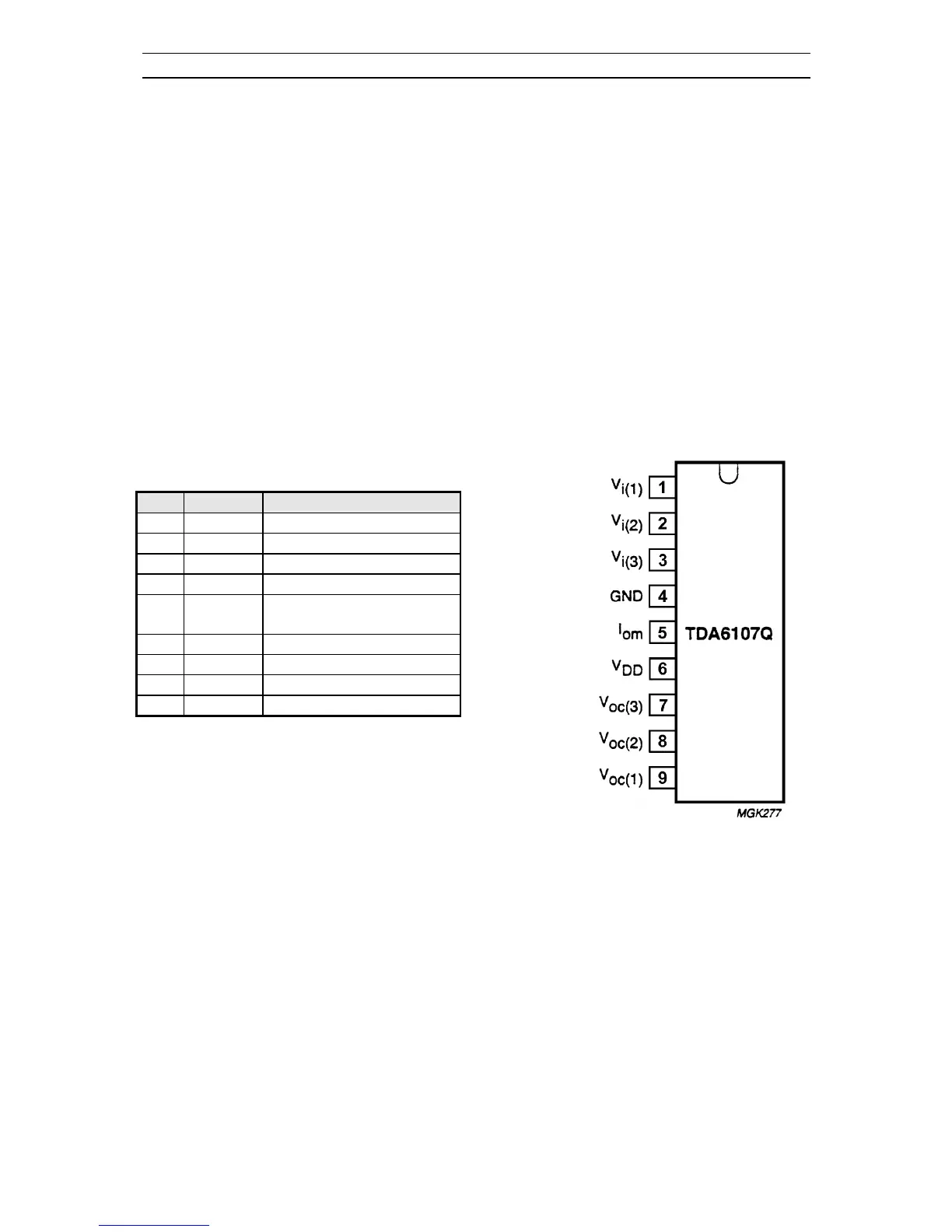

Pin description
Pin
Symbol Description
1 V
i(1)
inverting input 1
2 V
i(2)
inverting input 2
3 V
i(3)
inverting input 3
4 GND ground (fin)
5 I
om
black current measurement
output
6 V
DD
supply voltage
7 V
OC(3)
cathode output 3
8 V
OC(2)
cathode output 2
9 V
OC(1)
cathode output 1
