Service manual CP-785A
- 27 -
4-7 STR - F6654
4-7-1 General description
The STR-F6654 is an hybrid IC with a build-in MOSFET and control IC, designed for flyback
converter type switch mode power supply applications.
4-7-2 Features
- Small SIP fully isolated molded 5 pins package
- Many protection functions :
* Pulse-by-pulse overcurrent protection (OCP)
* Overvoltage protection with latch mode (OVP)
* Thermal protection with latch mode (TSD)

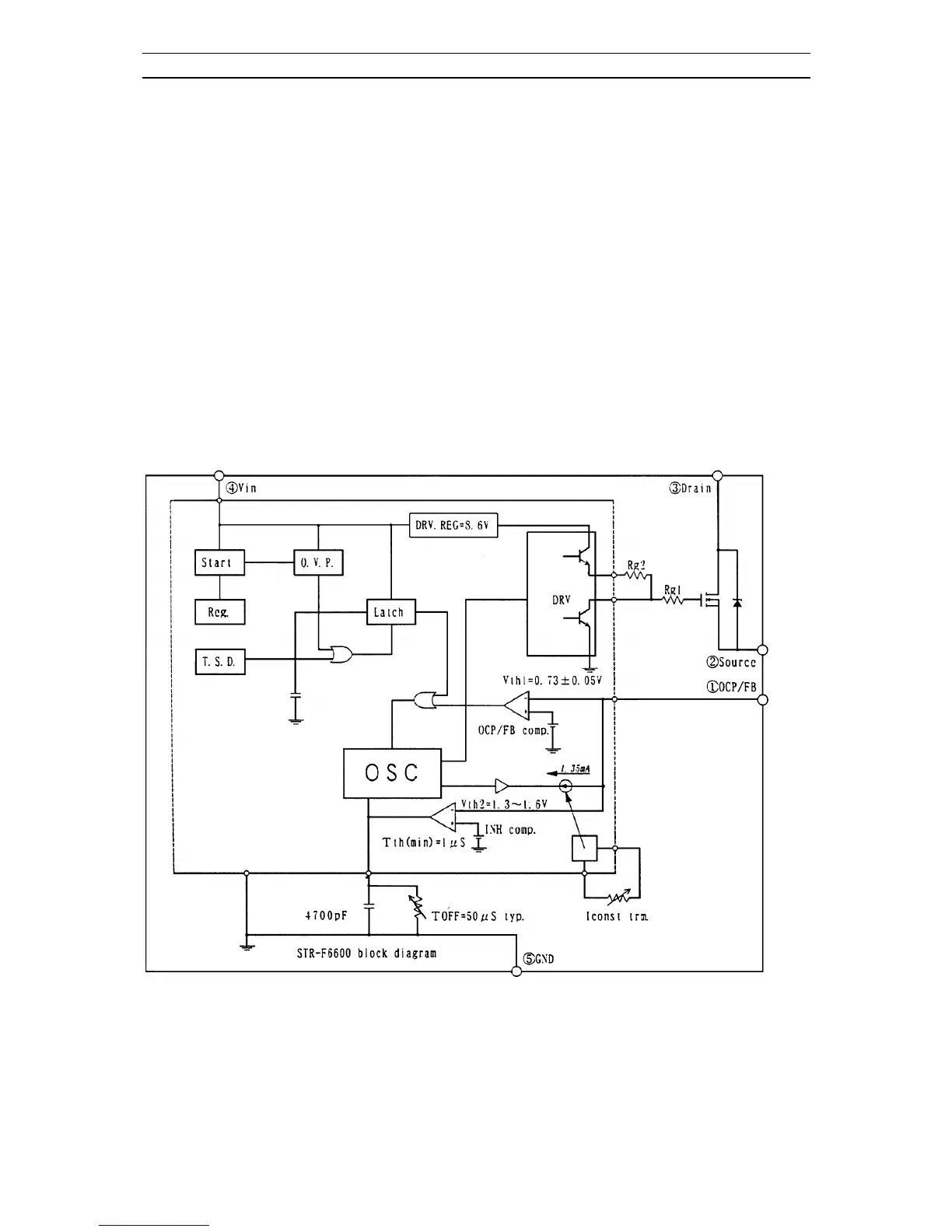

4-7-3 Block diagram
