17
ETHERNET CABLE CONNECTIONS

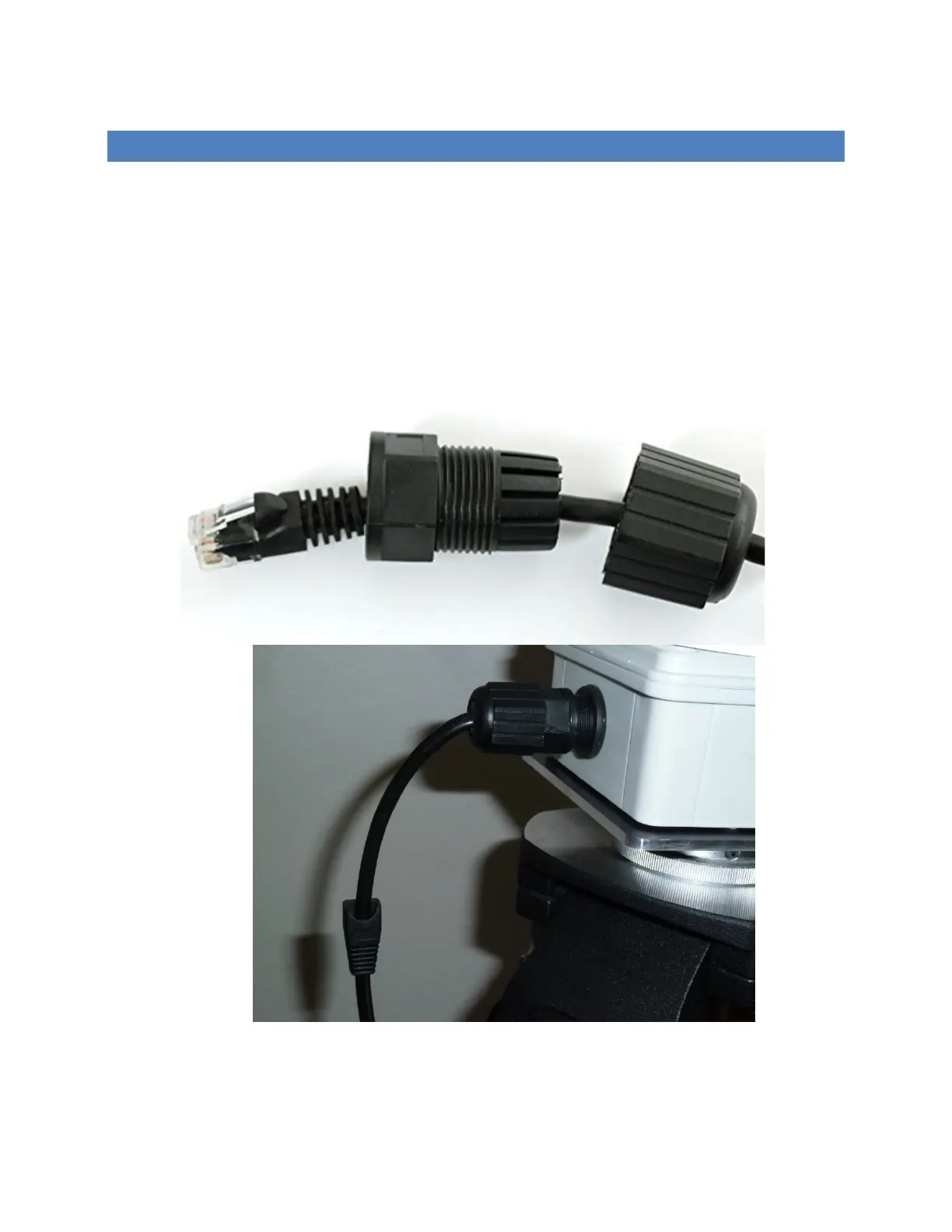

1. Connect the waterproof Ethernet cable to the connector on the mounting box as
shown below. To do this, start with all parts of the connector housing unscrewed.
Plug the Ethernet cable connector into the box connector until the latch snaps in.
Move the larger connector housing toward the connector and screw it all the way
onto the box connector. Verify that the rubber cable gland is fully inserted into
the back of the housing. Then move the farther portion of the connector housing
toward the cable box and screw it onto the connector body. Be careful not to
cross-thread this connector. If it does not screw in exactly straight, then unscrew
it and try again.
2. Your PoE Injector passes the Ethernet signals thru it to your router while
“injecting” DC power on two unused cable wire pairs to power the camera. To
