Daikin Altherma 3 M User Manual

5 | Operation
User reference guide
17
EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
4P620245-1 – 2020.06
5 Operation
INFORMATION
Cooling is only applicable in case of reversible models.

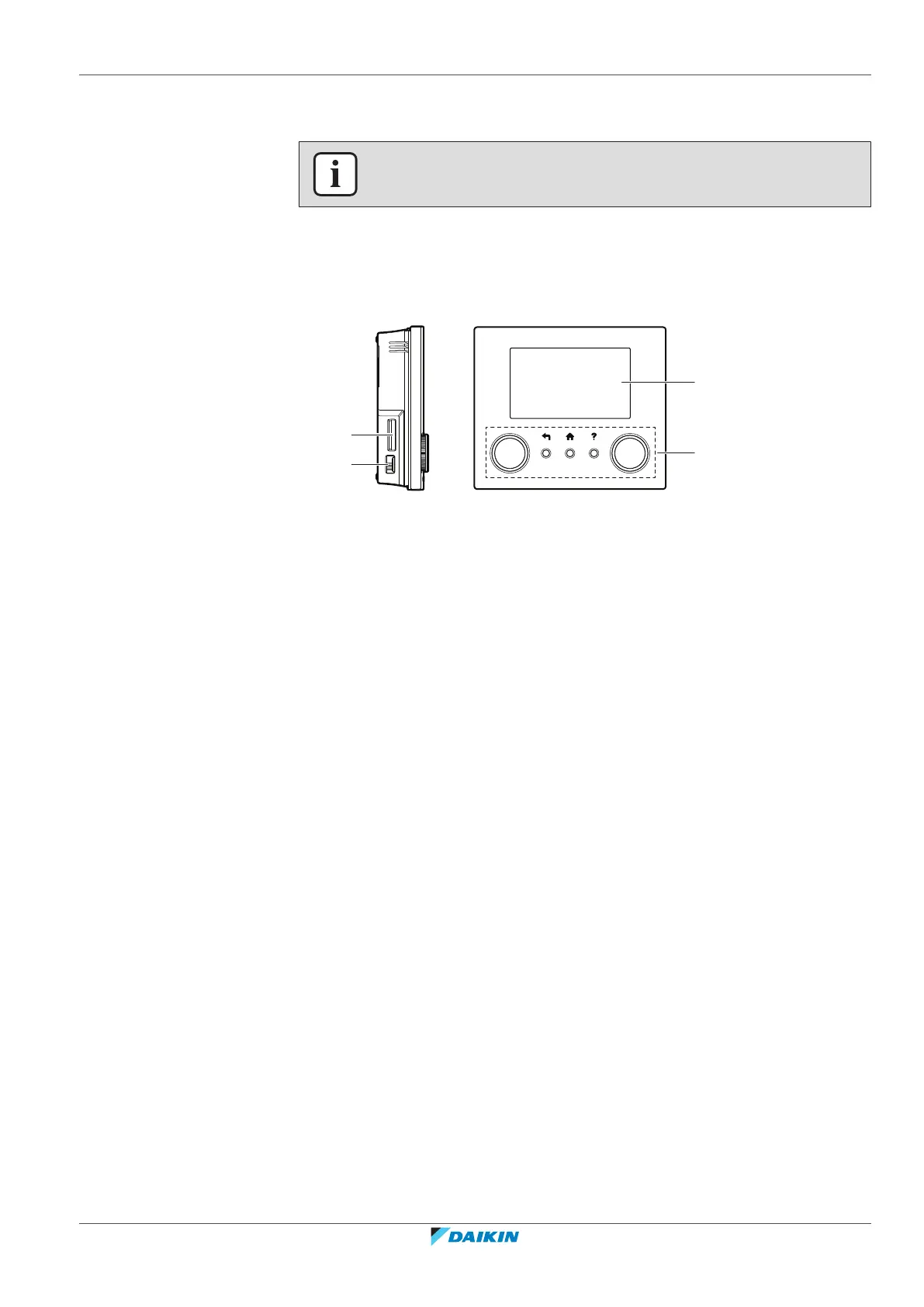

5.1 User interface: Overview
The user interface has the following components:
a
b
c
d
a Slot for WLAN cartridge
b USB connector
c LCD screen
d Dials and buttons
Slot for WLAN cartridge
With the WLAN cartridge, the installer can connect the system to the internet. As
user you can then control the system via the Daikin Residential Controller app.
Note: This slot cannot be used for SD cards.
USB connector
With a USB memory stick, the installer can:
▪ Update the software. This requires a correct config file on the USB memory stick.
▪ Import the settings generated by E-Configurator (Heating Solutions Navigator)
from the USB memory stick to the user interface (MMI). This requires a correct
config file on the USB memory stick.
▪ Export the current settings (i.e. field settings, MMI EEPROM settings, schedule
timers) from the user interface (MMI) to the USB memory stick.
LCD screen
The LCD screen has a sleeping function. After 15min of non-interaction with the
user interface, the screen darkens. Pressing any button or rotating any dial
awakens the display.
Dials and buttons
You use the dials and buttons:
▪ To navigate through the screens, menus and settings of the LCD screen
▪ To set values

Daikin Altherma 3 M Specifications

General

Heating Capacity	4.0 - 16.0 kW
Cooling Capacity	3.5 - 14.0 kW
Refrigerant	R-32
Energy Efficiency Class	A+++
Operating Range (Heating)	-25°C to 35°C
Operating Range (Cooling)	10°C to 46°C
Type	Air to Water Heat Pump
Sound Power Level	58-65 dB(A) (depending on model)
