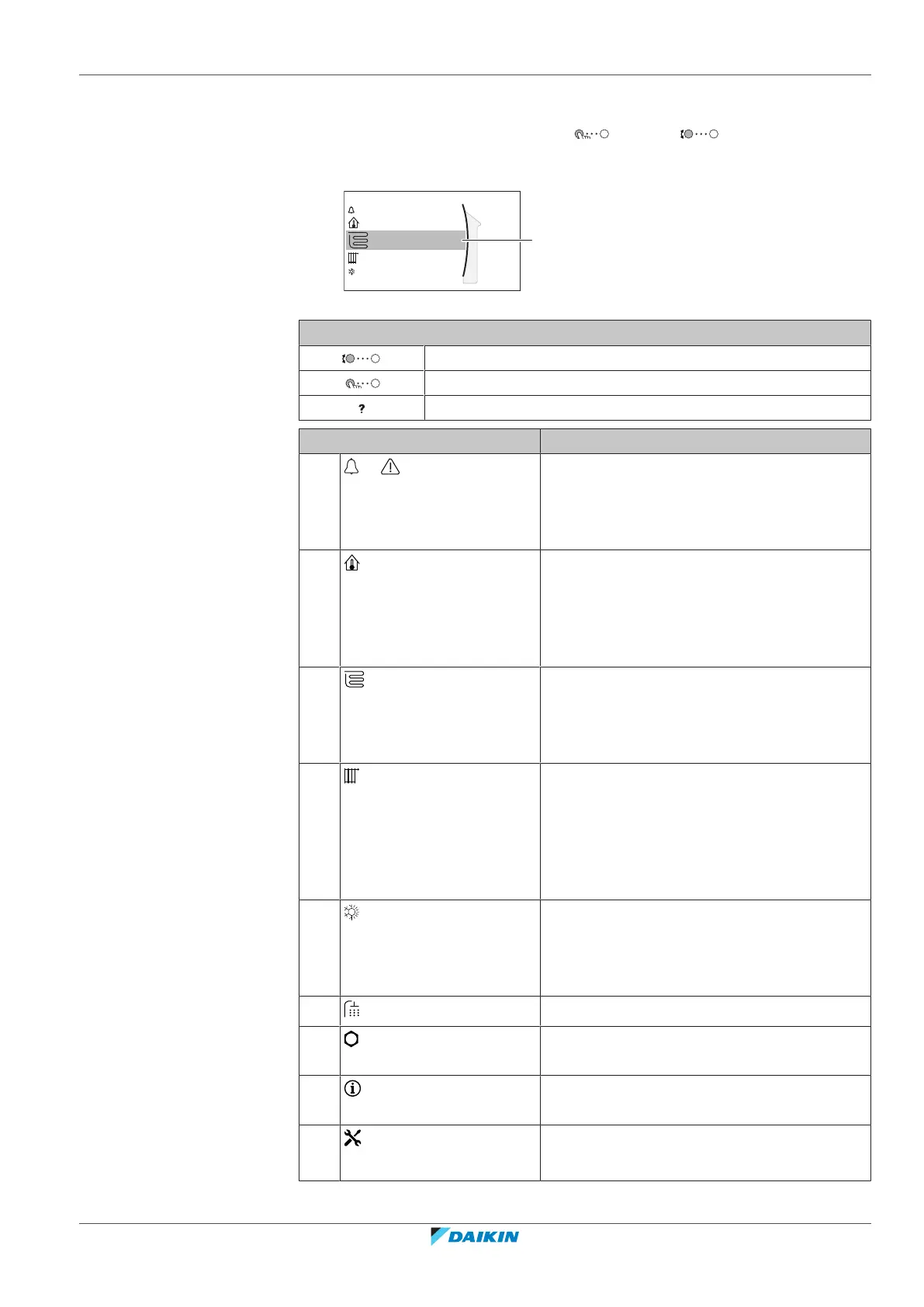

5.3.2 Main menu screen
Starting from the home screen, press ( ) or turn ( ) the left dial to open
the main menu screen. From the main menu, you can access the different setpoint
screens and submenus.
a
2
Main zone
Additional zone
Room
Malfunctioning
Space heating/cooling
a Selected submenu
Possible actions on this screen
Go through the list.
Enter the submenu.
Enable/disable breadcrumbs.
Submenu Description
[0]
or Malfunctioning
Restriction: Only displayed if a malfunction
occurs.
See "8.1To display the help text in case of a
malfunction"[457] for more information.
[1]
Room
Restriction: Only displayed if a dedicated
Human Comfort Interface (BRC1HHDA used as
room thermostat) is controlling the outdoor
unit.
Set the room temperature.
[2]
Main zone
Shows the applicable symbol for your main
zone emitter type.
Set the leaving water temperature for the
main zone.
[3] Additional zone Restriction: Only displayed if there are two
leaving water temperature zones. Shows the
applicable symbol for your additional zone
emitter type.
Set the leaving water temperature for the
additional zone (if present).
[4]
Space heating/
cooling
Shows the applicable symbol of your unit.
Put the unit in heating mode or cooling mode.
You cannot change the mode on heating only
models.
[5]
Tank
Set the domestic hot water tank temperature.
[7]
User settings
Gives access to user settings such as holiday
mode and quiet mode.
[8]
Information
Displays data and information about the
outdoor unit.
[9]
Installer settings
Restriction: Only for the installer.
Gives access to advanced settings.

Daikin Altherma 3 M Specifications

General

Heating Capacity	4.0 - 16.0 kW
Cooling Capacity	3.5 - 14.0 kW
Refrigerant	R-32
Energy Efficiency Class	A+++
Operating Range (Heating)	-25°C to 35°C
Operating Range (Cooling)	10°C to 46°C
Type	Air to Water Heat Pump
Sound Power Level	58-65 dB(A) (depending on model)
