Daikin Altherma 3 M User Manual

5 | Operation
User reference guide
20
EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
4P620245-1 – 2020.06

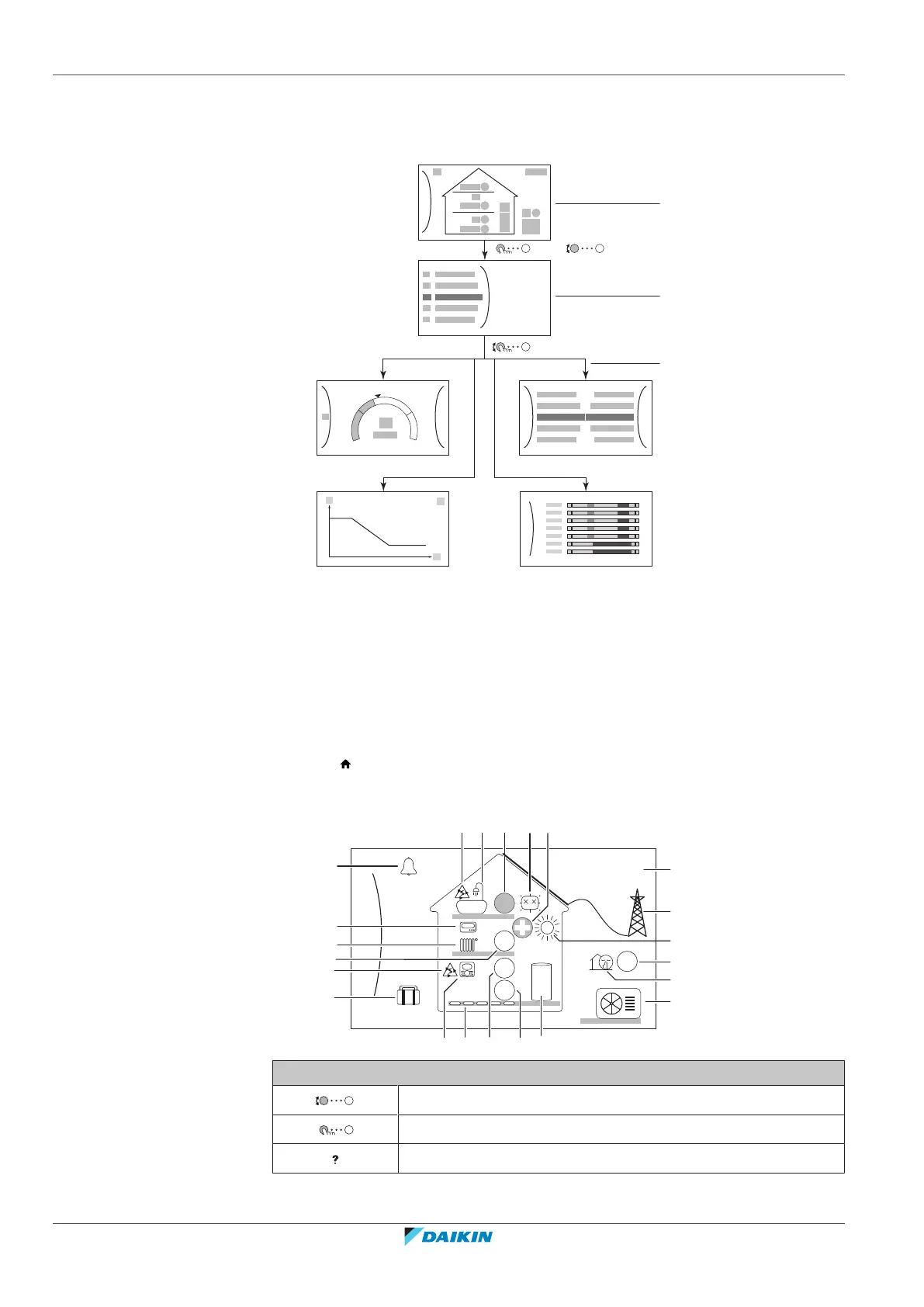

5.3 Possible screens: Overview
The most common screens are as follows:
+
–
a
OR
b
c
c2
c4
c1
c3
a Home screen
b Main menu screen
c Lower level screens:
c1: Setpoint screen
c2: Detailed screen with values
c3: Screen with weather-dependent curve
c4: Screen with schedule
5.3.1 Home screen
Press the button to go back to the home screen. You see an overview of the unit
configuration and the room and setpoint temperatures. Only symbols applicable
for your configuration are visible on the home screen.
6
26 Feb 2020
22:19
55
21
35
j
e2
l
k1
k2
k3
45
d
e1
g3
g2
g1
f
i2 i3 i4i1
a2a1e3 b c
h
Possible actions on this screen
Go through the list of the main menu.
Go to the main menu screen.
Enable/disable breadcrumbs.

Daikin Altherma 3 M Specifications

General

Heating Capacity	4.0 - 16.0 kW
Cooling Capacity	3.5 - 14.0 kW
Refrigerant	R-32
Energy Efficiency Class	A+++
Operating Range (Heating)	-25°C to 35°C
Operating Range (Cooling)	10°C to 46°C
Type	Air to Water Heat Pump
Sound Power Level	58-65 dB(A) (depending on model)
