5 | Operation
User reference guide
47
EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
4P620245-1 – 2020.06

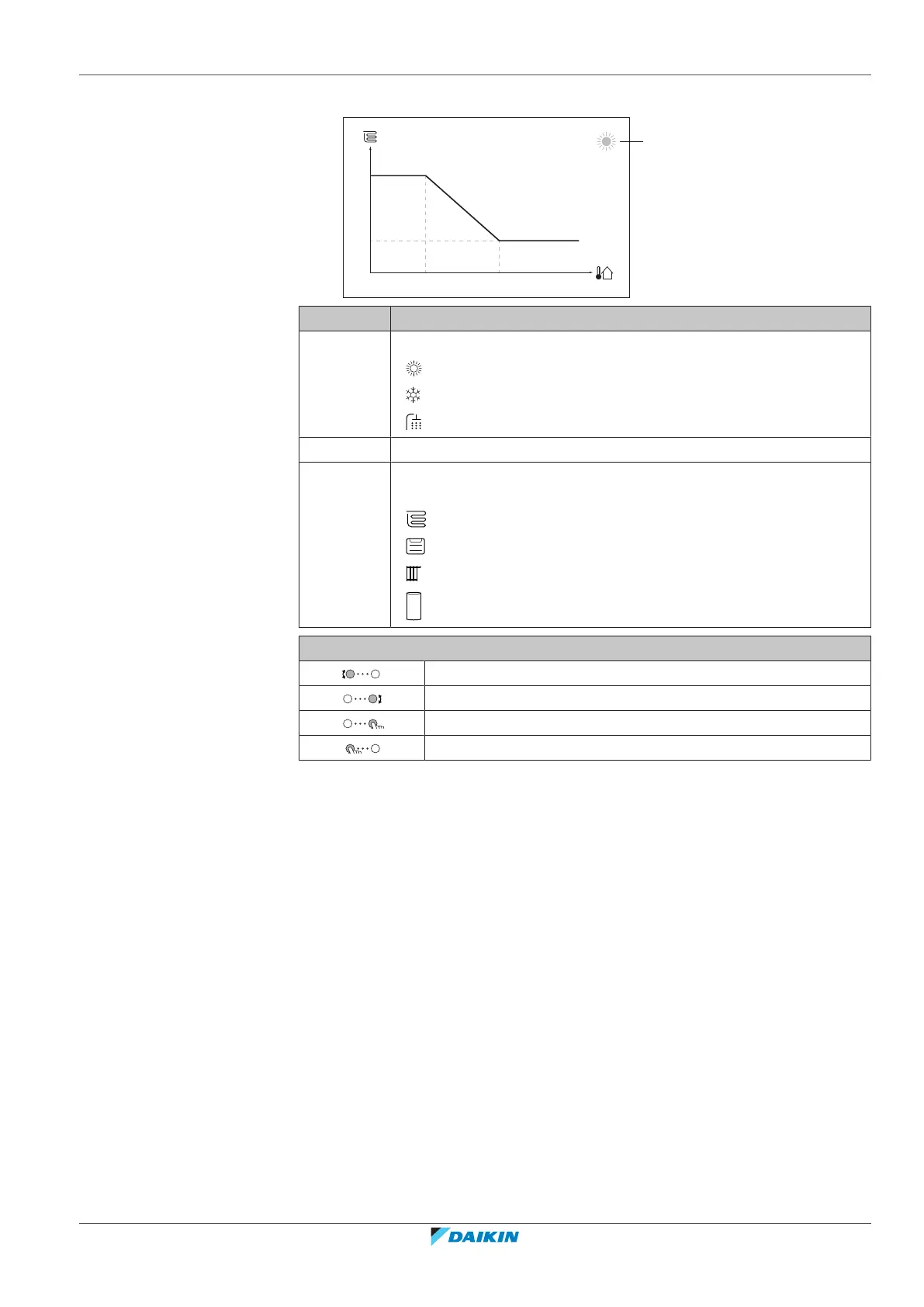

Example
Y1
Y2
X1 X2
a
Item Description
a Selected weather dependent zone:
▪ : Main zone or additional zone heating
▪ : Main zone or additional zone cooling
▪ : Domestic hot water
X1, X2 Examples of outdoor ambient temperature
Y1, Y2 Examples of desired tank temperature or leaving water temperature.
The icon corresponds to the heat emitter for that zone:
▪ : Underfloor heating
▪ : Fan coil unit
▪ : Radiator
▪ : Domestic hot water tank
Possible actions on this screen
Go through the temperatures.
Change the temperature.
Go to the next temperature.
Confirm changes and proceed.
5.9.3 Slope-offset curve
Slope and offset
Define the weather-dependent curve by its slope and offset:
▪ Change the slope to differently increase or decrease the temperature of the
leaving water for different ambient temperatures. For example, if leaving water
temperature is in general fine but at low ambient temperatures too cold, raise
the slope so that leaving water temperature is heated increasingly more at
decreasingly lower ambient temperatures.
▪ Change the offset to equally increase or decrease the temperature of the leaving
water for different ambient temperatures. For example, if leaving water
temperature is always a bit too cold at different ambient temperatures, shift the
offset up to equally increase the leaving water temperature for all ambient
temperatures.
Examples
Weather-dependent curve when slope is selected:

Daikin Altherma 3 M Specifications

General

Heating Capacity	4.0 - 16.0 kW
Cooling Capacity	3.5 - 14.0 kW
Refrigerant	R-32
Energy Efficiency Class	A+++
Operating Range (Heating)	-25°C to 35°C
Operating Range (Cooling)	10°C to 46°C
Type	Air to Water Heat Pump
Sound Power Level	58-65 dB(A) (depending on model)
