Rooop Unit Applicaons
This secon covers applicaons for rooop units.
Roof Top Unit – Two-Stage Gas Heat and Two-Stage DX Cooling
• Fan status switch (FST) and discharge air temperature (DAT)
and outdoor air temperature (OAT) sensors are oponal.
They are typically used only when the BACnet™ Thermostat is
connected to a network.
• The remote temperature sensor (RS) is oponal.
• For single stage heang, do not connect W2.
• For single stage cooling, do not connect Y2.
• Connect outputs to 24 volt AC pilot duty inputs.
• For addional details on connecng sensors, see Connecng Inputs
on page 7.
• For addional details on connecng the fan and valves, see
Connecng Outputs on page 8.

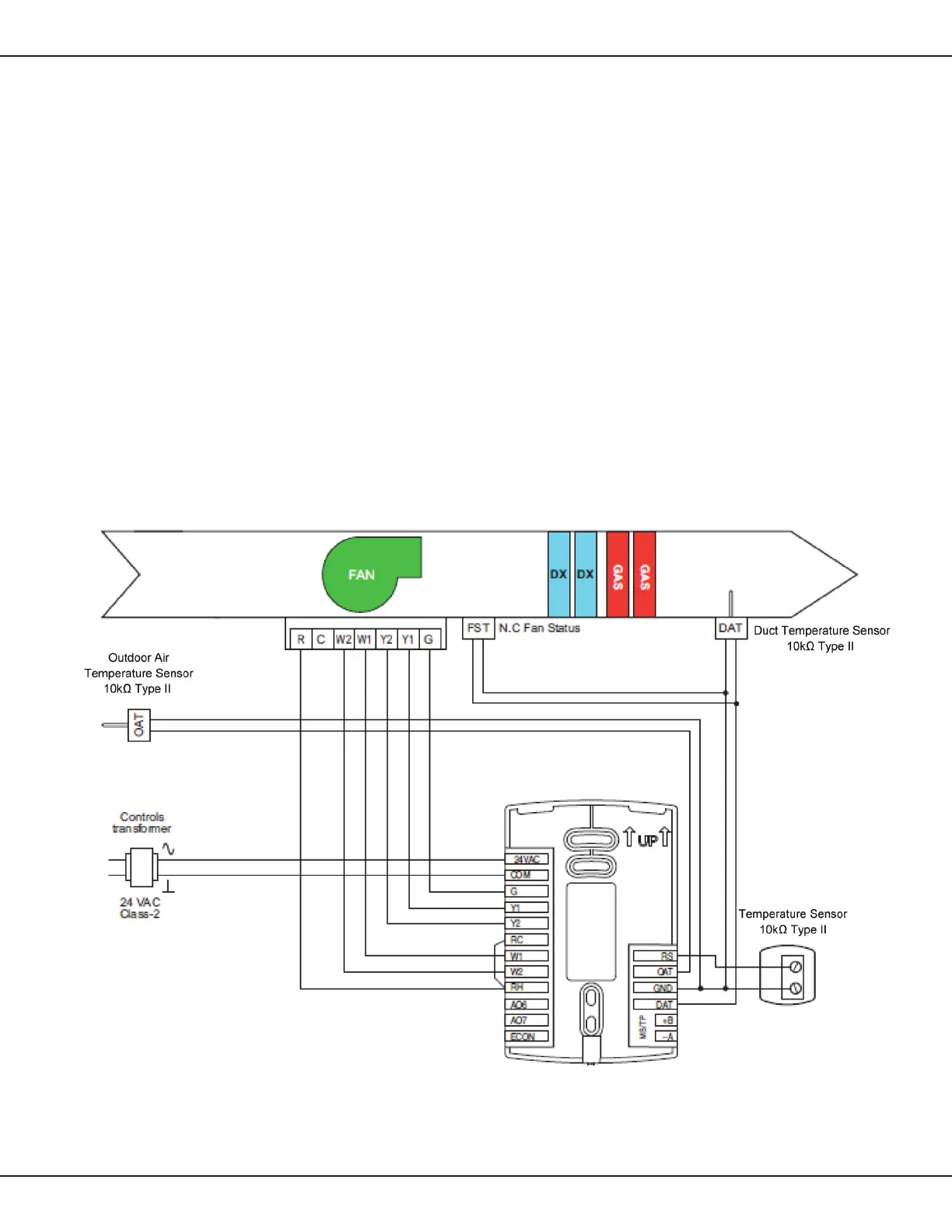

Figure 10: Rooop Unit Wiring Details—Two-Stage Gas Heat And Two-Stage DX Cooling
Sequences of Operaon

Daikin BACnet Series Specifications

General

Communication Protocol	BACnet MS/TP
Display Type	LCD
Power Supply	24 VAC
Mounting Type	Wall Mount
Accuracy	±0.5°C
Operating Temperature	0°C to 50°C
Weight	150g
