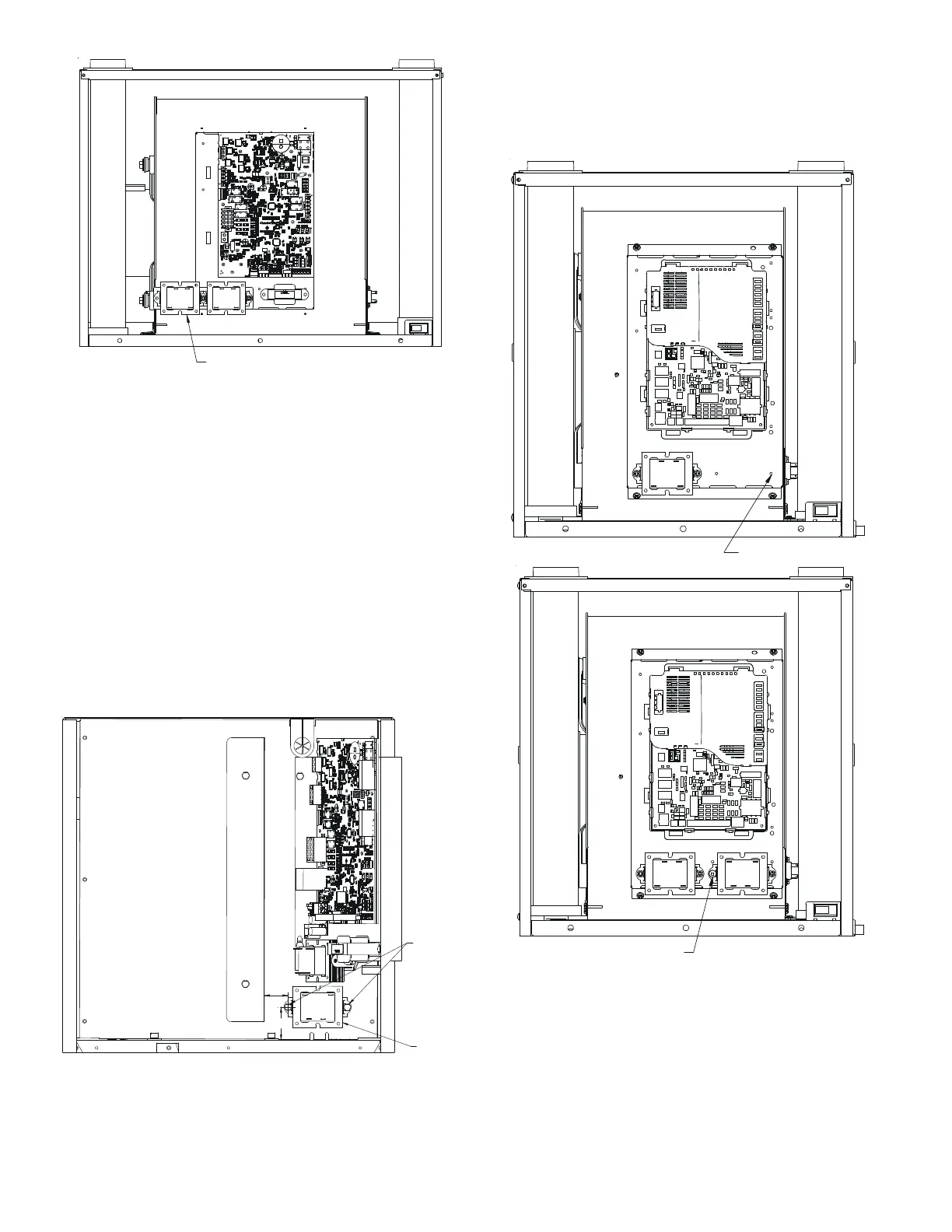

12
CASED COIL PCB TRANSFORMER
MOUNTED TO TRANSFORMER BRACKET "B"
Figure 20
11.5.1C NO BRACKET INSTALLATION
FOR 80% DOWNFLOW FURNACE
The PCB transformer can be assembled to the furnace partition
plate. Fasten the PCB transformer using (2) field supplied self-
drilling screws. Locate the transformer to the partition plate to
the recommended location. See Figure 21. The transformer should
be parallel to the edge of the heat shield. Self-drilling screws should
be no longer than 0.75" to prevent interference with the blower
housing.
NOTE: Extreme caution must be taken when installing the trans-
former to the partition plate and wiring the transformers so as to
not damage the furnace control board wiring or other electrical
components.
1.75
1.25
FIELD SUPPLIED
SELF-DRILLING
SCREWS
CASED COIL PCB
TRANSFORMER
Figure 21
FOR 96 / 97% DOWNFLOW FURNACE (17.5” width cabinet)
Fasten the PCB transformer using (1) field supplied screw at the
extra screw hole on the PCB mounting plate. Then secure an-
other screw hole of PCB transformer using (1) field supplied, self-
drilling screw.
USE THIS STOCK SCREW HOL
TIGHTEN OPPOSITE SIDE
USING (1) FIELD SUPPLIED
SELF-DRILLING SCREW
Figure 22
