3
2 SHIPPING INSPECTION
Upon receiving the product, inspect the unit for shipping dam-
age. Shipping damage and subsequent investigation is the re-
sponsibility of the carrier. Verify the model number, specifica-
tions, electrical characteristics and accessories are correct prior
to installation. The distributor or manufacturer will not accept
claims from dealers for transportation damage or installation
of incorrectly shipped units.
2.1 Parts
Also inspect the unit to verify all required components are
present and intact. Report any missing components im-
mediately to Daikin or to the distributor. Use only factory
authorized replacement parts (see Section 4). Make sure
to include the full product model number and serial num-
ber when reporting and/or obtaining service parts.

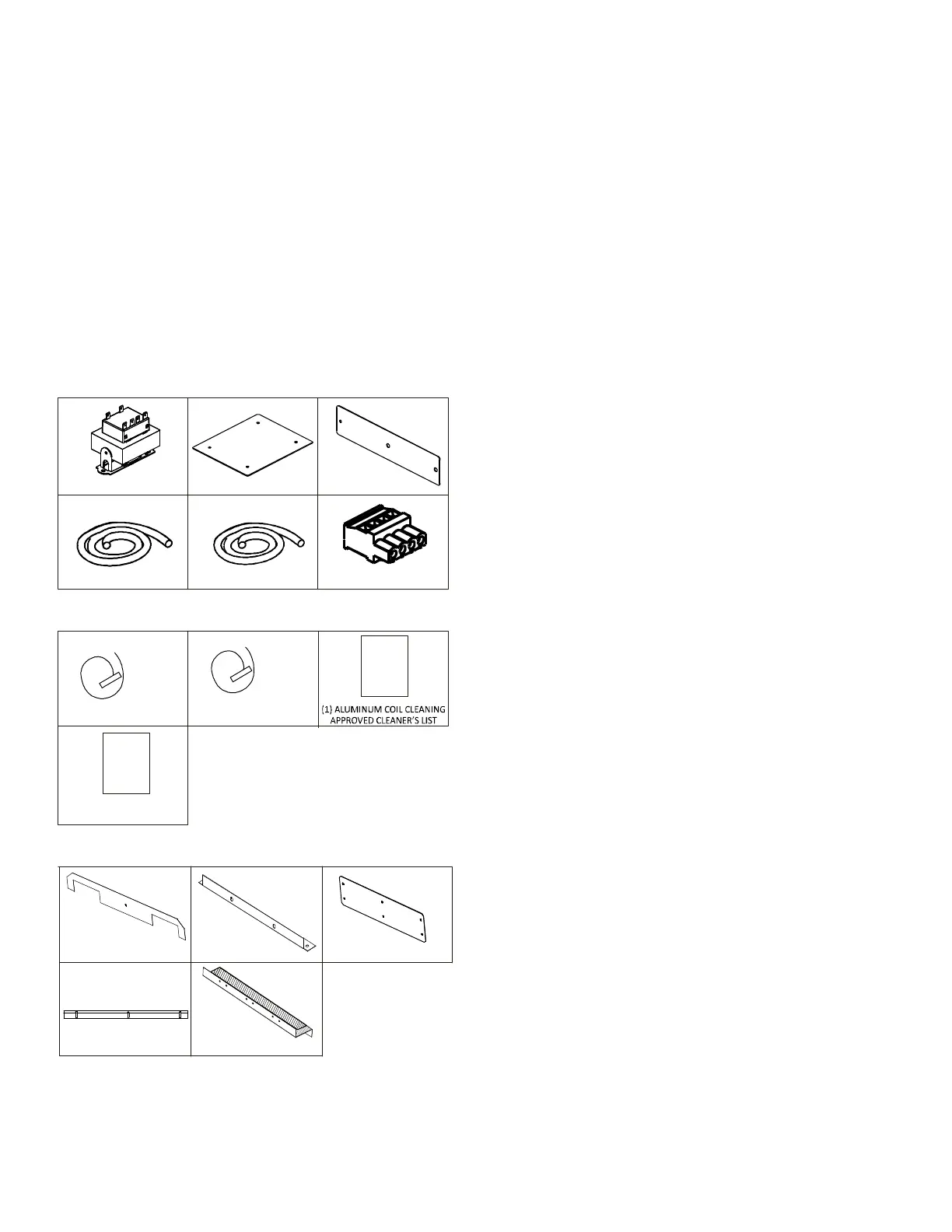

Transformer Kit Components
(1) TRANSFORMER
(1) BRACKET A
(1) BRACKET B
(1) WIRE (Red)
(1) WIRE (Black)
(1) TERMINAL CONNECTOR
Literature Bag Components
(1) WIRE HARNESS
(1) WIRE HARNESS
TP-109(*)
IO-454(*)
Ye ll ow
Purple
Green
Black
Gray
Red
Blue
(1) INSTALLATION
INSTRUCTION
Metal Fittings Kit Components
(1) BOTTOM DUCT FLANGE
(1) L BRACKET
(2) TIE-IN PLATES
(3) SIDE FLANGES
(1) Z BRACKET
Some models may have
various lengths
2.2 Handling
Use caution when handling the unit. Do not carry unit with
hooks or sharp objects. The preferred method of carrying the
unit after arrival at the job site is by two-wheel hand truck
from the back or sides or by hand, carrying at the cabinet
corners.
3 CODES & REGULATIONS
This product is designed and manufactured to comply with appli-
cable national codes. Installation in accordance with such codes
and/or prevailing local codes/regulations is the responsibility of
the installer. The manufacturer assumes no responsibility for
equipment installed in violation of any codes or regulations.
The United States Environmental Protection Agency (EPA) has
issued various regulations regarding the introduction and dis-
posal of refrigerants. Failure to follow these regulations may
harm the environment and can lead to the imposition of sub-
stantial fines. Should you have any questions please contact the
local office of the EPA and/or refer to EPA’s website www.epa.gov.
4 REPLACEMENT PARTS
When reporting shortages or damages, or ordering repair parts,
give the complete product model and serial numbers as stamped
on the product. Replacement parts for this product are available
through your contractor or local distributor. For the location of
your nearest distributor consult the white business pages, the yel-
low page section of the local telephone book or contact:
HOMEOWNER SUPPORT
DAIKIN MANUFACTURING COMPANY, L.P.
19001 Kermier Road
WALLER, TEXAS 77484
855-770-5678
5 PRE-INSTALLATION CONSIDERATIONS
5.1 Preparation
Keep this document with the unit. Carefully read all instruc-
tions for the installation prior to installing product. Make sure
each step or procedure is understood and any special con-
siderations are taken into account before starting installa-
tion. Assemble all tools, hardware and supplies needed to
complete the installation. Some items may need to be pur-
chased locally. Make sure everything needed to install the
product is on hand before starting.
5.2 System Matches
The entire system (combination of indoor and outdoor sec-
tions) must be manufacturer approved and Air-Conditioning,
Heating, and Refrigeration Institute (AHRI) listed. NOTE: In-
stallation of unmatched systems is not permitted. Damage
or repairs due to installation of unmatched systems is not
covered under the warranty.
