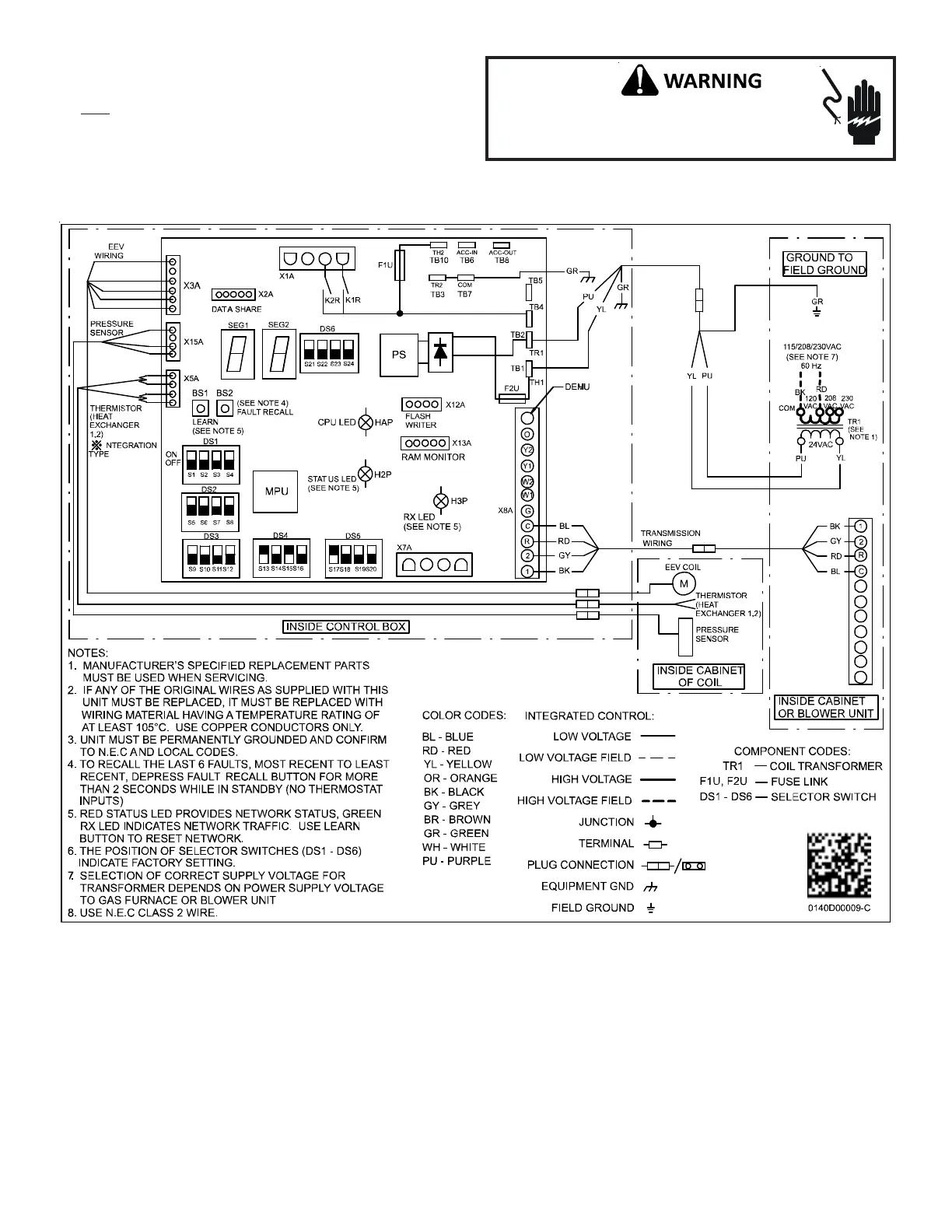

WIRING DIAGRAM
Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
NOTE: THESE INSTRUCTIONS ARE SPECIFICALLY FOR CHPE MODELS.
DO NOT ATTEMPT TO APPLY THESE DIAGRAMS TO ANY OTHER
MODELS.
HIGH VOLTAGE! DISCONNECT ALL POWER BEFORE
SERVICING. MULTIPLE POWER SOURCES MAY BE
PRESENT. FAILURE TO DO SO MAY CAUSE PROPERTY
DAMAGE, PERSONAL INJURY OR DEATH.
