2. Function of SA Indoor Unit
2.1 Drain Pump Control
2.1.1 When the Float Switch is Tripped While the Cooling Thermostat is
ON:
∗1. (Normal operation):
The purpose of residual operation is to completely drain any moisture adhering to the fin of the
indoor heat exchanger when the thermostat goes off during cooling operation.
∗2. (Malfunction residual):
The remote controller displays "
A3
" and the air conditioner comes to an abnormal stop in 5
minutes if the float switch is turned OFF while the cooling thermostat is ON.
2.1.2 When the Float Switch is Tripped While the Cooling Thermostat is
OFF:
∗3. (Malfunction residual):
The remote controller displays "
A3
" and the air conditioner comes to an abnormal stop if the float
switch is turned OFF and not turned ON again within 5 minutes while the cooling thermostat is
OFF.

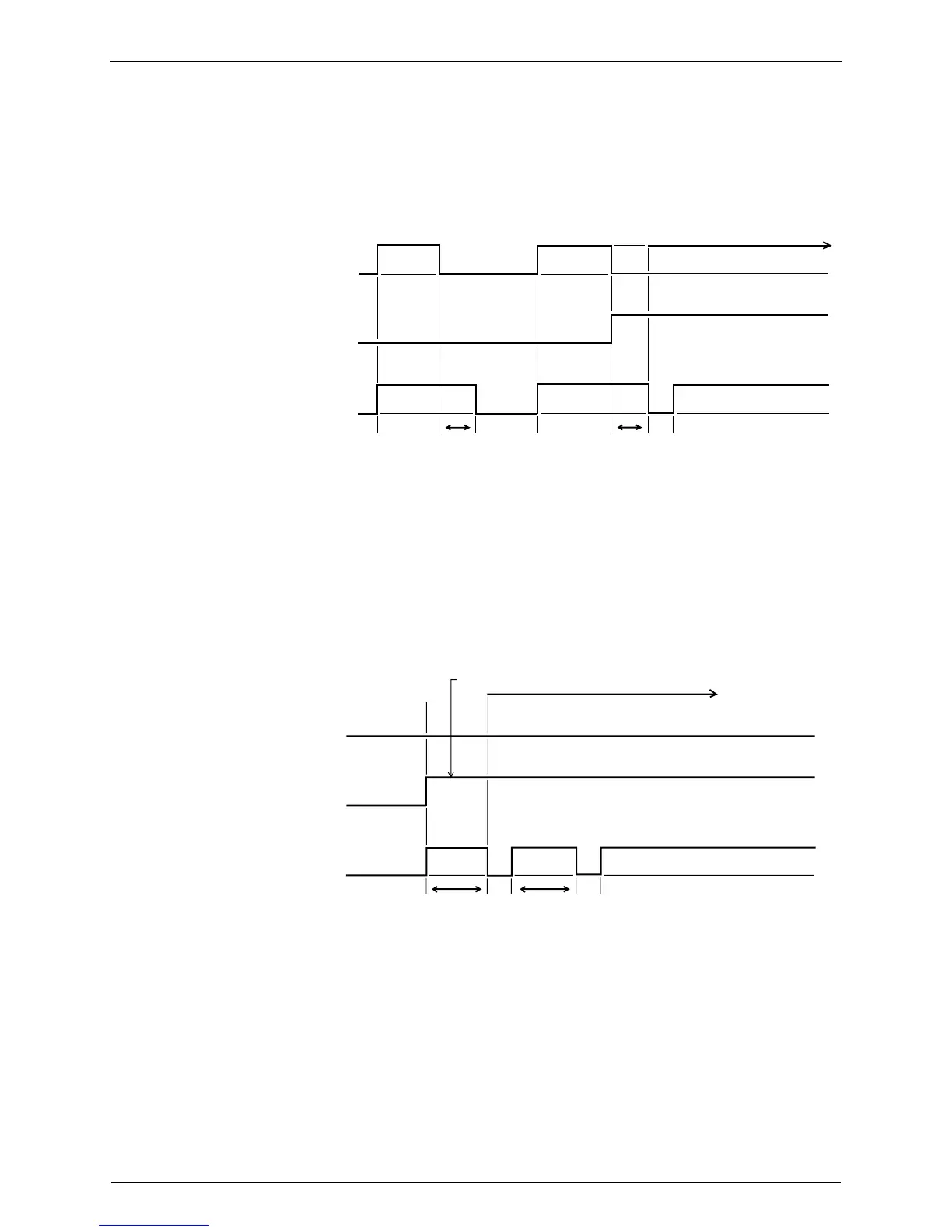

Float switch
The remote controller displays A3
and the indoor unit stops.
∗2) Malfunction residual∗1) Normal operation
5 min. 5 sec.5 min.
Drain pump
Thermostat
(running)
(R16092)
ON
ON
OFF
OFF
ON
OFF
     
Float switch
Drain pump
Thermostat
(running)
ON
ON
OFF
OFF
ON
OFF
The indoor unit enters malfunction treatment if the float switch is not
reset within 5 minutes.
The remote controller displays A3 and the indoor unit stops.
∗3
5 sec. 5 sec.5 min.5 min.
(R16093)
  
