InsTallaTIon
www.DaikinApplied.com 11 IOM 1266-2 • MAGNITUDE
®
MODEL WME CHILLERS
Retrot Knockdown
Magnitude
®
WME chillers are relatively easy to disassemble due to the small compressor size, simplied refrigerant piping, and
the absence of a lubrication system with its attendant components and piping. Various knockdown arrangements are available as
options and are ideal for retrot applications with tight installation clearances.
Bolt-Together Construction - Type A
Chillers are built and shipped completely assembled with bolt-together construction on major components for eld disassembly and
reassembly on the job site.

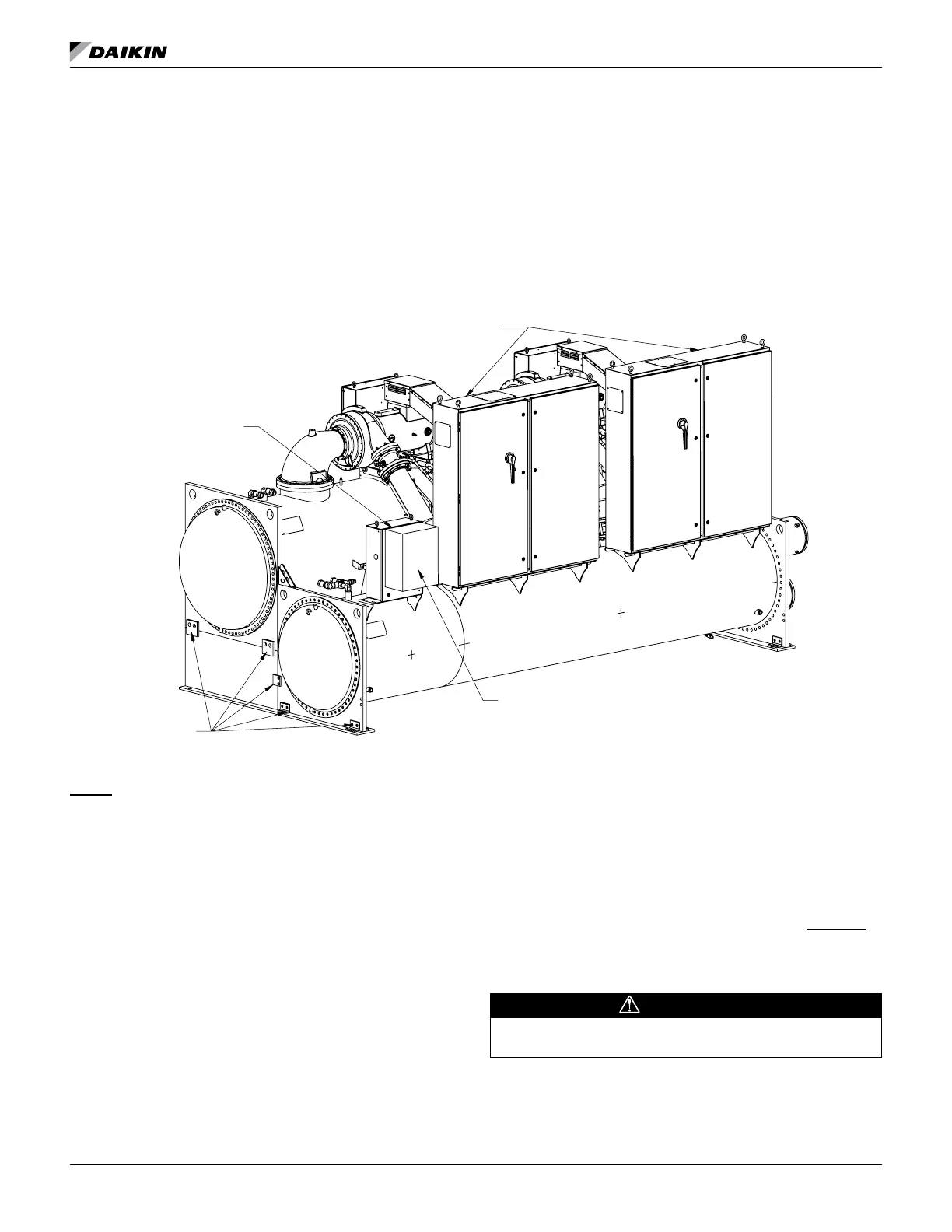

Figure 8: Bolt-Together Construction Option - Representative Schematic
Scope:
• Site disassembly and reassembly must be supervised or
completed by Daikin Applied service personnel.
• Unit is fully tested at the factory prior to shipment.
• The chiller is shipped completely assembled with the
full refrigerant charge, which must be recovered before
breaking any refrigerant connection.
• The refrigerant charge must be removed from the unit
if the vessels are to be separated. Exert the proper
precautions before attempting any disassembly, assume
the condenser isolation valves may have leaked and that
any component of the chiller may be pressurized with
refrigerant.
• Suction and discharge lines have bolt-on anges.
• Motor cooling line is brazed at mechanical connections.
• Blockoff plates are required to cover any refrigerant
connection left open for extended periods of time. Contact
Daikin Applied service to obtain these parts.
• Check that no power is being applied to the unit. Before
disconnecting any wire, it is prudent to label its function
and connection point to facilitate reconnection.
• Unit ships with vessel and/or head insulation, if ordered.
• Unit ships with replacement refrigerant gaskets and
O-rings, stick-on wire ties, and touch-up paint. Some
insulation repair and touch-up painting may be required.
CAUTION
Standard torque specs must be followed when re-installing
bolts. Contact Daikin Applied service for this information.
VESSEL
BREAKPOINTS
TYP. (IF NEEDED)
UNIT
CONTROL
BOX
HMI PANEL BOXED AND
SECURELY STRAPPED
TO UNIT CONTROL BOX
FOR SHIPPING
POWER BOX
NOTE: ALL STEEL PIPING &
COPPER TUBING IS DESIGNED
WITH MECHANICAL BREAKPOINTS
