www.DaikinApplied.com 31 OM 1280-2 • MICROTECH UNIT CONTROLLER
󰀨
󰀨󰀨
Output) based on several factors. These factors include the
six occupancy setpoints for heating and cooling (Occupancy
Temperature Setpoint), occupancy mode, the value of the
󰀨
Input, and the Setpoint Shift Input as well as the optional wall-
mounted sensor’s setpoint adjustment dial. As always, network
inputs have priority over hardwired connections.
The UVC determines if heating or cooling is required based
on the current unit mode (Heat/ Cool Mode Output) and then
calculates the required setpoint for heating or cooling. After
󰀨
󰀨
Output is the temperature setpoint maintained by the UVC and
that appears on the LUI display.

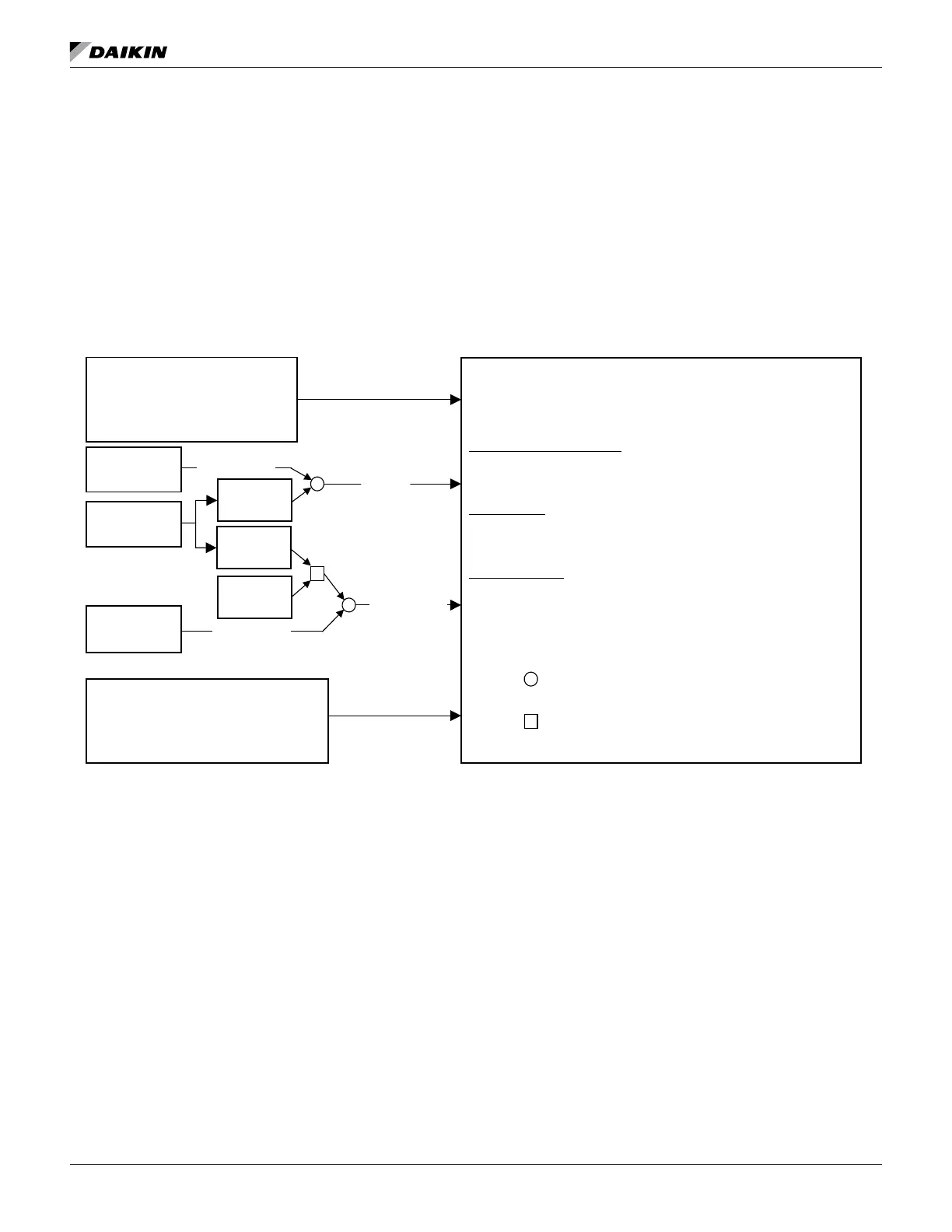

Figure 17: Eective Setpoint Calculations
Set Point
Offset Input
(network input)
WallSensorType
(Optional)
+5°F/–5°F
Wall Sensor
Network Value
Space Temp
Set Point Input
(network input)
55°F/95°F
Wall Sensor
Network Value
Setpoint
SetpointOffset
Occupied Cooling Set Point (OCS)
Standby Cooling Set Point (SCS)
Unoccupied Cooling Set Point (UCS)
Occupied Heating Set Point (OHS)
Standby Heating Set Point (SHS)
Unoccupied Heating Set Point (UHS)
Occupied Cooling Set Point Shift (OCSS)
Standby Cooling Set Point Shift (SCSS)
Unoccupied Cooling Set Point Shift (UCSS)
Occupied Heating Set Point Shift (OCSS)
Standby Heating Set Point Shift (SHSS)
Unoccupied Heating Set Point Shift (UHSS)
SetptShift (network inputs)
Occupancy Temperature Setpoints
(network configuration variables)
Local User
Interface
+5°F/–5°F
AbsOffsetOccupied = Setpoint - (OCS + OHS)/2
AbsOffsetStandby = Setpoint - (SCS + SHS)/2
Occupied and Bypass Modes
EffectiveCoolSetpoint = OCS + AbsOffsetOccupied + SetptOffset + OCSS
EffectiveHeatSetpoint = OHS + AbsOffsetOccupied + SetptOffset + OHSS
Standby Mode
EffectiveCoolSetpoint = SCS + AbsOffsetStandby + SetptOffset + SCSS
EffectiveHeatSetpoint = SHS + AbsOffsetStandby + SetptOffset + SHSS
Unoccupied Mode
EffectiveCoolSetpoint = UCS + UCSS
EffectiveHeatSetpoint = UHS + UHSS
If both entering paths have
valid values, then the network
value has priority.
Effective Set Point Calculations for each Occupancy Mode
If both entering paths have
valid values, then the keypad/display value
has priority.
Note: Italicized values are optional input. Value will be 0F in not used.
