IM 972-2 • MAVERICK I ROOFTOP SYSTEMS 34 www.DaikinApplied.com

Horizontal Duct Installation
MXRD-RGCM3—15 & 25 Ton [52.8 kW & 87.9 kW] Models Single Enthalpy (Outdoor)
RXRX-AV02—Dual Enthalpy Upgrade Kit
RXRX-AR02—Wall-Mounted CO
2
Sensor
• Features economizer controller
• Available factory installed or eld accessory
• Gear driven direct drive actuator
• Fully modulating (0-100%)
• Low leakage dampers
• Slip-in design for easy installation
• Plug-in polarized 12 pin electrical connections
• Pre-congured—no eld adjustments necessary
• Standard barometric relief damper
• Single enthalpy with dual enthalpy upgrade kit available
• CO
2
input sensor available
• Field assembled hood ships with economizer
• Economizer ships complete for downow duct application
• Field installed power exhaust available

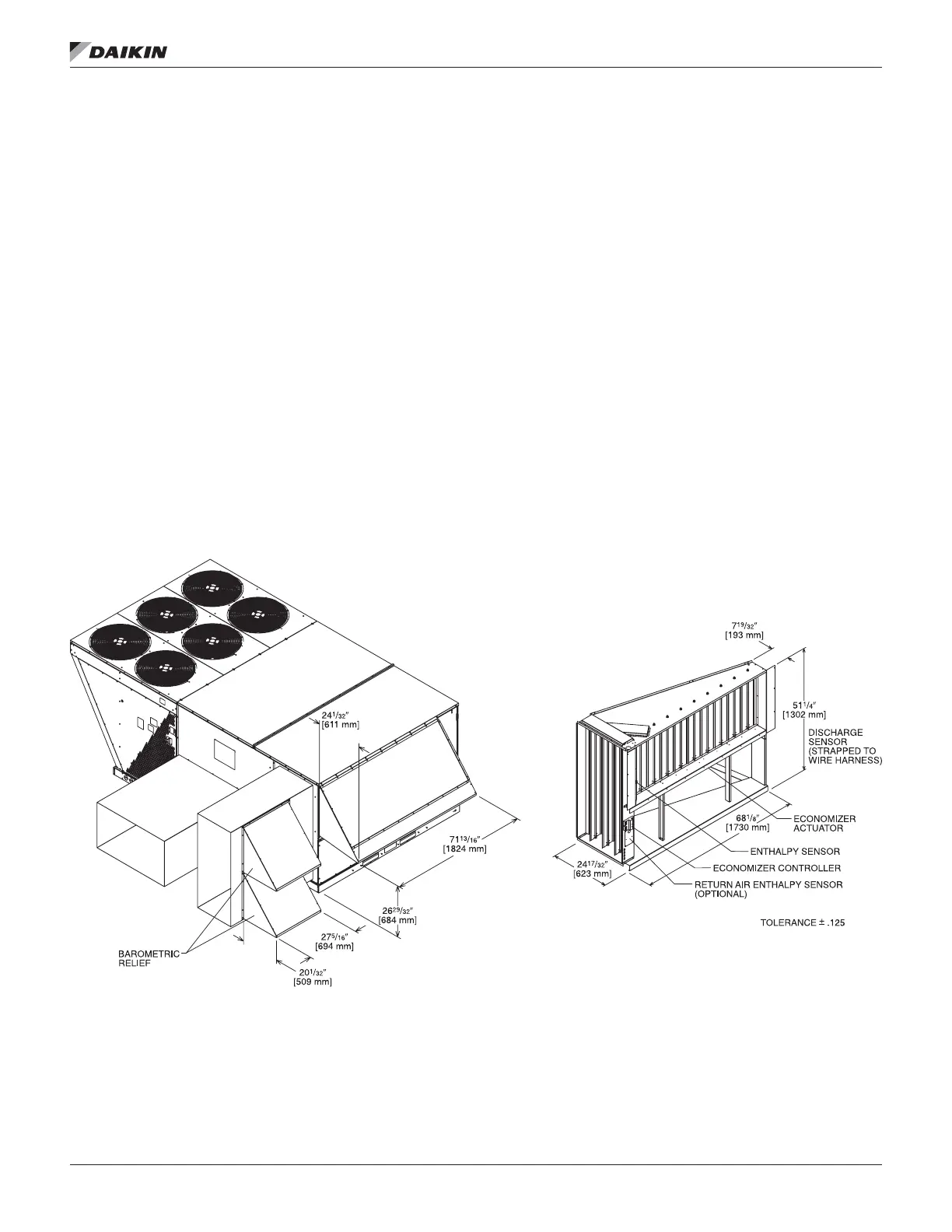

Figure 31: Economizer: MPS 015B – 025B
