www.DaikinApplied.com 37 IM 972-2 • MAVERICK I ROOFTOP SYSTEMS
Roofcurbs
Roofcurbs (Full Perimeter): 15–25 Tons [52.8–70.3 kW]
Table 17: Roofcurb Accessories
Daikin Model Number Description
RXKG-CBH14 MPS-015B through -025B
• One available height (14") [356 mm] for all models
• Quick assembly corners for easy installation
• 1" [25 mm] × 4" [102 mm] nailer provided
• Insulating panels not required because of insulated
outdoor base pan
• Sealing gasket (28" [711 mm]) provided with roofcurb
• 18 gauge galvanized steel

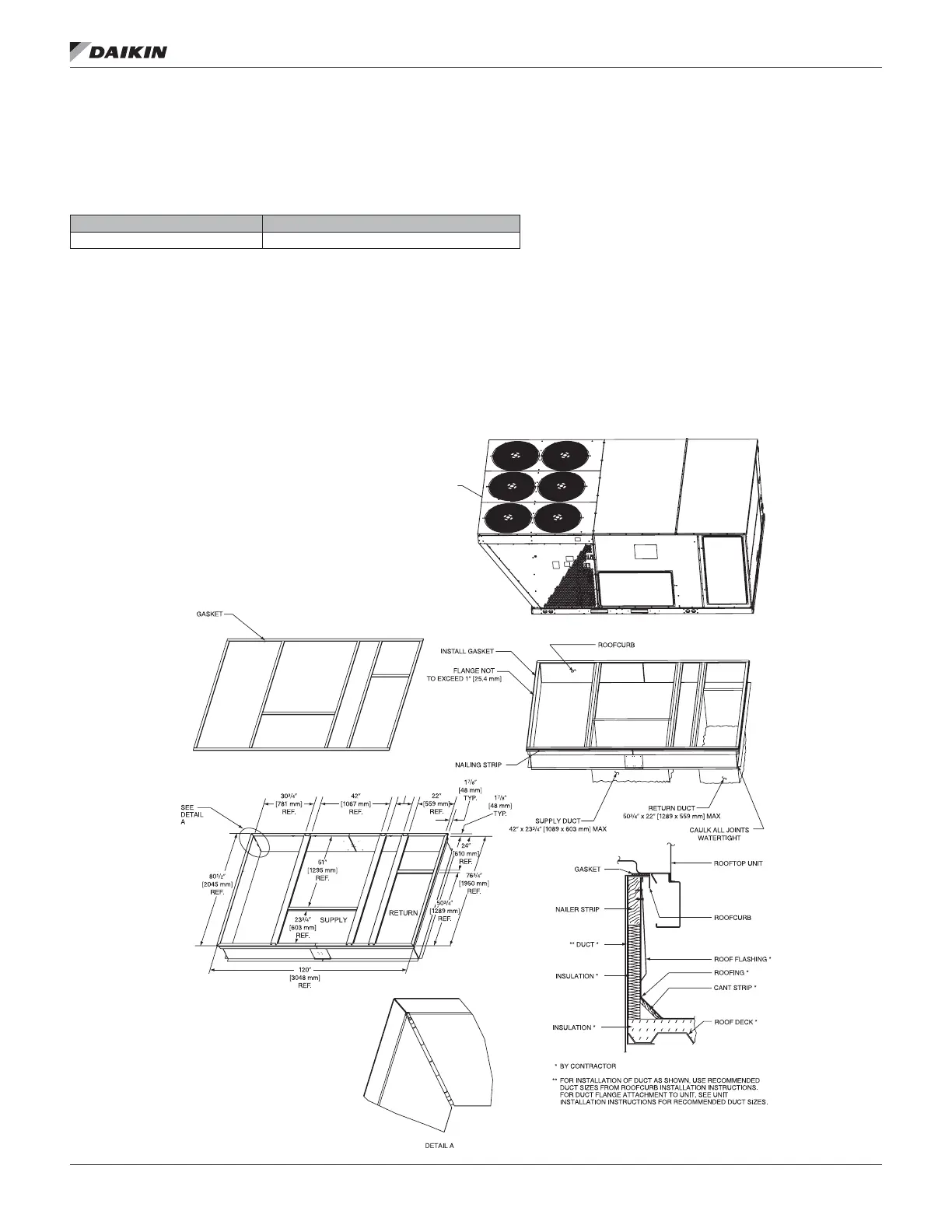

Figure 35: Typical Roofcurb Installation: MPS 015B – 020B
UN IT
