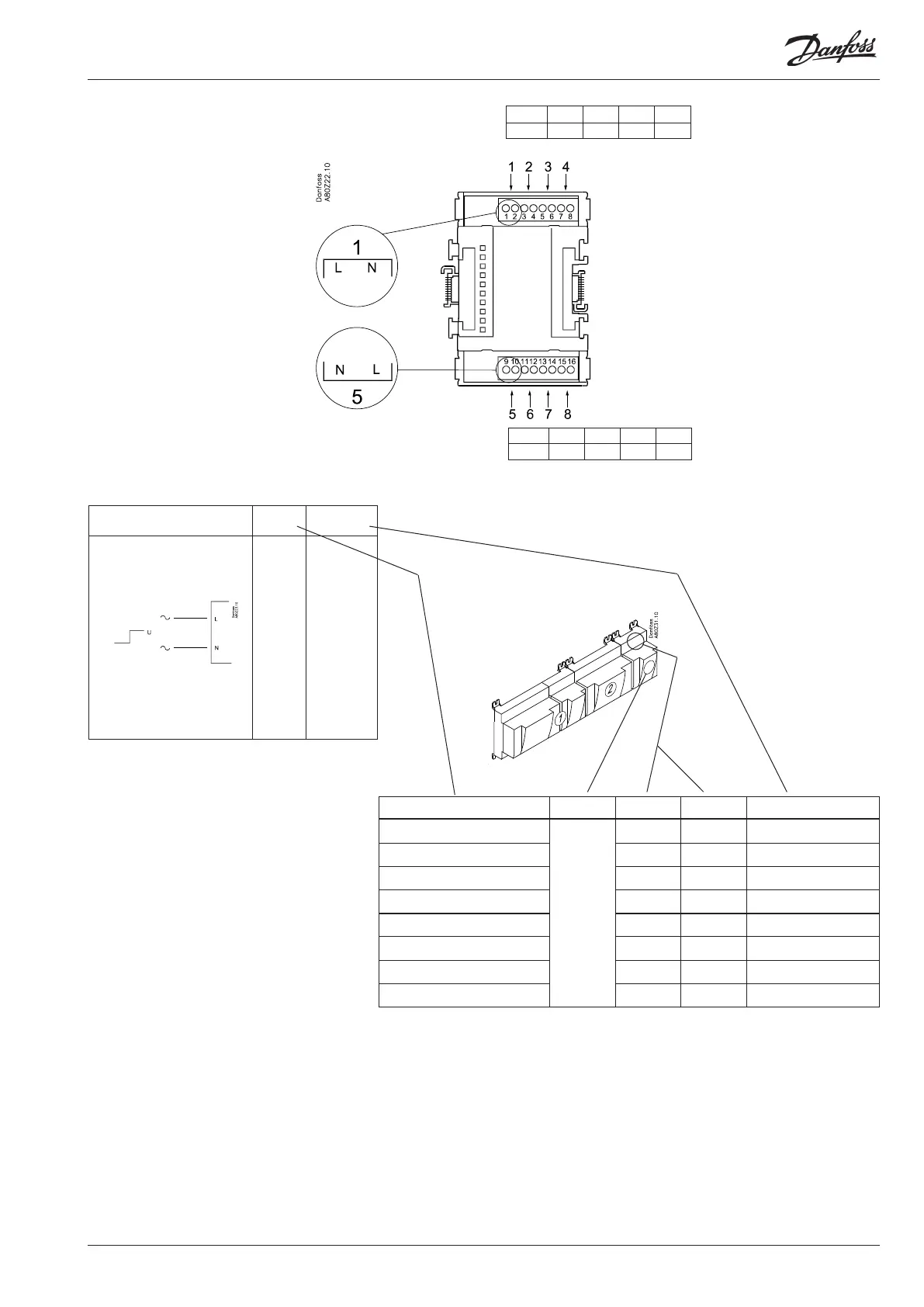

AK-PC 781A Capacity controller RS8HE202 © Danfoss 2017-07 17
Signal Module Point Terminal Active at
1 (DI 1) 1 - 2
2 (DI 2) 3 - 4
3 (DI 3) 5 - 6
4 (DI 4) 7 - 8
5 (DI 5) 9 - 10
6 (DI 6) 11 - 12
7 (DI 7) 13 - 14
8 (DI 8) 15 - 16
Point
Signal Active at
DI
Ext.
Main
switch
Day/
Night
Comp.
safety 1
Comp.
safety 2
Level
switch
Closed
(voltage on)
/
Open
(voltage off)
Point 5 6 7 8
Type DI5 DI6 DI7 DI8
Point 1 2 3 4
Type DI1 DI2 DI3 DI4
AK-XM 102A: Max. 24 V
AK-XM 102B: Max. 230 V
(The module can not register a pulse signal from e.g. a
reset function.)
