Danfoss AK-PC 781A User Manual

44 Capacity controller RS8HE202 © Danfoss 2017-07 AK-PC 781A

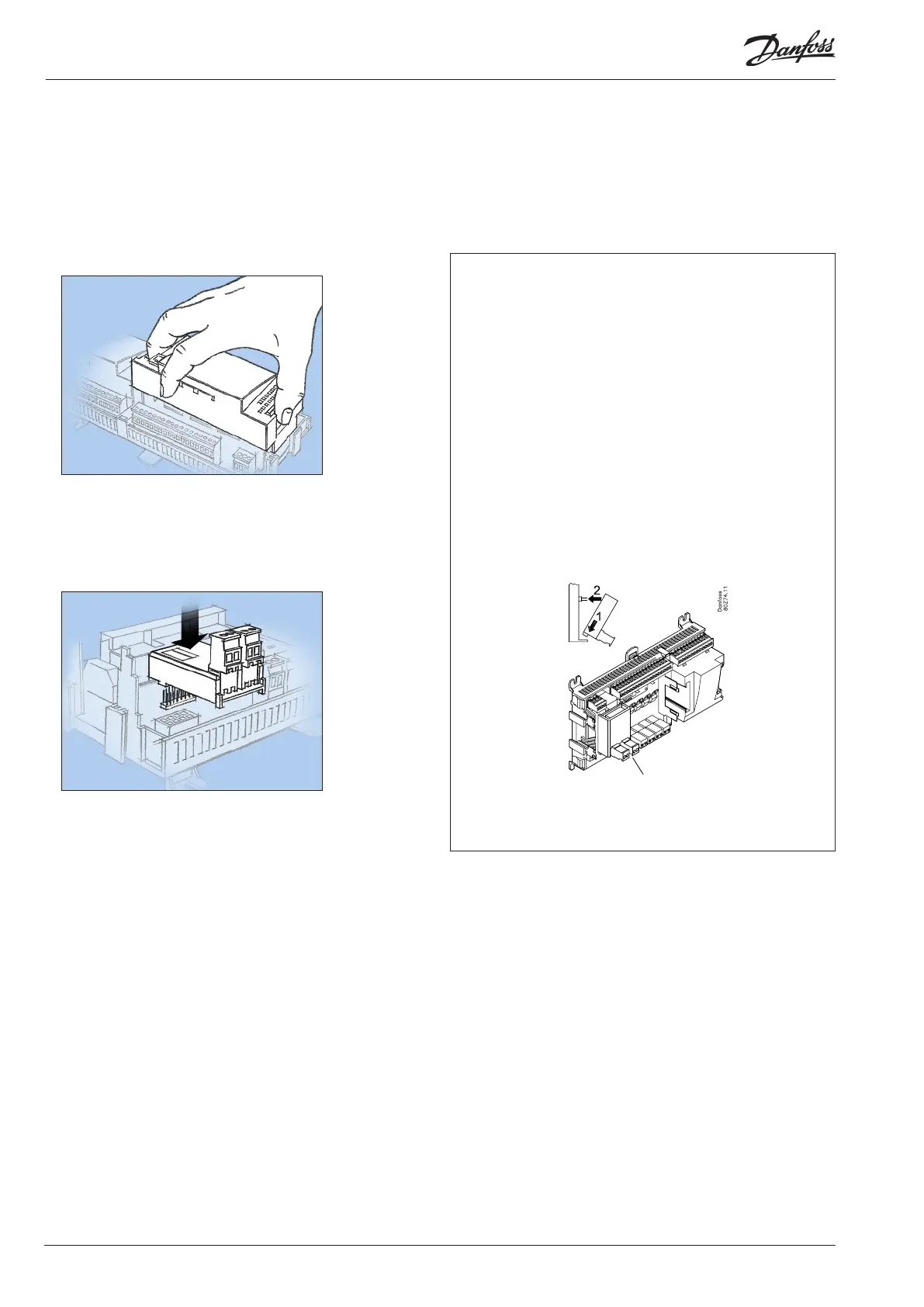

Mounting
Mounting of analog output module
1. Lift the top part off the basic module
The basic module must not be connected to voltage.
Press in the plate on the left-hand side of the light-emitting
diodes and the plate on the right-hand side for the red address
changers.
Lift the top part off the basic module.
2. Mount the extension module in the basic module
3. Put the top part back on the basic module
The analog extension module will supply a signal to the ICMTS valve
There are two outputs.
