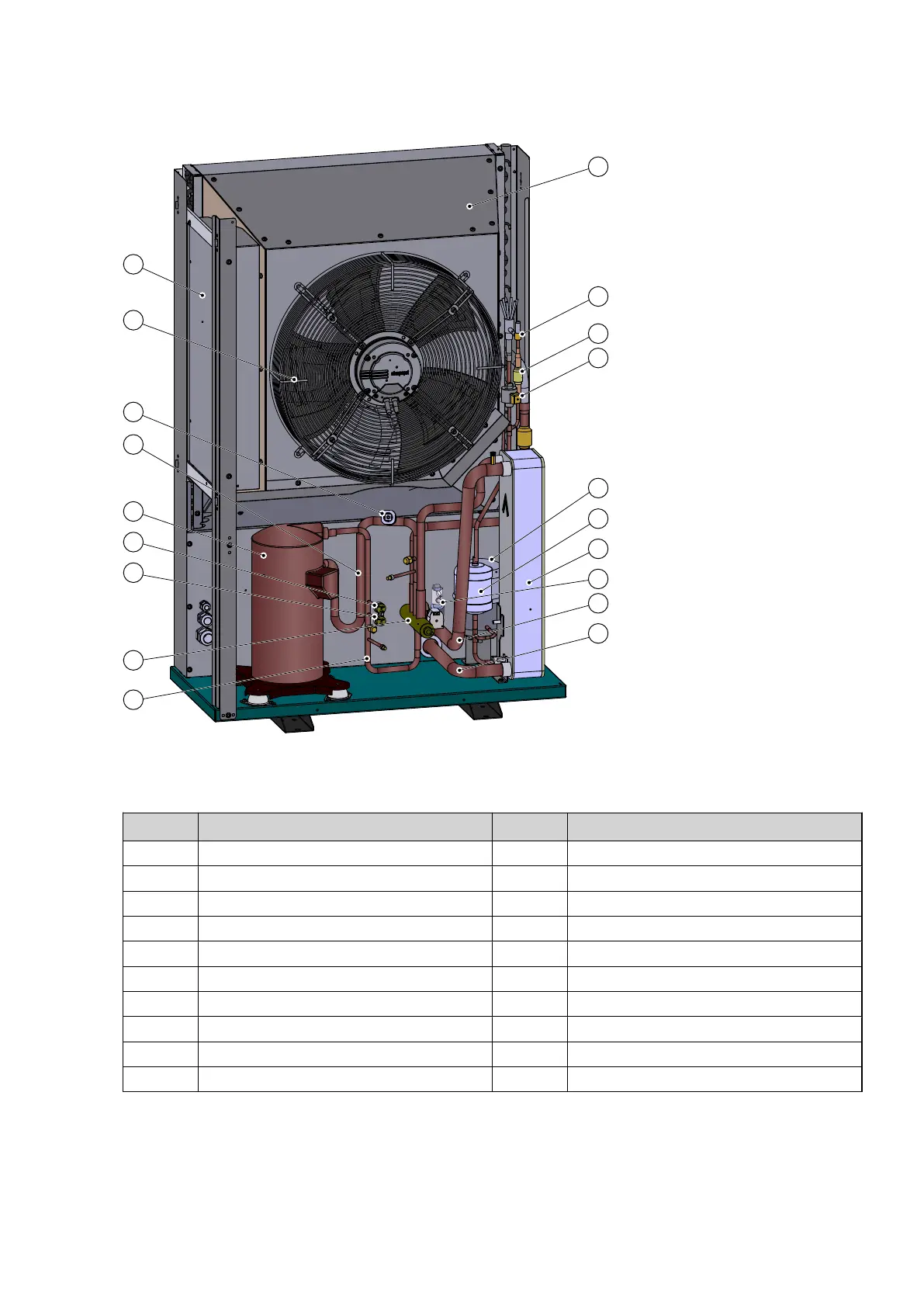

4.2 Components
4.2.1
Outdoor unit
11
10
12
13
14
16
15
17
1
2
3
4
5
6
7
8
9
19
18
Position Name Position Name
1 Electrical cabinet 11 Electronic expansion valve
2 Fan 12 Receiver
3 Pressure transmitter 13 Drying filter
4 Suction line 14 Heat exchanger
5 Compressor 15 Flow sensor
6 High pressure switch 16 Heating system supply line
7 Operating pressure switch 17 Return line heating system
8 Four-way valve 18 Solenoid
9 Discharge pipe 19 Non-return valve
10 Air heat exchanger
Installation instructions VMGFD102 – 15
