Danfoss DHP-AQ Installation Instructions

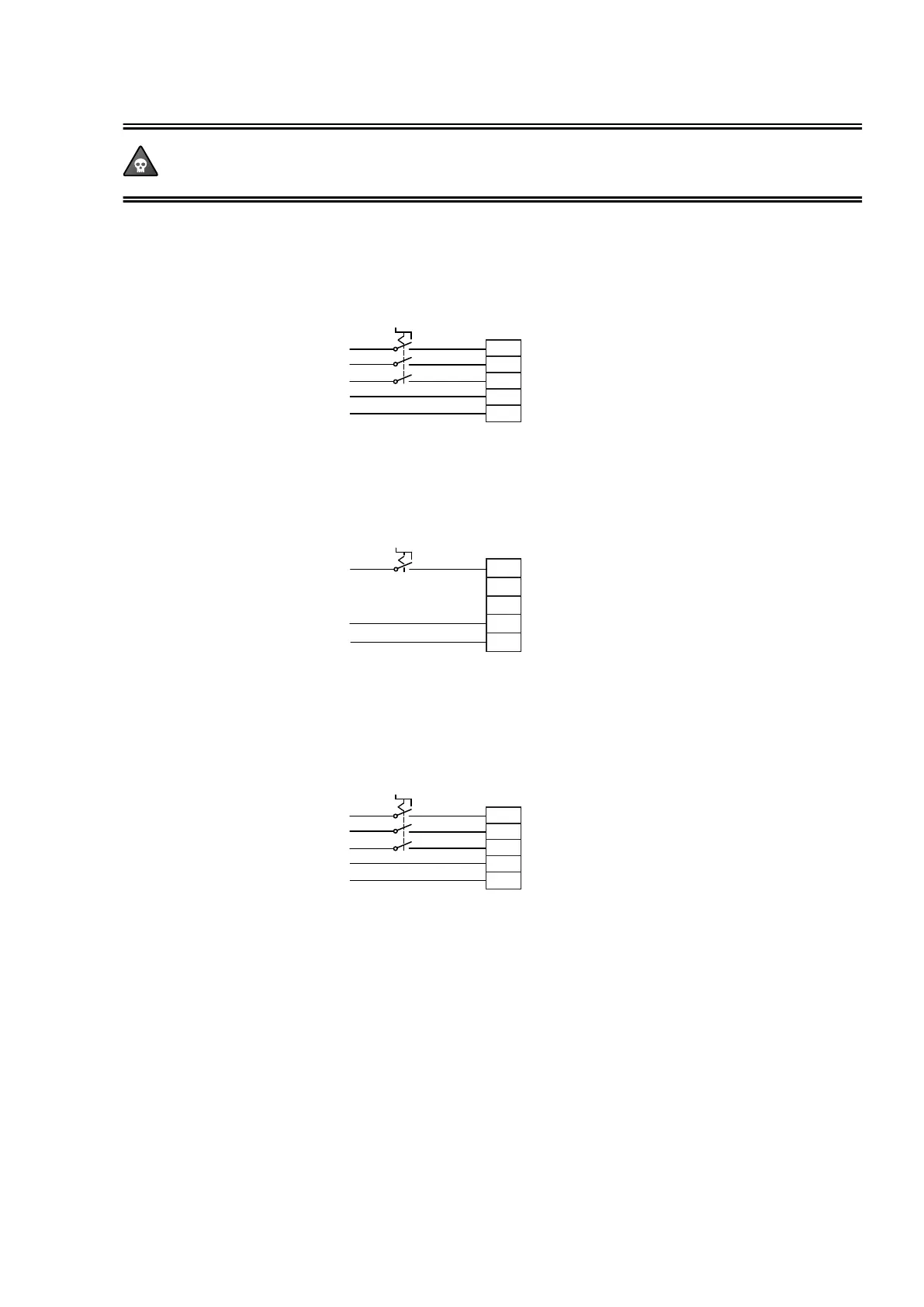

7.10 Connecting the power supply
Connect power cable to heat pump unit and to terminal block in control centre as below.
DANGER! Electrical current! The power cable may only be connected to the terminal block intended for
this purpose. No other terminal blocks may be used!
7.10.1 Connection heat pump 400 V, 3-N
Circuit-breaker Terminal block heat pump
Incoming cable
3
1
5
2
4
6
L1
L2
L3
N
PE
7.10.2 Connection heat pump 230 V, 1-N
Circuit-breaker Terminal block heat pump
Incoming cable
L1
SPARE
SP1
N
PE
1 2
7.10.3 Connection control centre 400 V, 3-N (DHP-AQ Midi and DHP-AQ Maxi)
Circuit-breaker Terminal block control centre
Incoming cable
3
1
5
2
4
6
L1
L2
L3
N
PE
36 – Installation instructions VMGFD102
