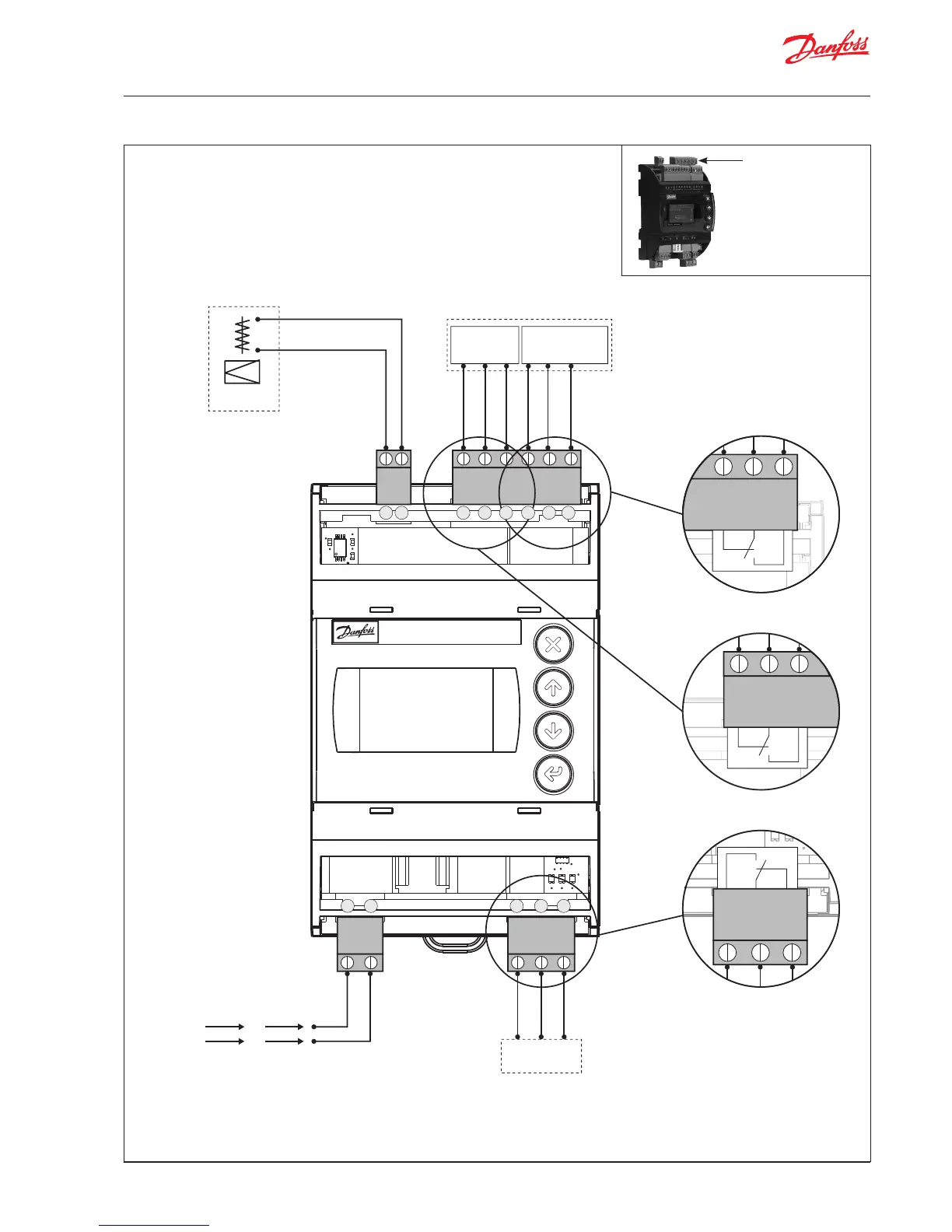

Connections - Lower level
Connections
lower level
–/~ NO 4 NC 3 C 3 NO 3 NC 2 C 2 NO 2
-/~ +/~
NO 1 C 1 NC 1
POWER
SUPPLY
AKV/AKVA
24 V AC
+/- 20% 15 VA
24 V DC
+/- 20% 10 W
–
Common
Normally Open or
Normally Closed
Low Level Alarm
Normally Open or
Normally Closed
High Level Alarm
Normally Open or
Normally Closed
+
37
29
28 27 26 25
36 35 34 33 32 31 30
NC 2 C 2 NO 2
NC 3 C 3 NO 3
NO 1 C 1 NC 1
Note:
AKV(A) Coil voltage must be the same
as controller supply voltage AC or DC
If AKV(A) is used, the power supply must
cover the AKV(A) coil wattage additional
Lower level
