Danfoss iC7 Series User Manual

e30bk893.10
17
15
7
3
5
2
1
9
8
6
4
13
11
10
16
14
12
18
A+/+SIN
A–/REFSIN
B+/+COS
B–/REFCOS
Clock+
Clock–
Data+
Data–
1

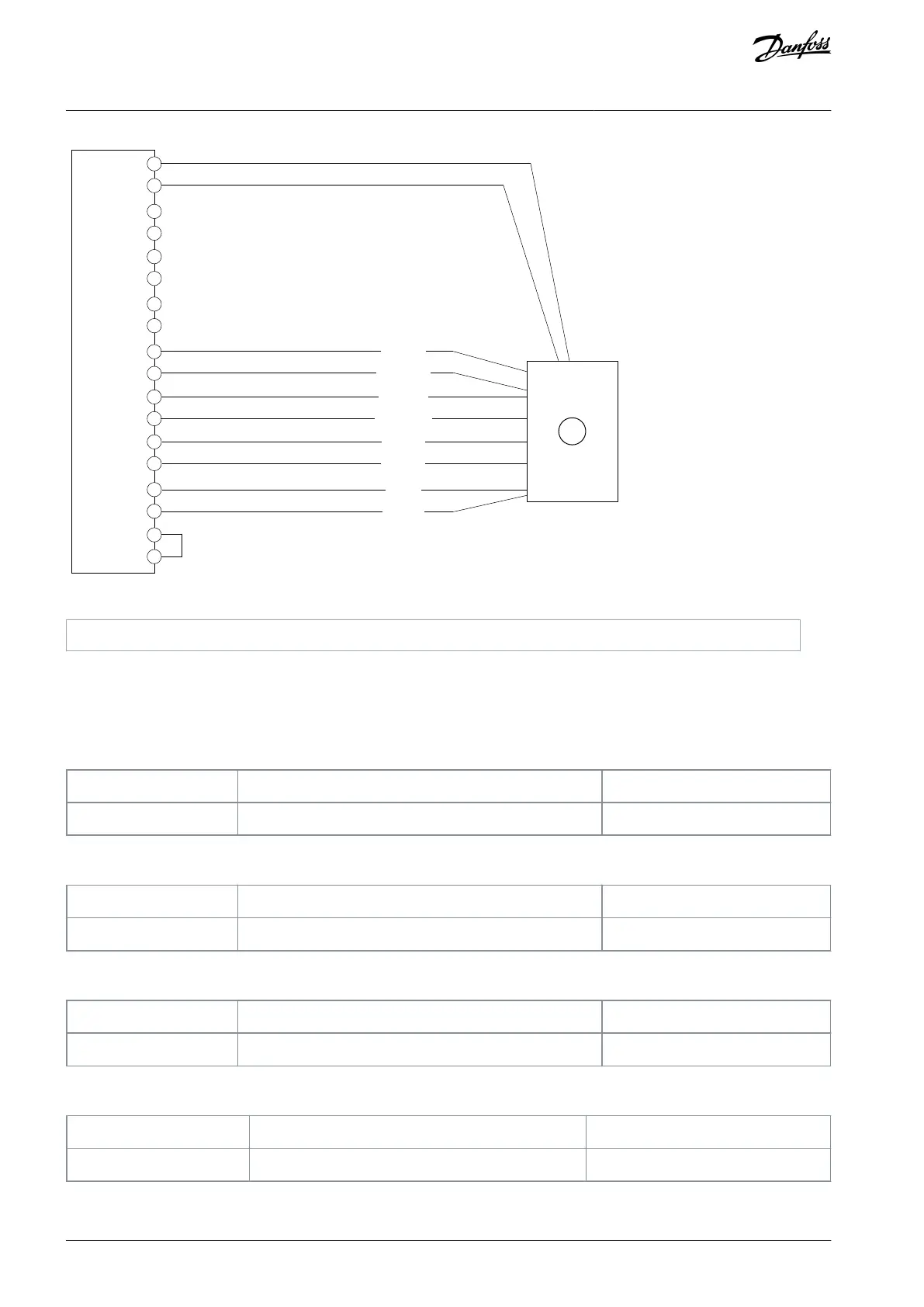

Illustration 23: BiSS Encoder with Incremental or SinCos Track
1
Encoder
5.6 Parameter Descriptions for Encoder/Resolver
5.6.1 Status (Menu Index 9.1)
P 9.1.1 Channel 1 Singleturn Angle
Description: Shows the raw singleturn angle of encoder connected to channel 1. The value is scaled from 0 to 2³²-1.
Default Value : NA
Parameter Type: Range (0 — 4294967295)
Parameter Number: 4065
Unit: -
Data Type: UDINT
Access Type: Read Only
P 9.1.2 Channel 1 Revolutions
Description: Shows the number of multiturn revolutions for channel 1.
Default Value : NA
Parameter Type: Range (0 — 4294967295)
Parameter Number: 4066
Unit: -
Data Type: UDINT
Access Type: Read Only
P 9.1.3 Channel 1 Zero Angle
Description: Shows the raw singleturn angle at latest zero pulse at channel 1. The value is scaled from 0 to 2³²-1.
Default Value : NA
Parameter Type: Range (0 — 4294967295)
Parameter Number: 4067
Unit: -
Data Type: UDINT
Access Type: Read Only
P 9.1.4 Channel 1 Encoder Status Word
Description: Shows a status indication for encoder connected to channel 1.
Default Value : NA
Parameter Type: Range (0 — 65535)
Parameter Number: 4068
Unit: -
Data Type: WORD
Access Type: Read Only
Following are the bits and description.
AQ390830267692en-000601 / 136R027336 | Danfoss A/S © 2023.06
Encoder/Resolver Installation and
Configuration
Functional Extension Options
Operating Guide
