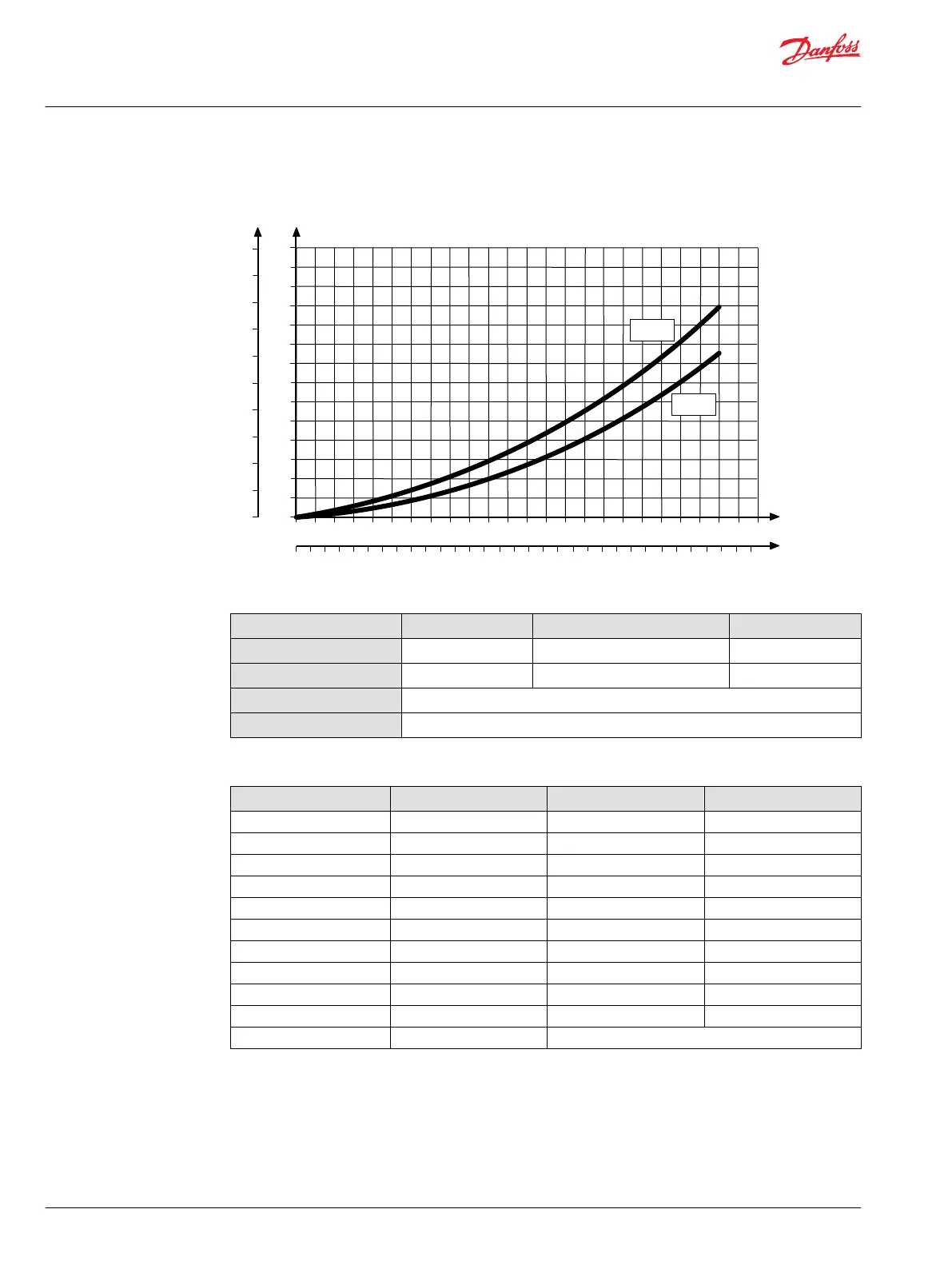

PVLP/PVLA suction valve characteristics
5 10 15 20 25 30 35 40 45 50 55 60 65
[l/min]
[US gal/min]
70 75 80
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
20
18
16
14
12
10
8
6
4
2
0
85 90 95 100
22 23 24 25 26
Q
28
26
24
22
P
P
200
160
120
80
40
0
280
240
320
400
360
0
[psi] [bar]
0
Q
105 110 115 120
27 28 29 30 31
PVLP
PVLA
Technical specification
Parameter Minimum Recommended range Maximum
Fluid temperature
-30°C [-22°F] 30 to 60°C [86 to 140°F] 90° [194°F]
Fluid viscosity
4 mm
2
/s [39 SUS] 12 to 75 mm
2
/s [65 to 347 SUS] 460 mm
2
/s [2128 SUS]
Fluid cleanliness
23/19/16 (according to ISO 4406)
Operating temperature
Ambient: -30 to 60°C [-22 to 140°F]
Part numbers for PVLP according to pressure settings
Part number Pressure in bar [psi] Part number Pressure in bar [psi]
157B2032 32 [464] 157B2210 210 [3045]
157B2050 50 [725] 157B2230 230 [3335]
157B2063 63 [913] 157B2240 240 [3480]
157B2080 80 [1160] 157B2250 250 [3626]
157B2100 100 [1450] 157B2265 265 [3844]
157B2125 125 [1813] 157B2280 280 [4061]
157B2140 140 [2031] 157B2300 300 [4351]
157B2150 150 [2176] 157B2320 320 [4641]
157B2160 160 [2321] 157B2350 350 [5076]
157B2175 175 [2538] 157B2380 380 [5511]
157B2190 190 [2756] —
Technical Information
PVG 16 Proportional Valve Group
PVB Basic Modules Accessories
60 |
©
Danfoss | December 2018 BC00000211en-000901
