VLT
®
8000 AQUA
Installation
■ High voltage test
A high voltage test can be carried out by short-circuiting
terminalsU,V,W,L
1
,L
2
and L
3
and energizing
by max. 2.5 kV DC for one second between
this short-circuit and the chassis.
NB!:
The RFI switch must be closed (position
ON) when high voltage tests are carried out.
The mains and motor connection must be
interrupted in the case of high voltage tests of the total
installation if the leakage currents are too high.
■ Heat emission from VLT 8000 AQUA
The tables in General technical data show the
power loss P
ϕ
(W) from VLT 8000 AQUA. The
maximum cooling air temperature t
IN, MAX
is 40° C
(104° F) at 100% load (of rated value).
■ Ventilation of integrated VLT 8000 AQUA
The quantity of air required for cooling frequency
converter can be calculated as follows:
1. Add up the values of P for all the frequency
converters to be integrated in the same panel.
The highest cooling air temperature (t
IN
)present
must be lower than t
IN, MAX
40° C (104° F).
The day/night average must be 5°C (9° F) lower.
The outlet temperature of the cooling air must
not exceed: t
OUT, MAX
45° C (113° F).
2. Calculate the permissible difference between
the temperature of the cooling air (t
IN
)and
its outlet temperature (t
OUT
):
t= 45° C (113° F) -t
IN
.

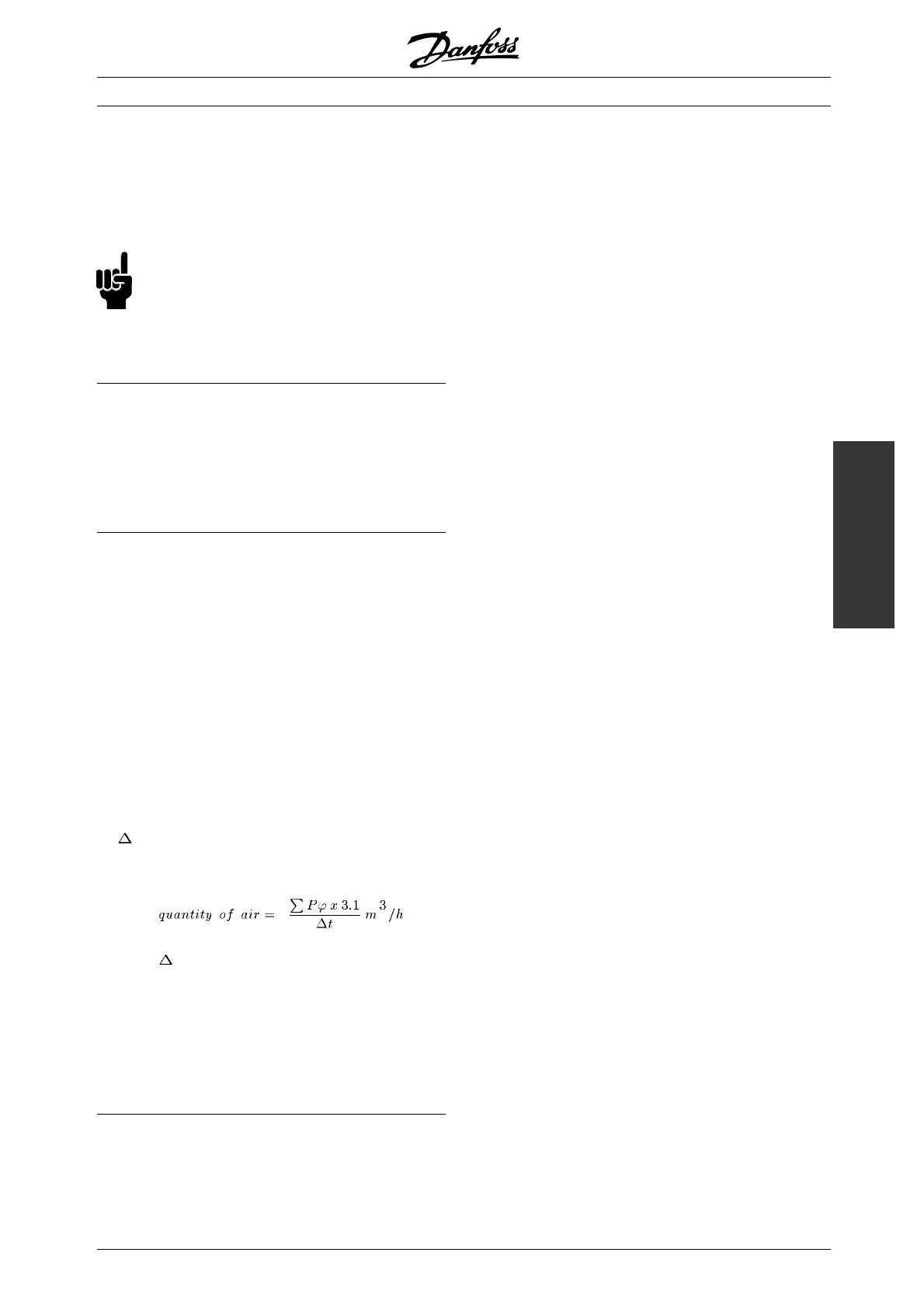

3. Calculate the required
Insert tinKelvin
The outlet from the ventilation must be placed above
the highest-mounted frequency converter.
Allowancemustbemadeforthepressureloss
across the filters and for the fact that the pressure
is going to drop as the filters are choked.
MG.83.A2.02 - VLT is a registered Danfoss trademark
61
