Danfoss VLT 8000 AQUA series User Manual

VLT
®
8000 AQUA

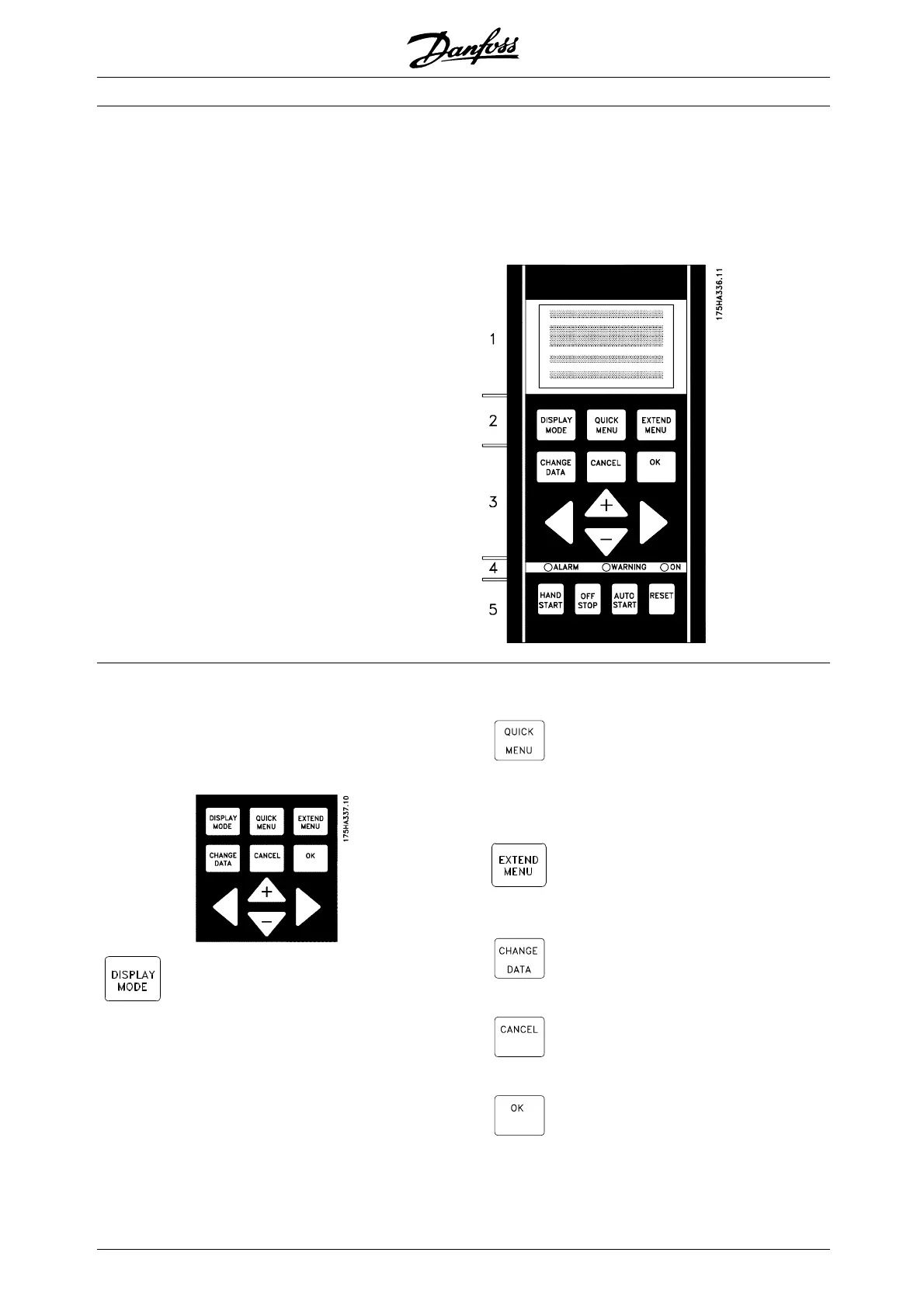

■ Control unit LCP
The front of the frequency converter features
a control panel - LCP (Local Control Panel).
This is a complete interface for operation and
programming of the VLT 8000 AQUA.
The control panel is detachable and can - as an
alternative - be installed up to 3m/10 ft away from
the frequency converter, e.g. on the front panel,
by means of a mounting kit option.
The functions of the control panel can be
divided into five groups:
1. Display
2. Keys for changing display mode
3. Keys for changing program parameters
4. Indicator lamps
5. Keys for local operation.
All data are indicated by means of a 4-line
alpha-numeric display, which, in normal operation,
is able to show 4 operating data values and 3
operating condition values continuously. During
programming, all the information required for quick,
effective parameter Setup of the frequency converter
will be displayed. As a supplement to the display,
there are three indicator lamps for voltage (ON),
warning (WARNING) and alarm (ALARM), respectively.
All frequency converter parameter Setups can be
changed immediately via the control panel, unless this
function has been programmed to be Locked [1] via
parameter 016 Lock for data change or via a digital
input, parameters 300-307 Lock for data change.
■ Control keys for parameter setup
The control keys are divided into functions. This means
that the keys between display and indicator lamps
are used for parameter Setup, including selecting the
display indication during normal operation.
[DISPLAY MODE] is used for selecting
theindicationmodeofthedisplayor
whenreturningtotheDisplaymode
from either the Quick menu or the
Extend menu mode.
[QUICK MENU] gives access to the
parameters used for the Quick menu.
It is possible to switch between the
Quick menu and the Extend menu
modes.
[EXTEND MENU] gives access to all
parameters. It is possible to switch
between the Extend menu and the
Quick menu modes.
[CHANGE DATA] is used for changing
a setting selected either in the Extend
menu or the Quick menu mode.
[CANCEL] is used if a change of
the selec-ted parameter is not to be
carried out.
[OK] is used for confirming a change
of the parameter selected.
MG.83.A2.02 - VLT is a registered Danfoss trademark
84
