Danfoss VLT AutomationDrive FC 300 Programming Guide

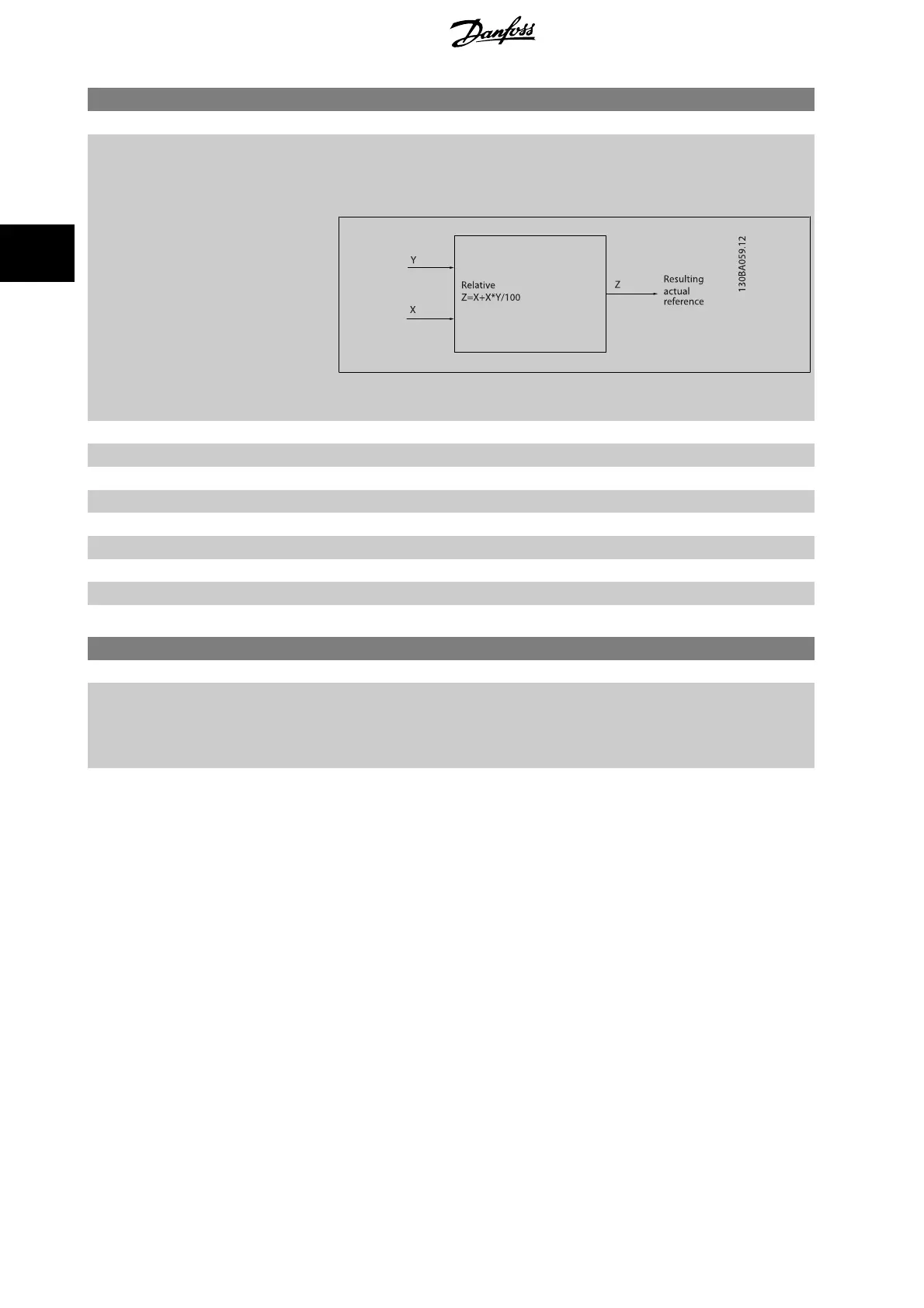

3-18 Relative Scaling Reference Resource
Option: Function:
Select a variable value to be added to the fixed value (defined in par. 3-14 Preset Relative Refer-
ence
). The sum of the fixed and variable values (labelled Y in the illustration below) is multiplied
with the actual reference (labelled X in the illustration below). This product is then added to the
actual reference (X+X*Y/100) to give the resultant actual reference.
This parameter cannot be adjusted while the motor is running.
[0] * No function
[1] Analog input 53
[2] Analog input 54
[7] Frequency input 29
[8] Frequency input 33
[11] Local bus reference
[20] Digital pot.meter
[21] Analog input X30-11
[22] Analog input X30-12
3-19 Jog Speed [RPM]
Range: Function:
Application
dependent*
[Application dependant] Enter a value for the jog speed n
JOG
, which is a fixed output speed. The frequency converter runs
at this speed when the jog function is activated. The maximum limit is defined in par. 4-13
Motor
Speed High Limit [RPM]
.
See also par. 3-80
Jog Ramp Time .
3.5.4 Ramps
3-4* Ramp 1
For each of four ramps (par. 3-4*, par. 3-5*, par. 3-6* and par. 3-7*) configure the ramp parameters: ramp type, ramping times (duration of acceleration
and deceleration) and level of jerk compensation for S ramps.
Start by setting the linear ramping times corresponding to the figures.
3 Parameter descriptions FC 300 Programming Guide
76 MG.33.M8.02 - VLT
®
is a registered Danfoss trademark
3
