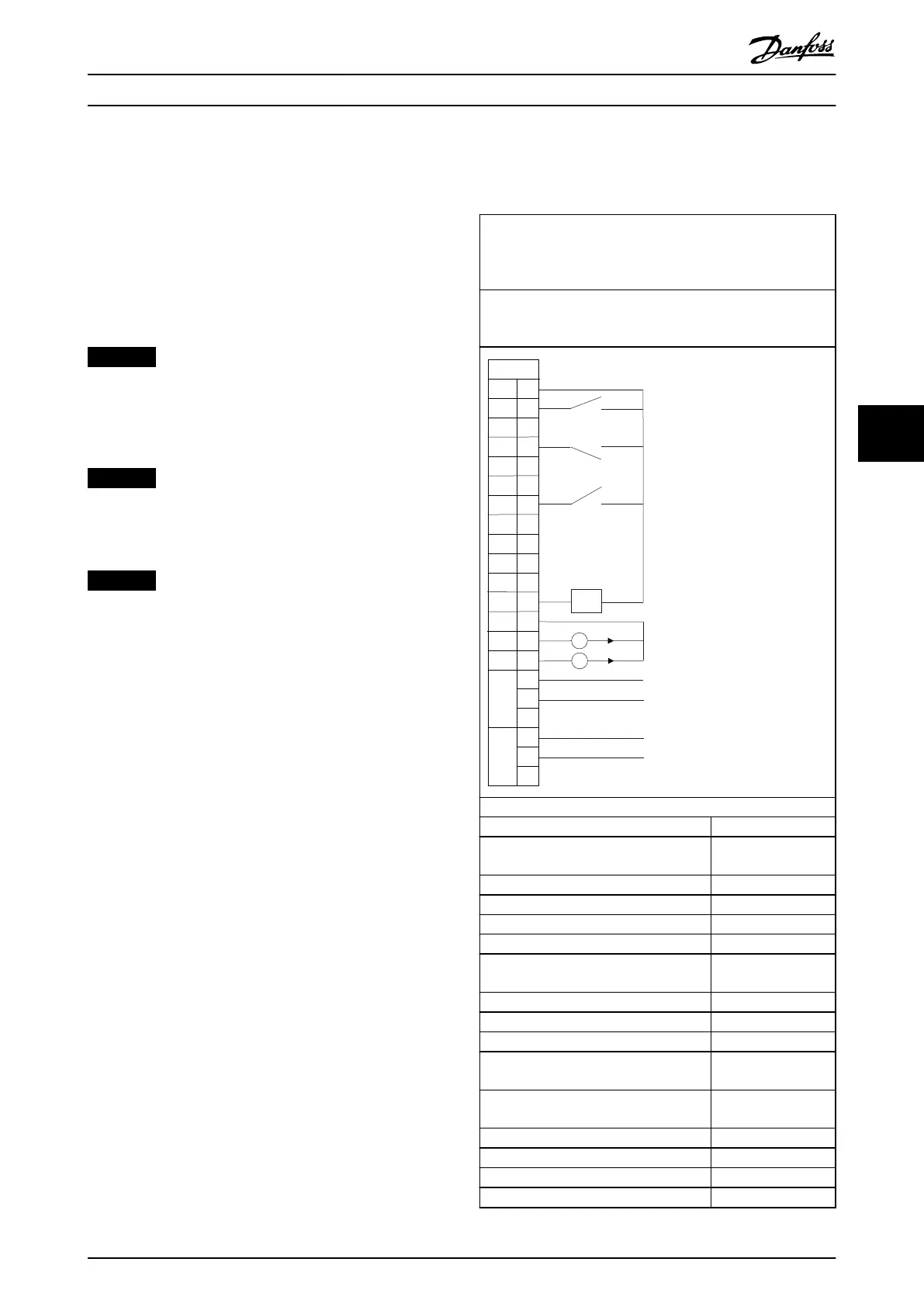

Danfoss VLT AutomationDrive FC 360 User Manual

6 Applications
6.1 Application Selections
Use the selections for quick application set-up of the most
common applications by setting parameter 0-16 Application
Selection. When necessary, the selections can be modied
for individual needs. All selections are for auto-on mode.
NOTICE
When an application is selected, relevant parameters are
automatically set. Customer-specic conguration of all
parameters based on specic requirements is still
possible.
NOTICE
It is recommended to initialize the frequency converter
via parameter 14-22 Operation Mode or 2 nger reset
before setting parameter 0-16 Application Selection.
NOTICE
If any of the applications are selected, relay 1 is set to
[Running] and relay 2 is set to [Alarm] automatically.
Application
Pumps, fans, compressors.
Parameter 0-16 Application Selection is set to [1] Simple Process
Close Loop.
Description
For applications where a value (for example, pressure,
temperature) must be kept at a desired level by sensor feedback.
130BC430.11
+24V 12
DI1 18
DI2 19
DI3 27
DI4 29
DI5 3
2DI6 3
3DI7 3
1
COM 20
+10V 50
AI1 53
- +
AI2 54
COM 55
AO1 4
5AO2 4
2
1
2
3
4
5
6
R1
R2
FC 360
Start
Coast inverse
Jog
4-20
mA
Parameter settings
Parameter Option/value
Parameter 1-00 Conguration Mode [3] Process Closed
Loop
Parameter 1-03 Torque Characteristics [1] Variable Torque
Parameter 3-00 Reference Range [0] Min- Max
Parameter 3-15 Reference 1 Source [0] No Function
Parameter 4-12 Motor Speed Low Limit [Hz] 30.0 Hz
Parameter 4-14 Motor Speed High Limit
[Hz]
50.0 Hz
Parameter 5-10 Terminal 18 Digital Input [8] Start
Parameter 5-12 Terminal 27 Digital Input [2] Coast Inverse
Parameter 5-14 Terminal 32 Digital Input [14] Jog
Parameter 5-40 Function Relay
(Relay 1 Selection)
[5] Running
Parameter 5-40 Function Relay
(Relay 2 Selection)
[9] Alarm
Parameter 6-22 Terminal 54 Low Current 4.0 mA
Parameter 6-23 Terminal 54 High Current 20.0 mA
Parameter 6-29 Terminal 54 mode [0] Current Mode
Parameter 6-70 Terminal 45 Mode [0] 0–20 mA
Applications Quick Guide
MG06A702 Danfoss A/S © 03/2017 All rights reserved. 37
6
6
