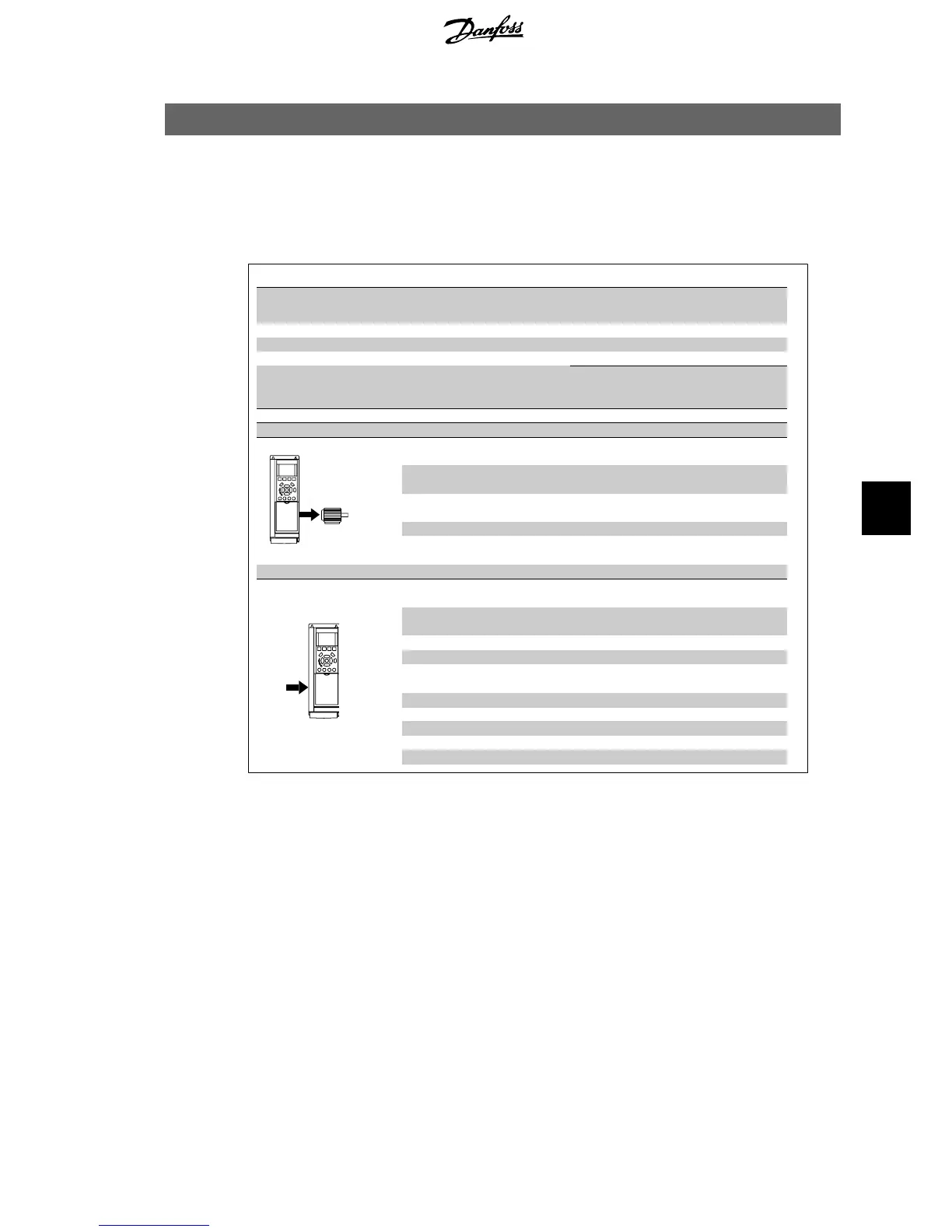

Danfoss VLT HVAC User Manual

8. Specifications
8.1. General Specifications
8.1.1. Mains Supply 3 x 200 - 240 VAC
Normal overload 110% for 1 minute
IP 20 A2 A2 A2 A3 A3
IP 21 A2 A2 A2 A3 A3
IP 55 A5 A5 A5 A5 A5
IP 66
A5 A5 A5 A5 A5
Mains supply 200 - 240 VAC
Frequency converter
Typical Shaft Output [kW]
P1K1
1.1
P1K5
1.5
P2K2
2.2
P3K0
3
P3K7
3.7
Typical Shaft Output [HP] at 208 V
Output current
Continuous
(3 x 200-240 V ) [A]
6.6 7.5 10.6 12.5 16.7
Intermittent
(3 x 200-240 V ) [A]
7.3 8.3 11.7 13.8 18.4
Continuous
kVA (208 V AC) [kVA]
2.38 2.70 3.82 4.50 6.00
Max. cable size:
(mains, motor, brake)
[mm
2
/AWG]
4/10
Max. input current
Continuous
(3 x 200-240 V ) [A]
5.9 6.8 9.5 11.3 15.0
Intermittent
(3 x 200-240 V ) [A]
6.5 7.5 10.5 12.4 16.5
Max. pre-fuses
1)
[A]
20 20 20 32 32
Environment
Estimated power loss
at rated max. load [W]
4)
63 82 116 155 185
Weight enclosure IP20 [kg] 4.9 4.9 4.9 6.6 6.6
Weight enclosure IP21 [kg] 5.5 5.5 5.5 7.5 7.5
Weight enclosure IP55 [kg] 13.5 13.5 13.5 13.5 13.5
Weight enclosure IP 66 [kg] 13.5 13.5 13.5 13.5 13.5
Efficiency
4)
0.96 0.96 0.96 0.96 0.96
VLT
®
HVAC Drive Operating Instructions 8. Specifications
MG.11.A4.02 - 09.10.06. VLT
®
is a registered Danfoss trademark 129
