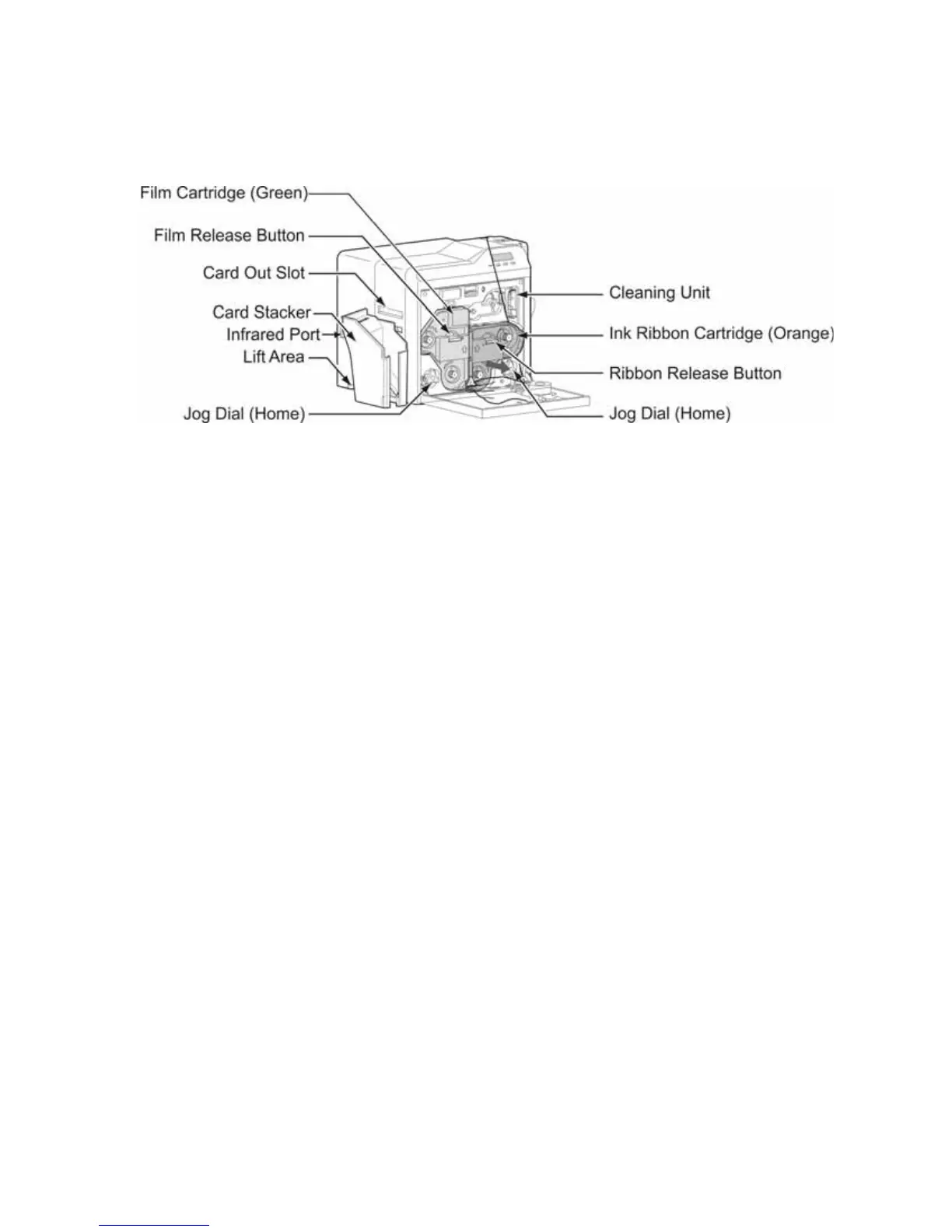

The Inside and Left Side of the Card Printer
FilmCartridge(Green) Holdstheretransferfilm.
FilmReleaseButton Presstoreleaseandremovetheretransferfilmcartridge.
CardOutSlot Aftercardsareprinted,theyexithere.Ifalaminatoris
installed,printedcardsexittheprinterandenterthe
laminatorhere.
CardStacker Ifnolaminatorisused,attachthecardstackerto
the
cardstack erbrackets.Ascardsexittheprinter,they
collectinthecardstacker.
InfraredPort Sendsorreceivesdataviainfraredcommunicationtothe
laminator,ifused.
LiftArea Usethisareatolifttheprinterwhencarryingit.
JogDials(Home) Usetheseremovabledialswhenclearingacardjam.
Return
themtothehomelocationsafteruse.Referto
theproceduresdescribedin“RecoveringfromPrinter
Errors”onpage 86forinstructionsonusingthejogdials.
CleaningUnit Removesdustordebrisfromthecardsbeforeprinting.
InkRibbonCartridge(Orange) Holdstheinkribbon.
RibbonReleaseButton Presstoreleaseandremovetheink
ribboncartridge.
