Datamax M-Class Mark II Maintenance Manual

Removal and Replacement
4-4
4.2.1 Front Panel PCB
Removal:
1. Remove the Front Panel; see Section 4.2.
2. Proceed according to equipped type:

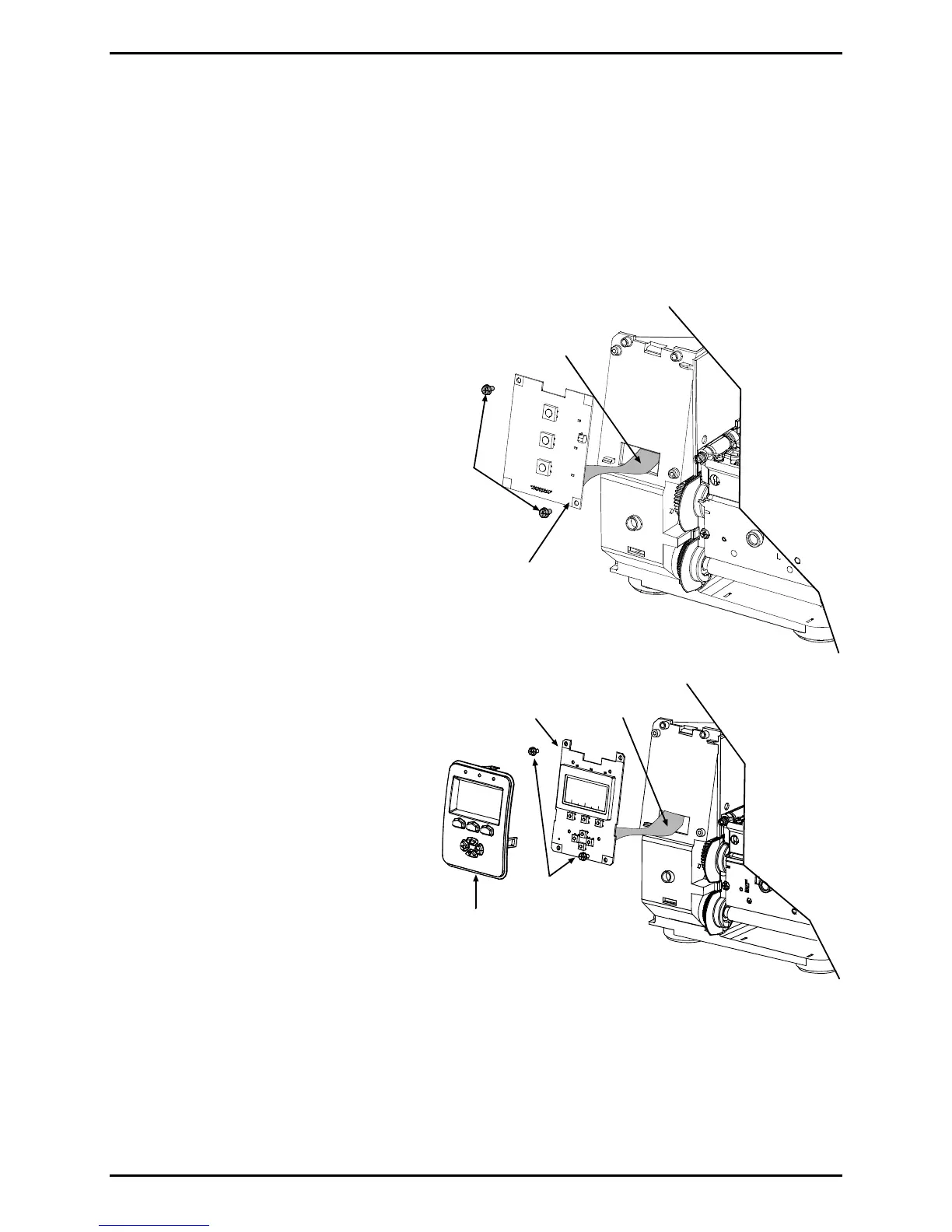

• If servicing a non-display
model, remove the two
Screws that secure the Front
Panel PCB. Disconnect the
Front Panel Cable. Remove
the PCB.
Front Panel
Cable
Screws
Front Panel
PCB
• If servicing a display-
equipped model, lift the tabs
and remove the Bezel.
Remove the two Screws that
secure the Front Panel PCB.
Disconnect the Front Panel
Cable. Remove the PCB.
Front Panel
Cable
Screws
Front Panel
PCB
Front Bezel
Installation:
1. Insert the Front Panel Cable through the opening in the chassis and connect it to the
Front Panel PCB.

Datamax M-Class Mark II Specifications

General

Media Sensor	Adjustable reflective and transmissive sensors
Print Method	Thermal Transfer
Print Resolution	203 dpi
Memory	8 MB Flash, 16 MB SDRAM
Interface Options	USB, Serial, Ethernet, Parallel
Media Type	Roll-fed, die-cut, continuous, fan-fold, tags, ticket stock
Media Width	1.0 in (25.4 mm) to 4.65 in (118 mm)
Media Thickness	0.0025 in (0.0635 mm) to 0.010 in (0.254 mm)
Media Roll Diameter	8 inches (203 mm) max
Ribbon Width	1 to 4.33 inches (25.4 to 110 mm)
Ribbon Length	1968 ft (600 m)
Ribbon Core	1 inch (25.4 mm)
Label Width Range	1.0 in (25.4 mm) to 4.65 in (118 mm)
Label Length Range	0.25 to 39 inches (6.35 to 991 mm)
