5. Replace the screw (M2x3) that secures the wireless-card bracket to the wireless card and palm-rest and keyboard assembly.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Fan
Removing the left fan
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
NOTE: Ensure that your computer is in Service Mode. For more information see, step 6 in Before working inside your
computer.
NOTE: The left fan and right fan have the same specifications.
About this task

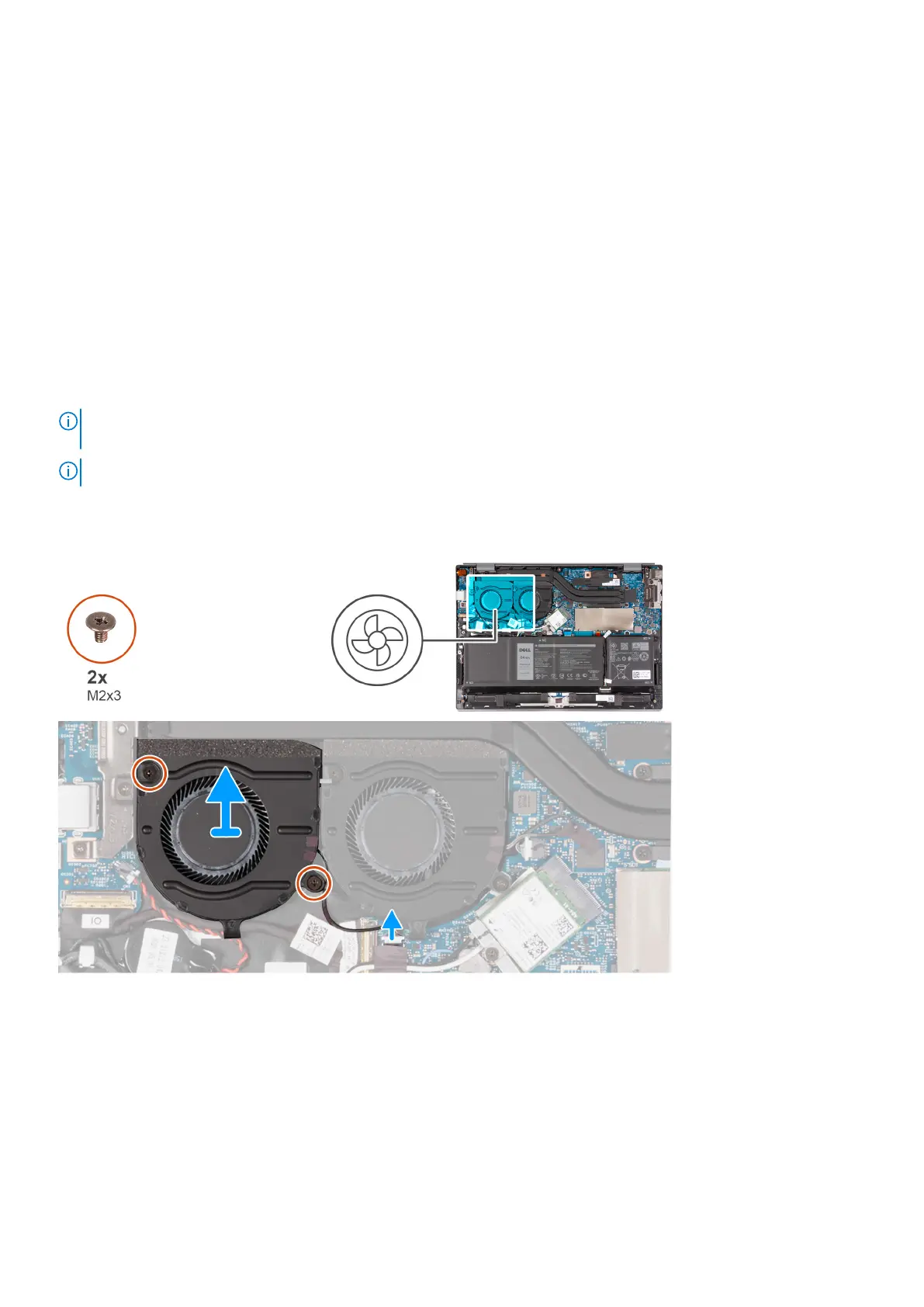

The following image(s) indicate the location of the left fan and provides a visual representation of the removal procedure.
Steps
1. Remove the two screws (M2x3) that secure the left fan to the palm-rest and keyboard assembly.
2. Disconnect the left-fan cable (FAN2) from the system board.
3. Lift the left fan off the palm-rest and keyboard assembly.
22
Removing and installing components
To Next Page
