Steps
After performing the steps in the pre-requisites, you are left with the palm-rest and keyboard assembly.
Installing the palm-rest and keyboard assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

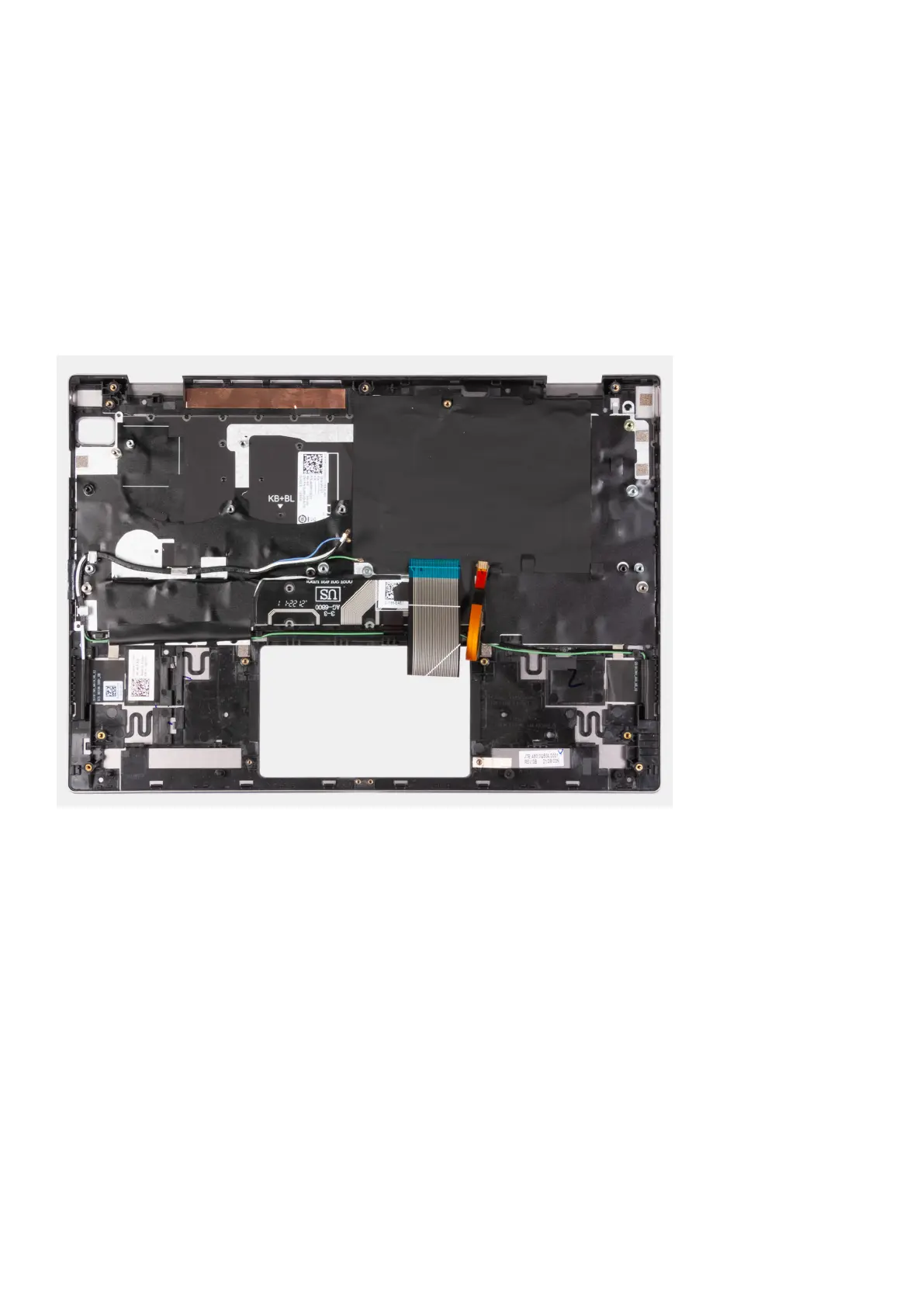

The following image(s) indicate the location of the palm-rest and keyboard assembly and provides a visual representation of the
installation procedure.
Steps
Place the palm-rest and keyboard assembly on a flat and clean surface.
Next steps
1. Install the system board.
2. Install the M.2 2230 solid-state drive or M.2 2280 solid-state drive, as applicable.
3. Install the power button with fingerprint reader.
4. Install the IO board.
5. Install the display assembly.
6. Install the touchpad.
7. Install the coin-cell battery.
8. Install the speakers.
9. Install the right fan.
10. Install the left fan.
11. Install the wireless card.
12. Install the battery.
13. Install the base cover.
14. Follow the procedure in After working inside your computer.
