Steps

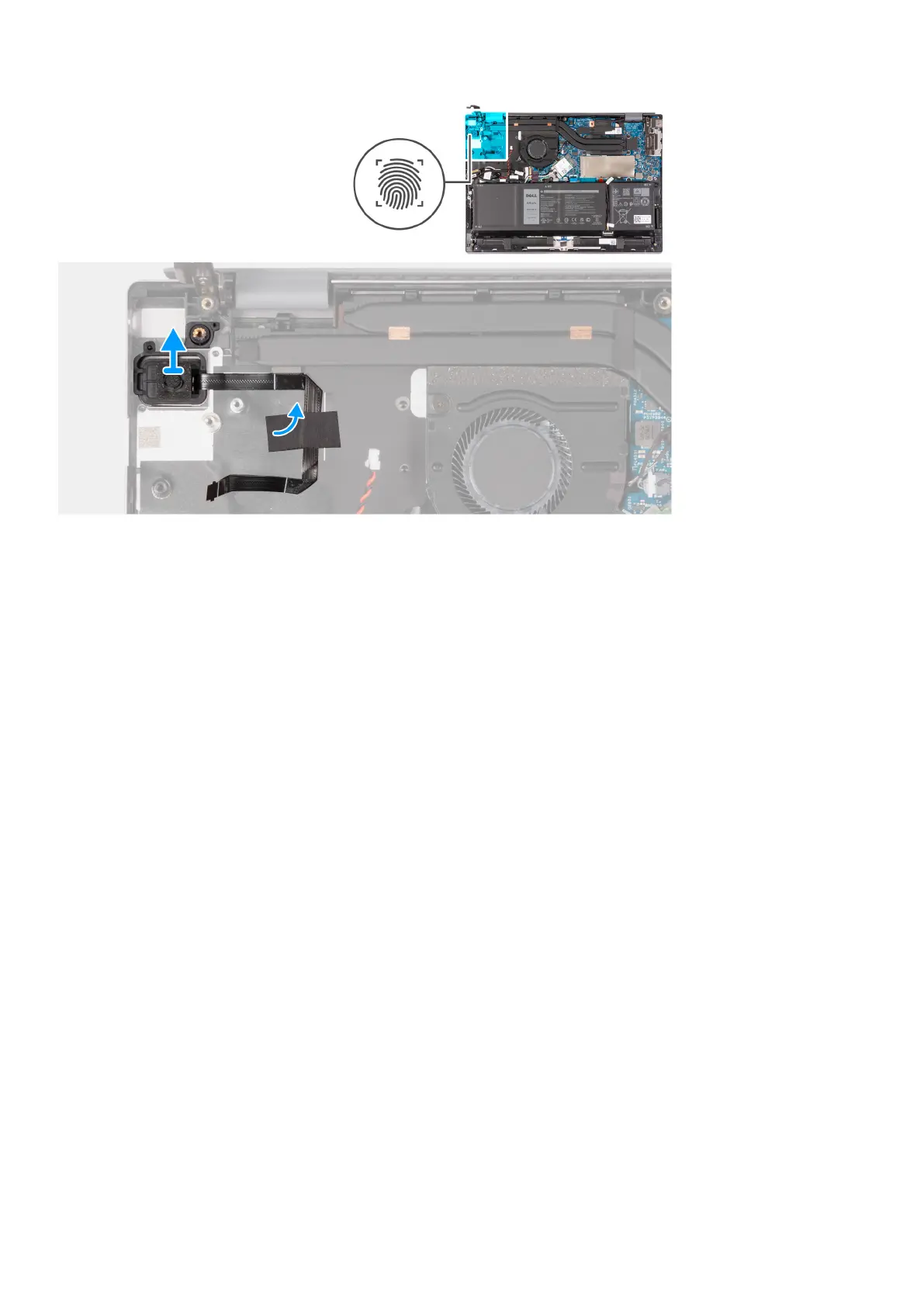

1. Peel the tape that secures the power-button with fingerprint-reader cable to the palm-rest and keyboard assembly.
2. Lift the power-button with fingerprint-reader, along with its cable, off the palm-rest and keyboard assembly.
Installing the power-button with fingerprint reader
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the power-button with fingerprint reader and provides a visual representation of
the installation procedure.
46
Removing and installing components
