Dell 2000FP LCD Monitor Service Guide
Engineering Specification
Confidential
10

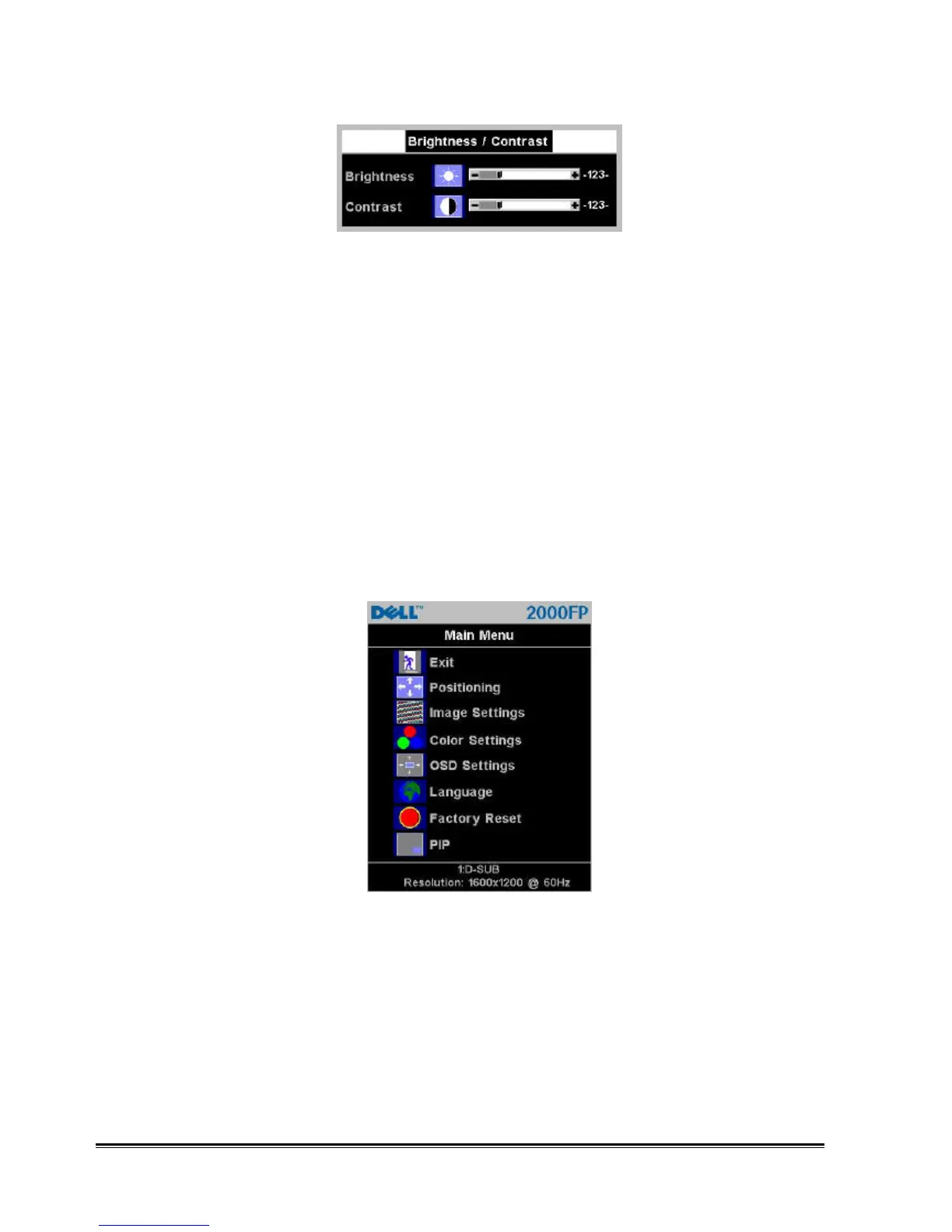

Brightness
The brightness function adjusts the luminance of the backlight in the LCM. With OSD menu off, push the ""
button to display the Brightness (and contrast) adjustment menu. Adjust Brightness first, then adjust Contrast only if
further adjustment is necessary.
Push the + button to increase the luminance;
push the – to decrease luminance (min. 0 ~ max 100).
Contrast
The contrast function adjusts the degree of difference between darkness and lightness on the monitor screen.
With OSD menu off, push the "" button to display the Contrast (and brightness) adjustment menu. For DVI-D input,
the contrast adjustment is disabled.
Push the + button to increase the contrast;
push the – button to decrease the contrast (min. 0 ~ max 100).
Main menu
Press “MENU” key to enter OSD main menu as figured below. The OSD main menu has 8 items including “Exit”,
“Positioning”, “Image Settings”, “Color Settings”, “OSD Settings”, “Language”, “Factory Reset” and “PIP”. The
following pages describe the details of these items.
Positioning
Use "" or "" to select “Positioning” in the main menu and press "MENU" to enter “Positioning” sub-menu.
Use "" or "" to select “Horizontal Position”, “Vertical Position”, and “Zoom” functions. When the selected item
is highlighted, the function is activated. Press "+" or "–" to adjust the “Horizontal Position”, “Vertical Position”, or
“Zoom” of the display.
