Dell 2000FP LCD Monitor Service Guide
Engineering Specification
Confidential
15

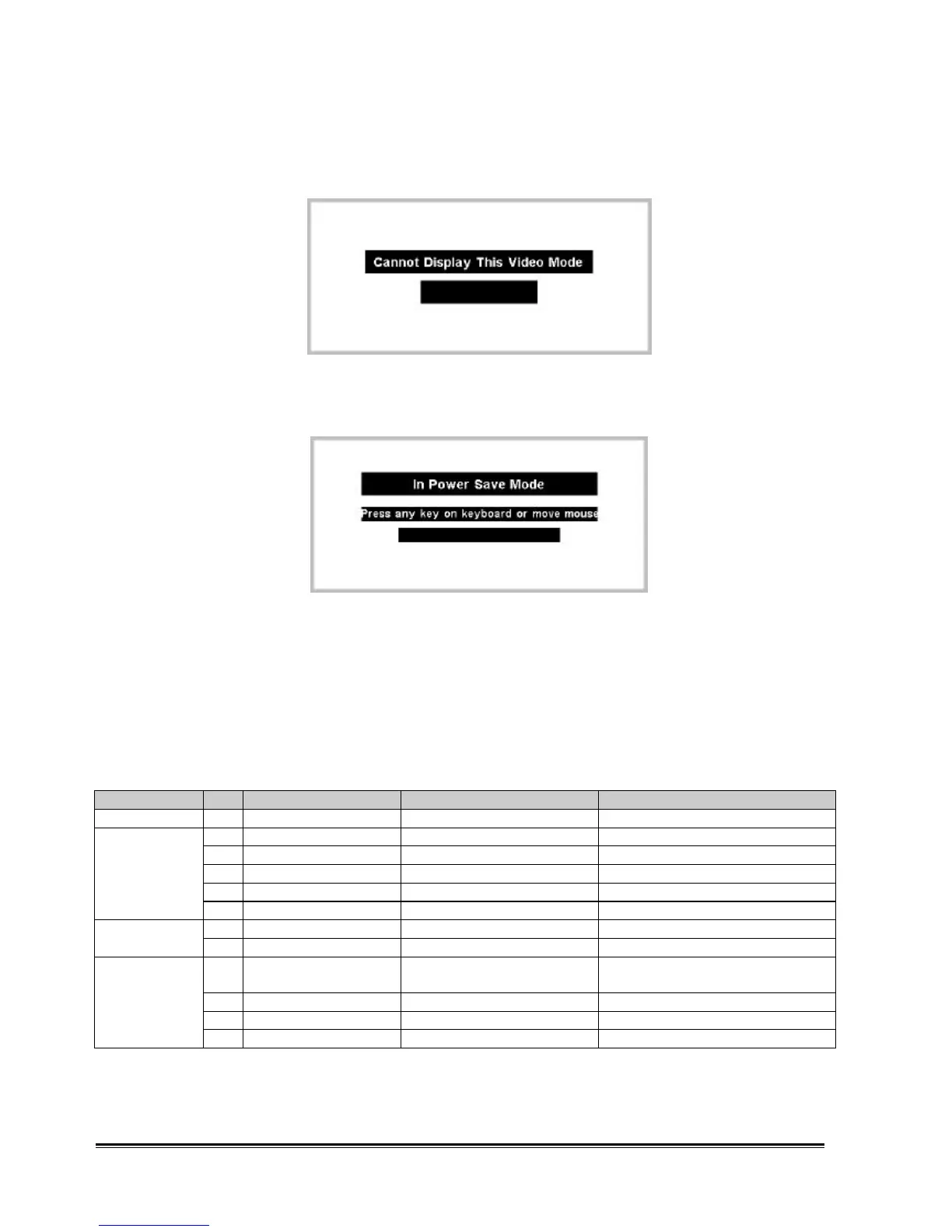

“Cannot Display This Video Mode” message
When the D-sub input pixel clock over 200MHz or the input pixel clock over 162 MHz of DVI-D, it cannot be
displayed, the warning message “Cannot Display This Video Mode” will appear on the screen.
“In Power Save Mode” message
When the computer system is under power saving mode, the monitor will show the message of “In Power Save
Mode” before entering the DPMS mode.
Appendix 6 – Translation List
TBD
Appendix 7 – EDID Content
D-SUB port
Item Byte Description Data Hex Remarks
HEADER 8 00, FF, FF, FF, FF, FF, FF, 00
2 Mfg. Name 10,AC DELL
2 Product Code 02,A0 2000FP
4 Serial Number (varies) 34,33,32,31 4321
1 Mfg. week (varies) 14 20
th
week
Vendor
Product ID
1 Mfg. year (varies) 0B 2001
1 Version 01 1 EDID Version
Revision
1 Revision 03 3
1 Video input 0E 0.7Vpp analog RGB, supports
separate, composite sync and SOG
1 Max Horiz size cm 29 40.8 cm
1 Max Vert size cm 1F 30.6 cm
Basic Display
Parameter and
Features
1 Gamma Value 96 Gamma=2.5

Dell 2000FP Specifications

General

Brand	Dell
Model	2000FP
Category	Monitor
Language	English
