Dell 2000FP User Manual

Dell 2000FP LCD Monitor Service Guide
Engineering Specification
Confidential

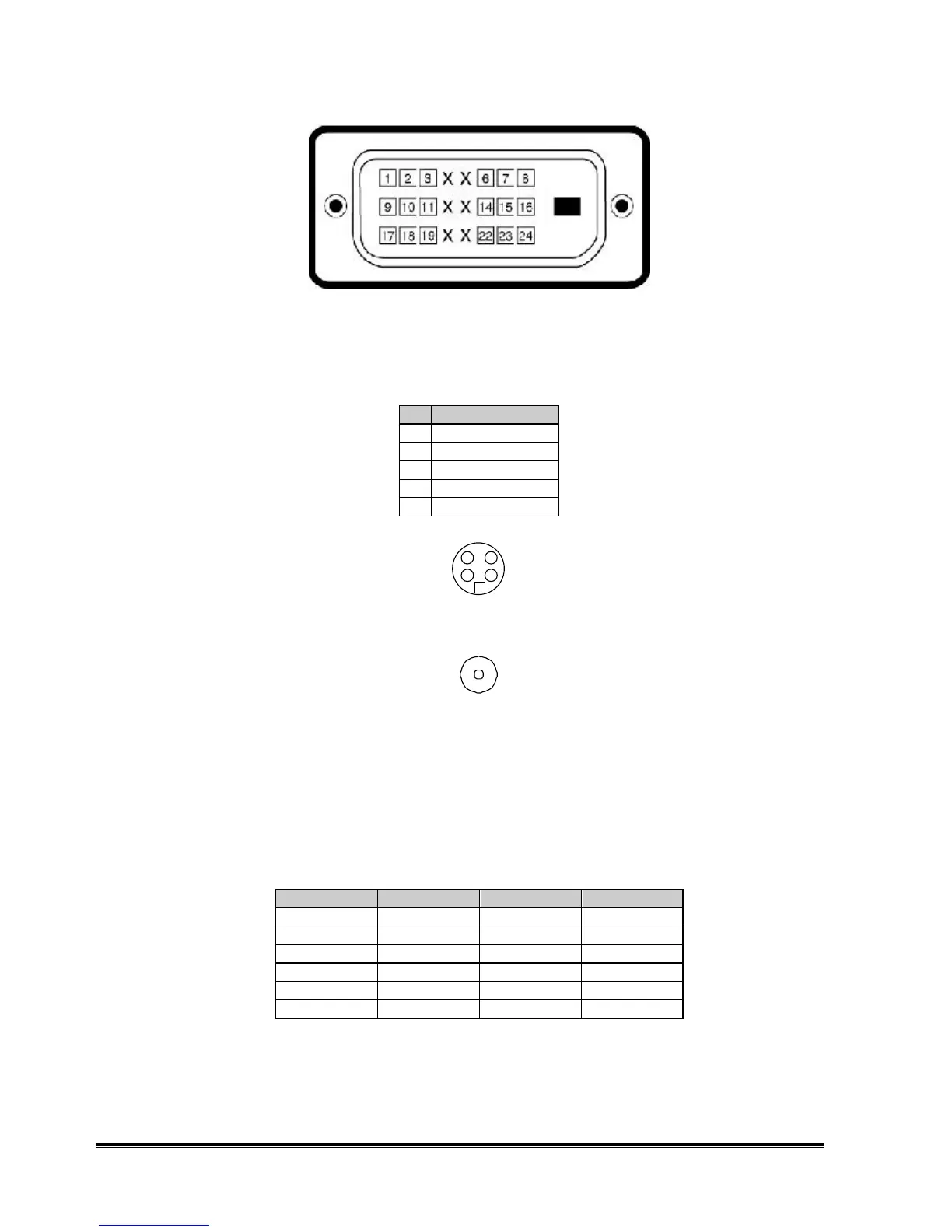

8
24-pins DVI –D female
Video input I: S-VIDEO connector
PIN SIGNAL
1 GND
2 GND
3 LUMA
4 CHROMA
G GND
3 4
2
1
G
4-pin S-VIDEO female
Video input II: COMPOSITE video connector
RCA jack
Appendix 2 – Labels and Markings
Refer to RN-315
Appendix 3 – Preset Mode Timings
Resolution @ 60 Hz @ 70 Hz @ 75 Hz
640 × 480 P P
720 × 400 P
800 × 600 P P
1024 × 768 P P
1280 × 1024 P P
1600 × 1200 P

Dell 2000FP Specifications

General

Brand	Dell
Model	2000FP
Category	Monitor
Language	English
