Installing the battery
1 Insert the battery into the slot on the computer.
2 Connect the battery cable to the connector on the battery.
3 Tighten the M2.0xL3 screws to secure the battery to the computer.
4 Install the base cover
5 Follow the procedure in After working inside your computer.
Heat sink
Removing the heatsink
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a microSD card
b base cover
c battery

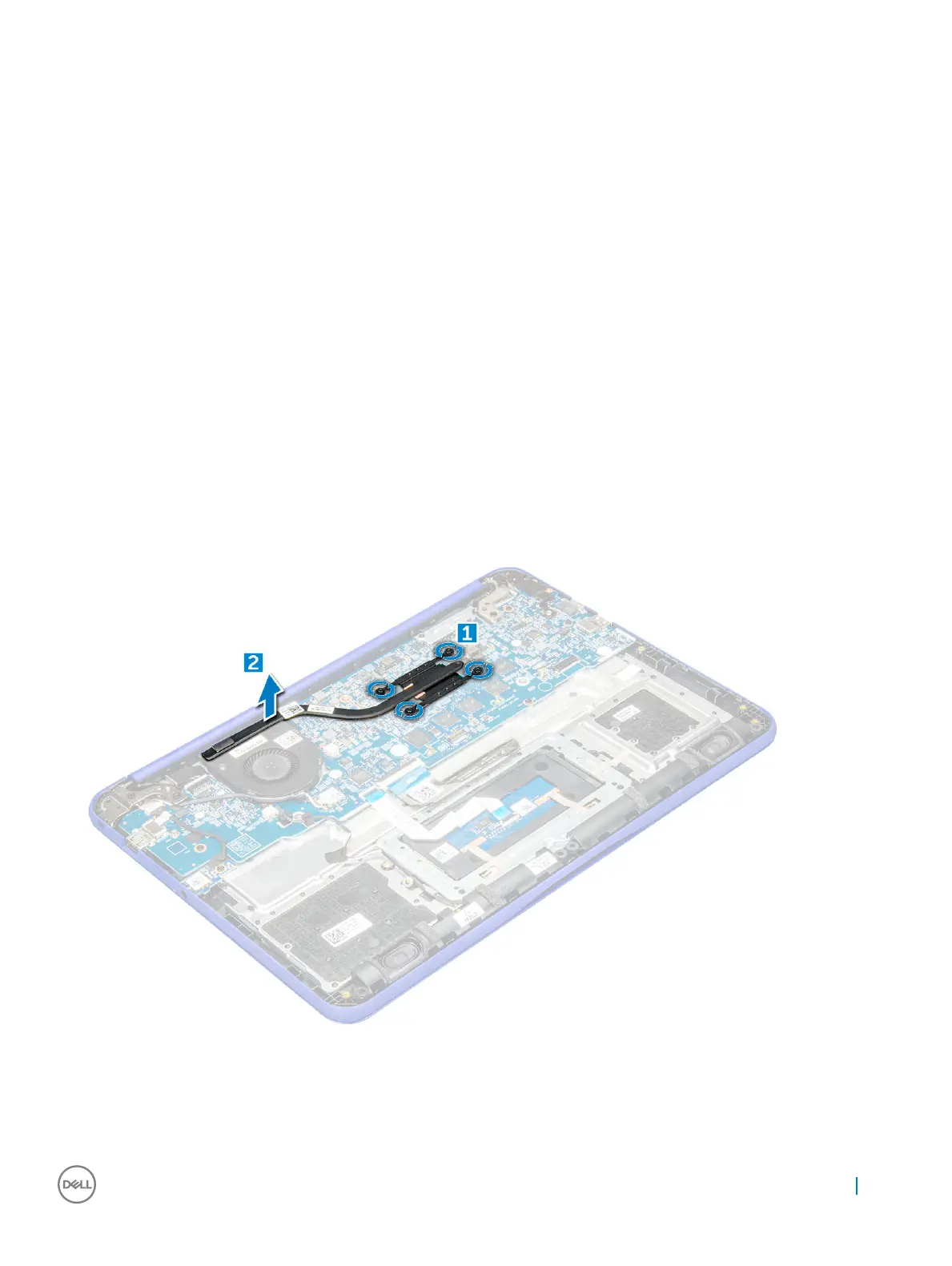

3 To remove the heatsink:
a Remove the M2.5x2.5 screws that secure heat sink to the computer [1].
b Lift the heatsink away from the computer [2].
Removing and installing components
11
