Installing the heatsink
1 Insert the heatsink into the slot on the computer.
2 Tighten the M2.5x2.5 screws to secure the heatsink to the computer.
3 Install the:
a battery
b base cover
c microSD card
4 Follow the procedure in After working inside your computer.
System Fan
Removing the system fan
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a microSD card
b base cover
c battery
3 To remove the system fan:

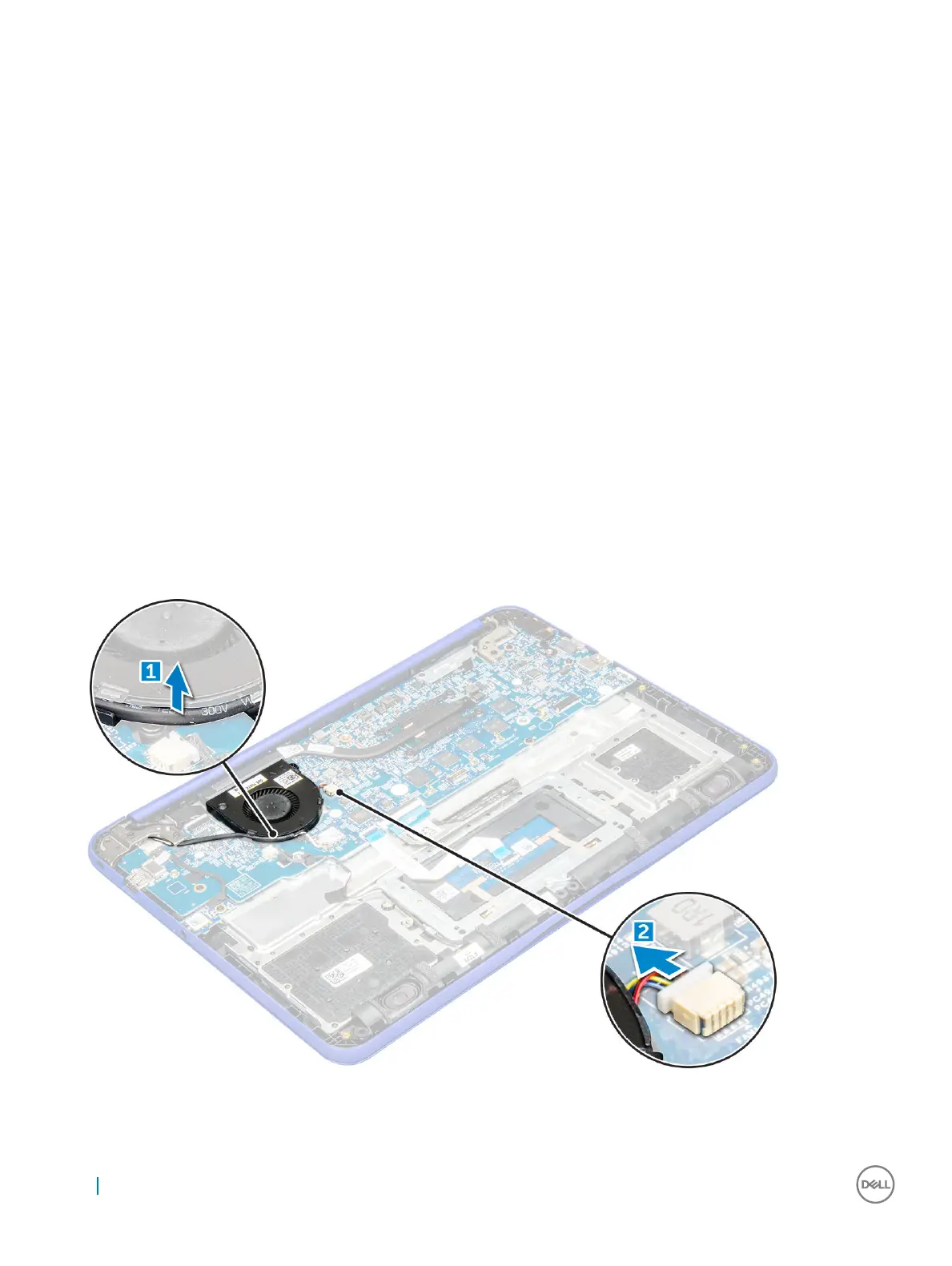

a Unroute the WLAN cable from the routing on the system fan [1].
b Disconnect the fan cable from the connector on the system board [2].
4 Remove the M2xL3 screws that secure the fan to the system board [1].
5 Lift the system fan o the system board [3].
12
Removing and installing components
To Next Page
