Installing LCD Bezel

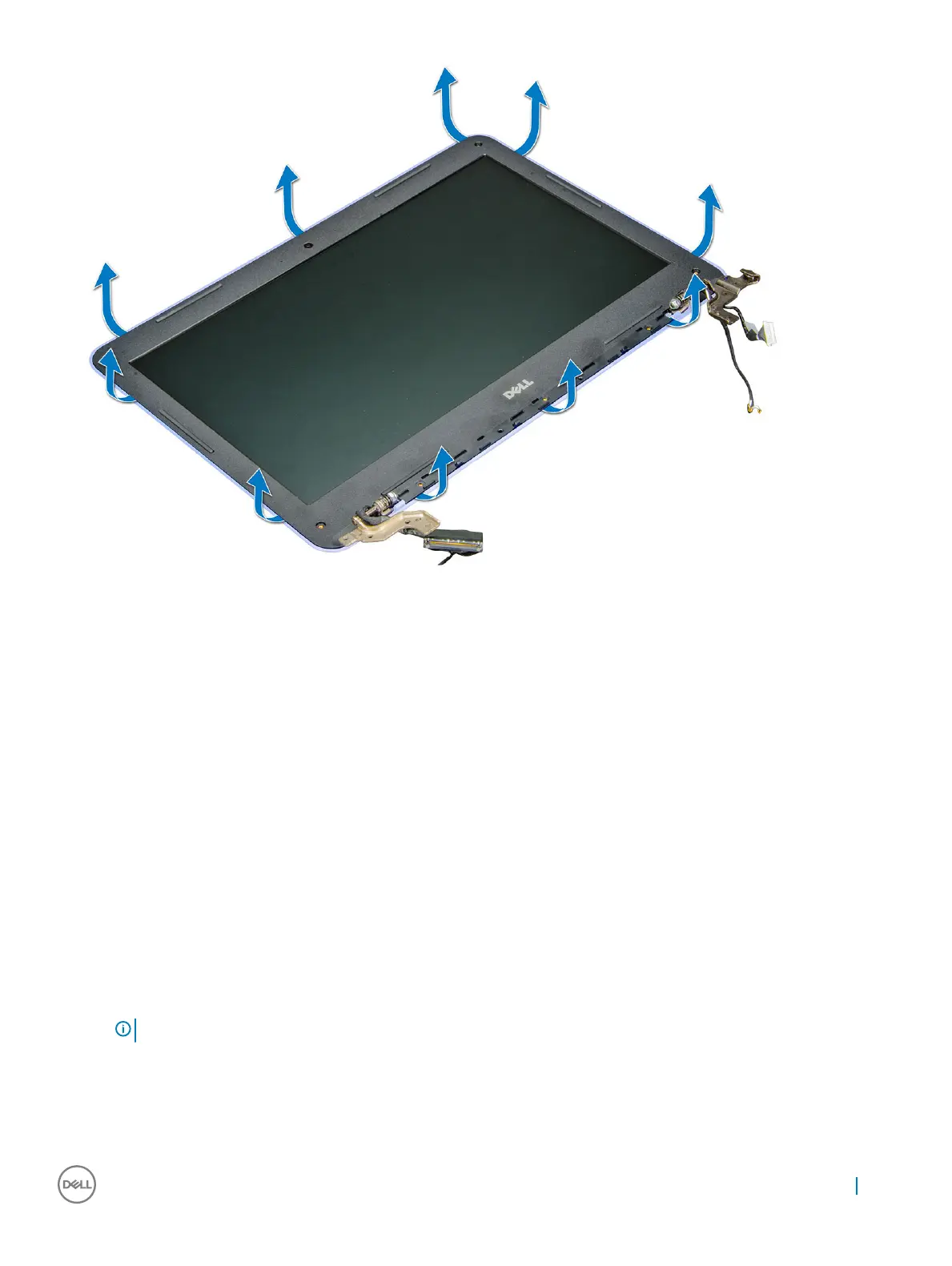

1 Replace the bezel and gently press on the edges to snap the bezel into place.
2 Tighten the screws to secure the LCD bezel to the cover of the computer.
3 Install the:
a hinge cap
b display assembly
c battery
d base cover
e microSD card
4 Follow the procedure in After working inside your computer
LCD Panel
Removing the LCD Panel
1 Follow the procedure in Before working inside your computer.
NOTE
: These instructions are applicable only for systems with a non-touch screen display.
2 Remove the:
a microSD
b base cover
c battery
d display assembly
Removing and installing components
29
