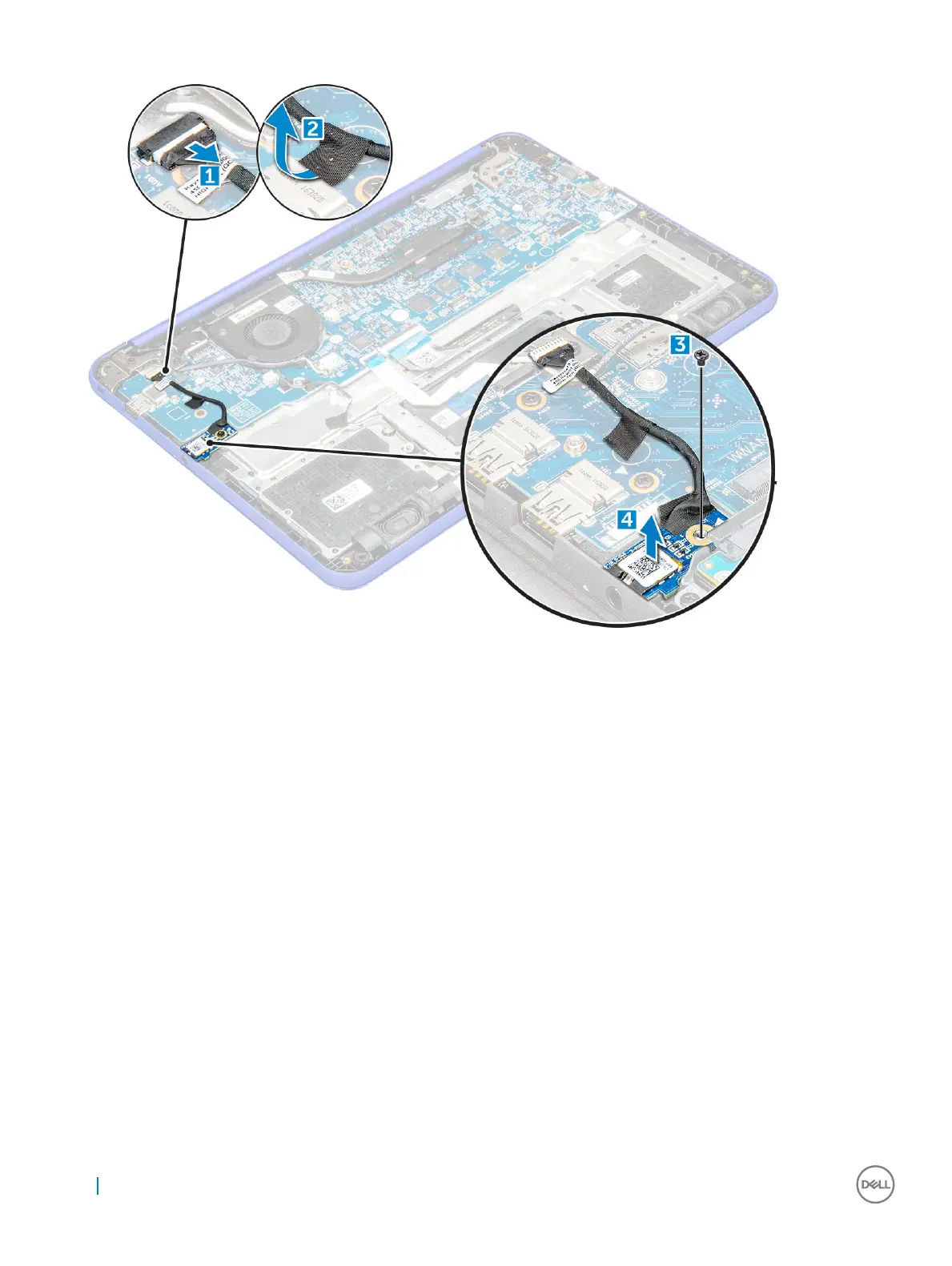

d Lift and remove the audio board from the system [4].
Installing the audio board
1 Place the audio board in its place on the computer.
2 Tighten the M2xL3 screw to secure the audio board to the computer.
3 Ax the cable adhesive to the computer.
4 Reconnect the audio board cable to its connector on the system board.
5 Install the:
a battery
b base cover
c microSD card
6 Follow the procedure in After working inside your computer.
Speakers
Removing the speakers
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a microSD card
b base cover
c battery
14
Removing and installing components
