Dell Dimension 2400 Series User Manual

Removing and Installing Parts 51

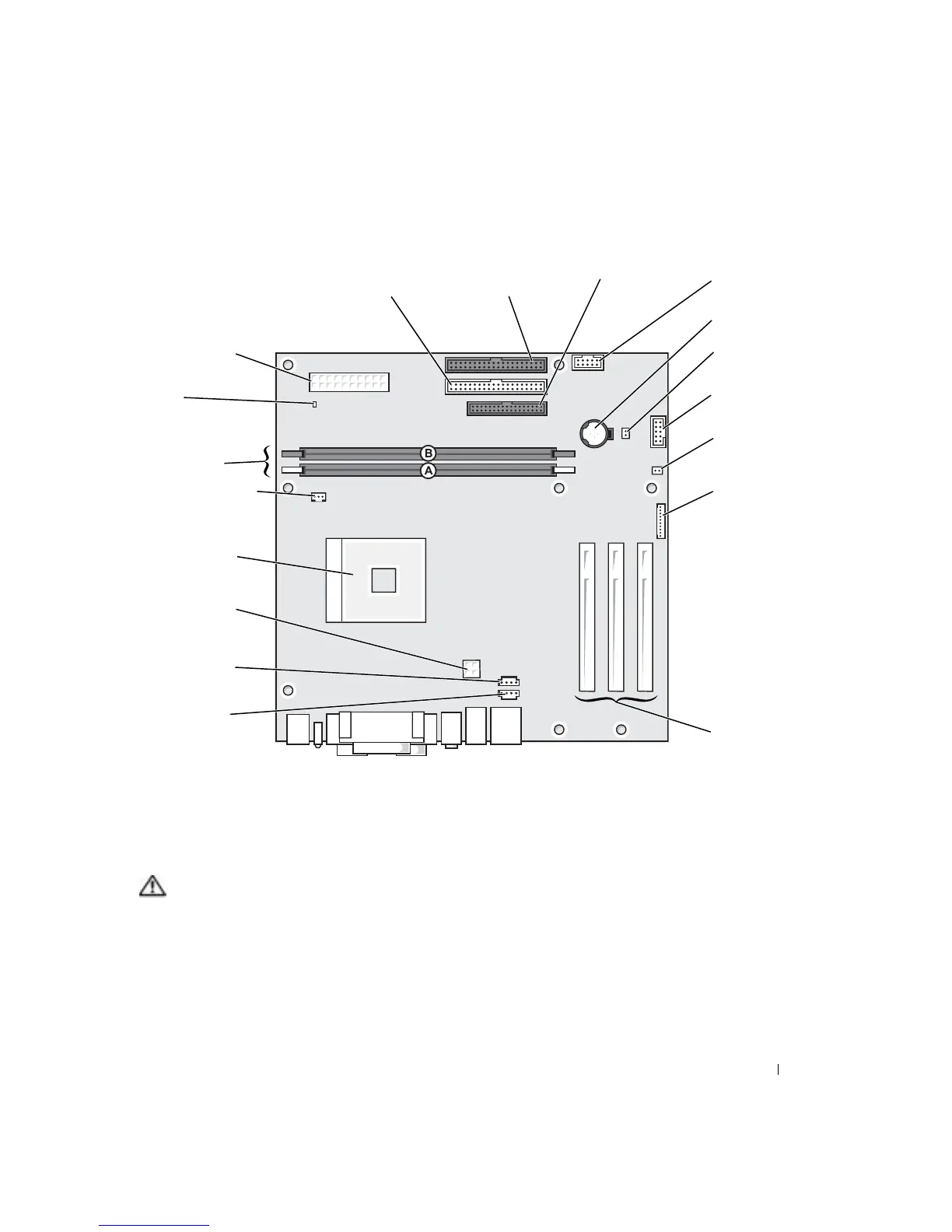

System Board Components
Adding Cards
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product Information Guide.
1
Shut down the computer through the Start menu (see page 18).
2 Ensure that your computer and attached devices are turned off. If your computer and
attached devices did not automatically turn off when you shut down your computer, turn
them off now.
memory module
connectors
(DDR1, DDR2)
floppy drive
connector
(J18)
CD drive
connector (J20)
main power
connector (J21)
microprocessor
connector (U16)
fan connector (J30)
modem telephony
connector (J25)
back of computer
12-V power
connector (J10)
hard drive
connector (J23)
battery socket (BT1)
control panel
connector (J28)
password
jumper (JP1)
PCI card slots (3)
(PCI1, PCI2, PCI3)
CMOS jumper (JP2)
front-panel I/O
connector (J27)
CD audio
connector (J8)
power indicator
(LED1)
front-panel audio
connector (J29)

Dell Dimension 2400 Series Specifications

General

Chipset	Intel 845GV
Memory	Up to 2GB DDR SDRAM
Hard Drive	Up to 80GB
Optical Drive	CD-ROM, CD-RW, or DVD-ROM
Graphics	Integrated Intel Extreme Graphics
Audio	Integrated Audio
Network	10/100 Ethernet
Expansion Slots	3 PCI slots
Operating System	Windows XP Home or Professional
Processor	Intel Celeron or Intel Pentium 4
Processor Speed	Up to 2.8 GHz
Ports	Parallel, Serial, VGA, USB 2.0
Weight	Approx. 22 lbs
