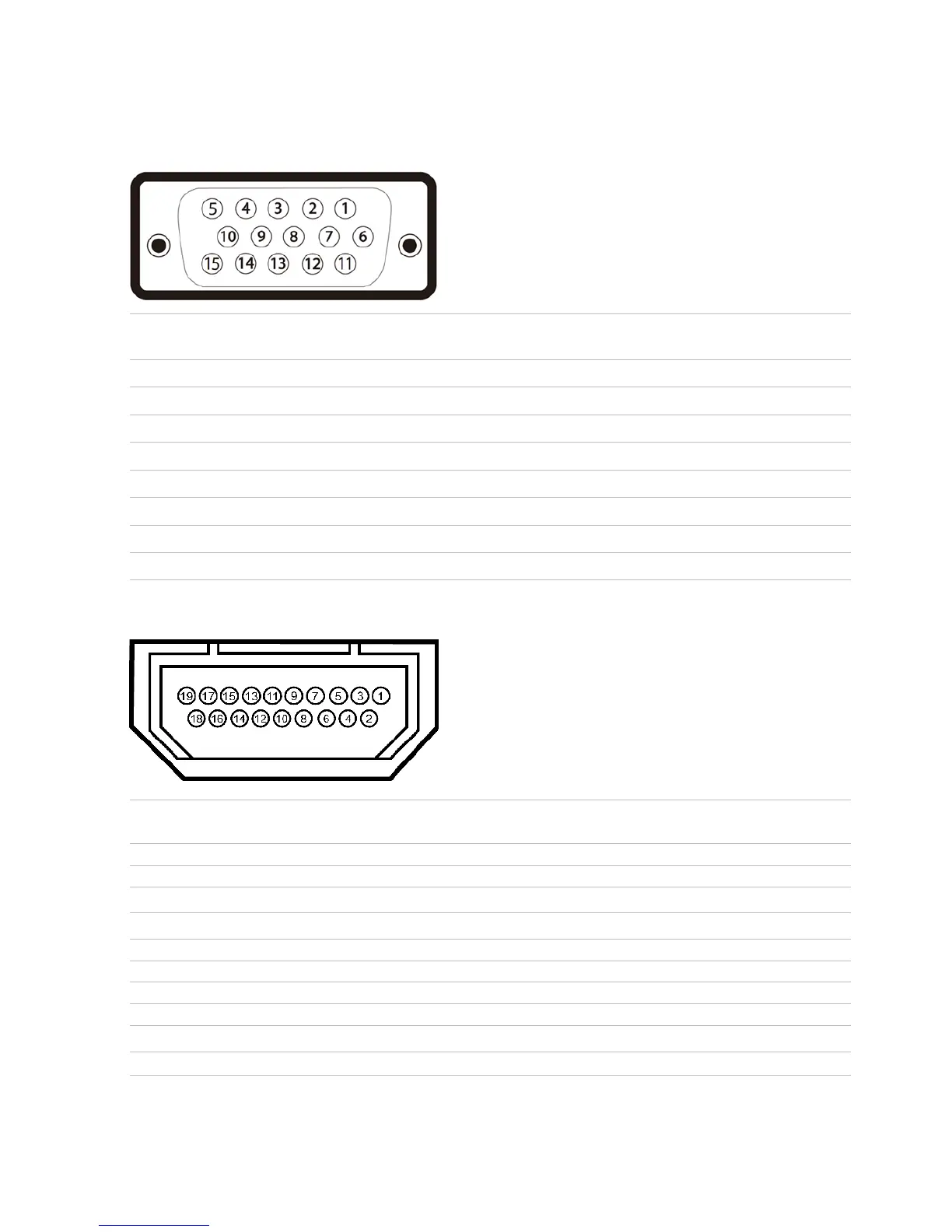

Pin Assignments
VGA
Pin 15-pin Side of the Pin 15-pin Side of the
Number Connected Signal Cable Number Connected Signal Cable
1 Video-Red 9 Computer 5 V/3.3 V
2 Video-Green 10 GND-sync
3 Video-Blue 11 GND
4 GND 12 DDC data
5 Self-test 13 H-sync
6 GND-R 14 V-sync
7 GND-G 15 DDC clock
GND-B
HDMI
Pin 19-pin Side of the monitor Pin 19-pin Side of the monitor
Number connector Number connector
1 TMDS Data 2+ 11 TMDS Clock Shield
2 TMDS Data 2 Shield 12 TMDS Clock-
3 TMDS Data 2- 13 Floating
4 TMDS Data 1+ 14 Floating
5 TMDS Data 1 Shield 15 DDC Clock (SDA)
6 TMDS Data 1- 16 DDC Data (SDA)
7 TMDS Data 0+ 17 Ground
8 TMDS Data 0 Shield 18 +5 V Power
9 TMDS Data 0- 19 Hot plug detect
TMDS Clock
About Your Monitor  15
10

Dell E2014T Specifications

General

Pixel pitch	0.27 x 0.27 mm
Aspect ratio	16:9
Screen shape	Flat
Response time	2 ms
Display diagonal	19.5 \
Touchscreen type	Tabletop
Display brightness	225 cd/m²
Display resolution	1600 x 900 pixels
Display technology	LED
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	8000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Display diagonal (metric)	49.4 cm
Viewing angle, horizontal	170 °
Certification	EPEAT Gold\\r TCO
Product color	Black
Display viewable area (HxV)	432.00 x 432.00 mm
Dimensions (W x D x H) with stand	505.9 x 165 x 376 mm
Cables included	AC, HDMI, USB
Tilt angle range	5 - 31 °
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	16 W
USB upstream port type	USB Type-B
USB Type-A downstream ports quantity	2
Package weight	6070 g
Sustainability certificates	ENERGY STAR
NVIDIA G-SYNC	No

Weight and Dimensions

Depth (with stand)	165 mm
Width (with stand)	505.9 mm
Height (with stand)	376 mm
Weight (with stand)	4890 g
Depth (without stand)	51.7 mm
Height (without stand)	311.2 mm
Weight (without stand)	3430 g
