The previous figure shows the fixed four 40GbE data ports (ports 48, 52, 56, and 60) and the four slots for pluggable modules on the
S5000 I/ O panel. You can also use the 40GbE ports in 4 × 10GbE mode.
The S5000 supports the following possible modules:
• 12-Port Ethernet Module (1G/10G speeds) (slot 0, 1, 2, or 3)
• 12-Port FC/Ethernet Universal Module (2G/4G/8G/10G speeds).
The valid slot numbers are stack-unit numbers (from 0 to 11). The valid port numbers for each interface type are:
• 1GbE: Ports 0 to 47
• 10GbE: Ports 0 to 63
• 40GbE: Ports 48, 52, 56, and 60
• Fibre Channel: Ports 0 to 11
• Management: Port 0
System Status
You can view S5000 status information in several ways, including LEDs and through the CLI show commands and with simple network
management protocol (SNMP).
For more information about these options, refer to the Dell Networking OS Command Line Reference Guide and Dell Networking OS
Configuration Guide for the S5000 Switch.
As shown in the following figure, the S5000 includes LED displays on the I/O and Utility side of the chassis. When the S5000 powers up
or reloads, the status LED on the power supplies are solid green. The following table lists the LED definitions for the S5000 system.

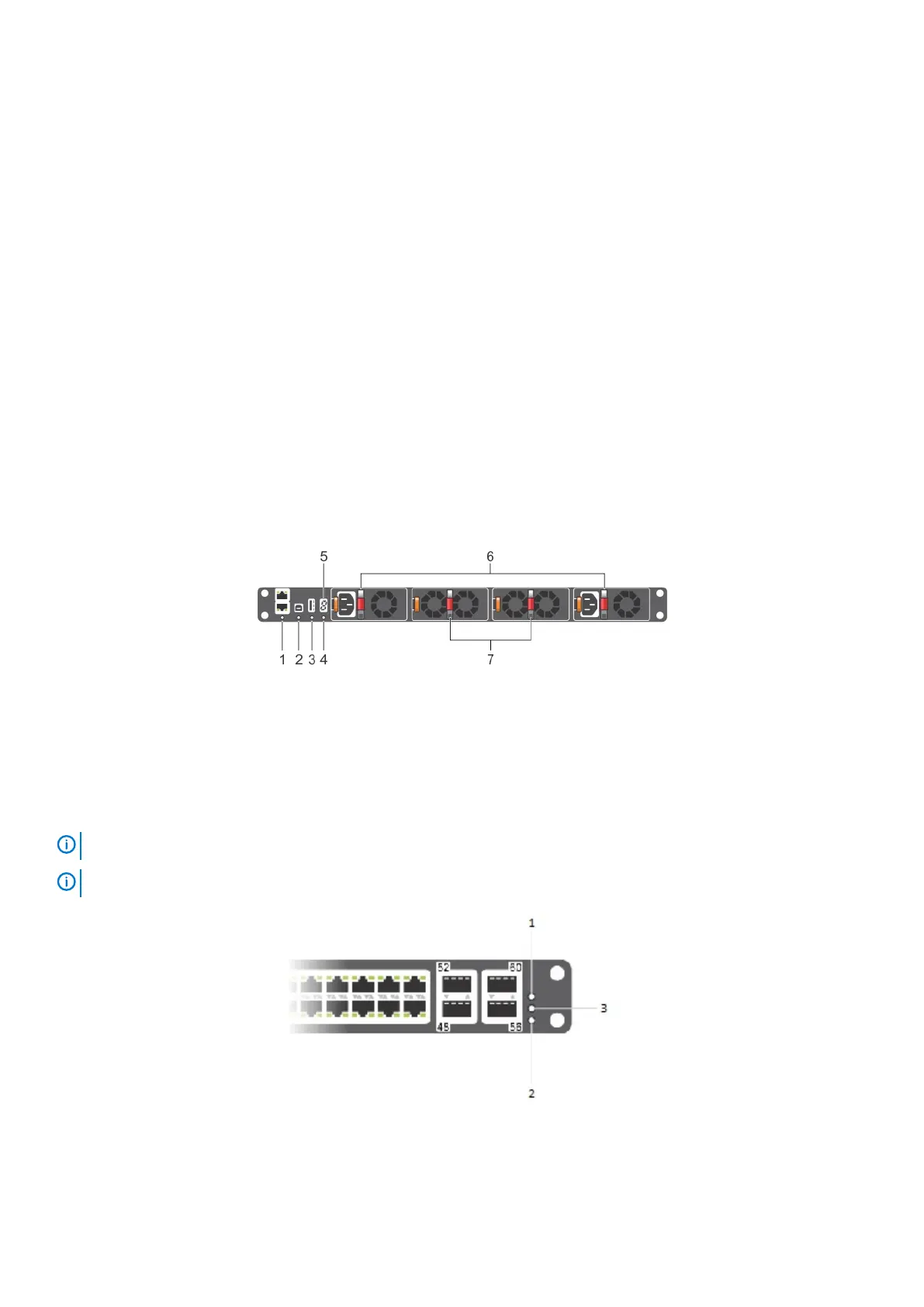

Figure 5. System LEDs (Utility Panel) (AC Power Supplies installed)
1.
Locator beacon LED 2. Alarm LED
3. System status LED 4. Master LED
5. Seven–segment display to identify Stack ID 6. PSU status LED
7. Fan status LED
NOTE: For AC PSUs, an illuminated translucent handle indicates the power status.
NOTE: For DC PSUs, the power status LED is on the upper-left corner.
Figure 6. System LEDs (I/O Panel)
1. Locator beacon LED
2. Alarm LED
Hardware Overview
11
