Dell EMC S5000 User Manual

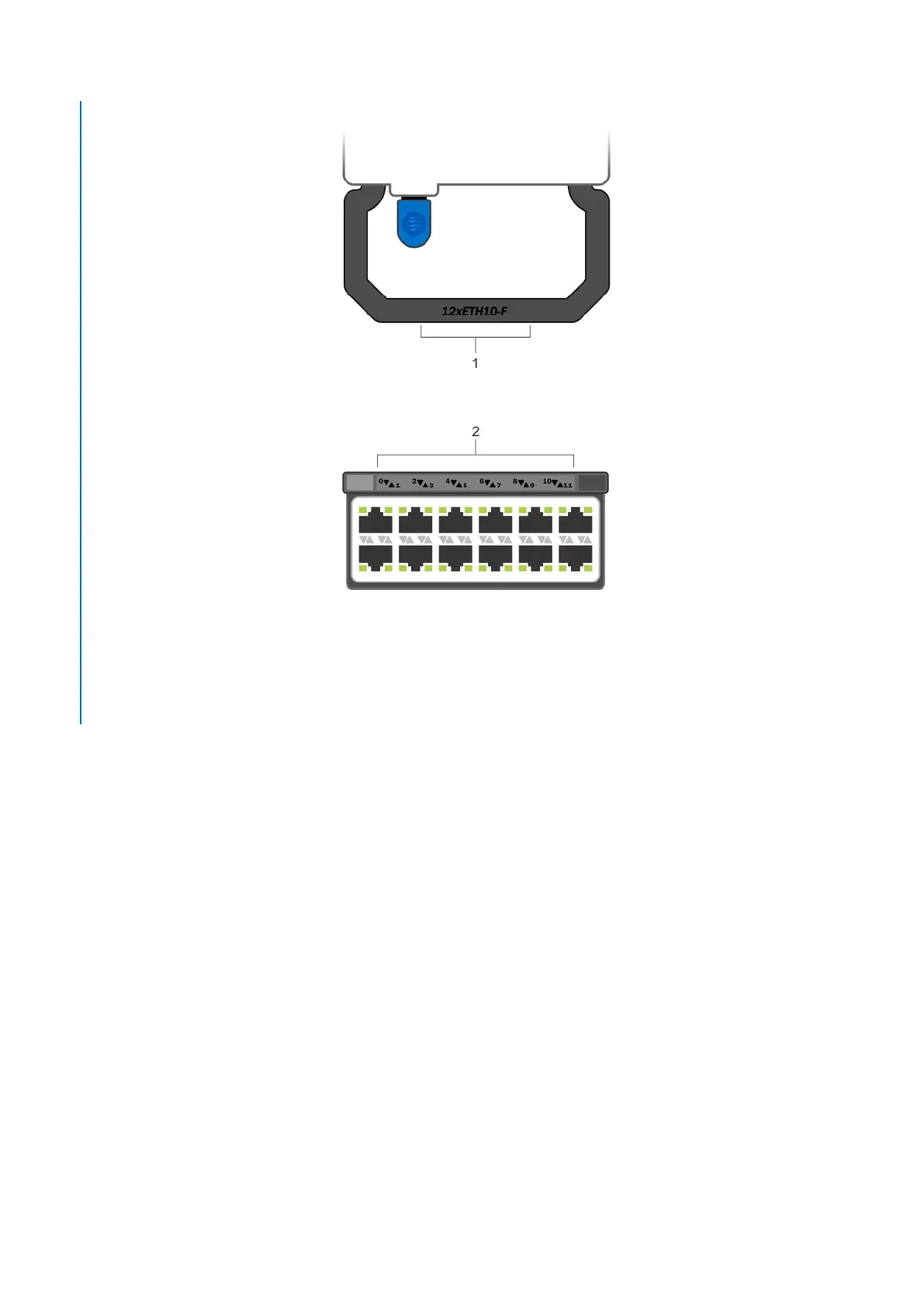

Figure 11. Part name and Port number on the Ethernet Module Handle
1. Part Name
2. Port Number
Installing an Ethernet Module
1. Use the grab handle on the Ethernet module to slide it into the switch module slot.
2. Connect any network interface cables to the attached module.
Installation
19
