Steps

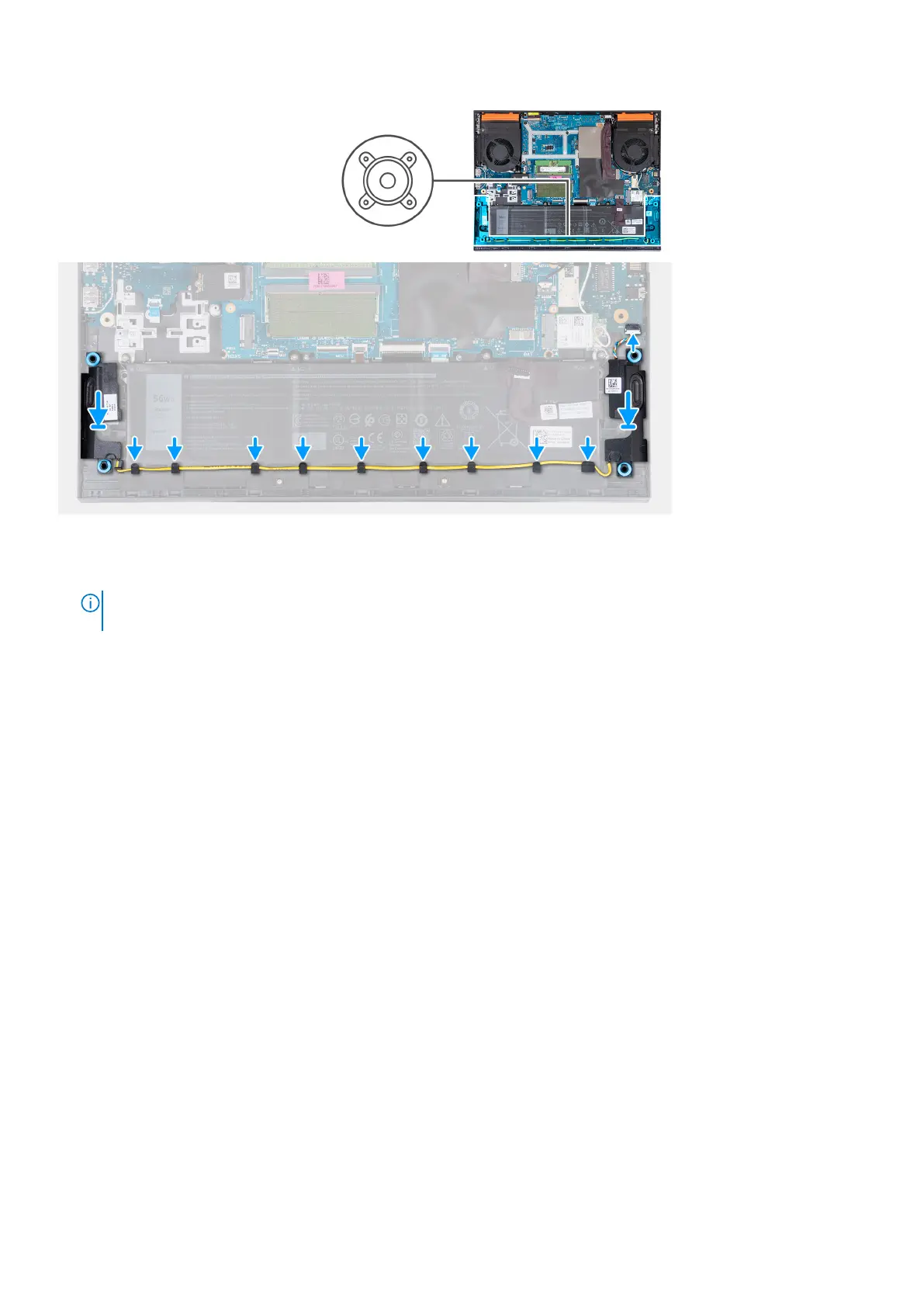

1. Using the alignment posts and rubber grommets, place the speakers in the slots on the palm-rest and keyboard assembly
NOTE:
If the rubber grommets are pushed out of the speakers when removing the speakers, push them back in place
before replacing the speakers.
2. Connect the speaker cable to the ethernet and audio board.
3. Route the speaker cable through the routing guides on the palm-rest and keyboard assembly.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Rear cover
Removing the rear cover
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image indicates the location of the rear cover and provides a visual representation of the removal procedure.
Removing and installing Customer Replaceable Units (CRUs)
49
